Battery installation – Fisher-Price LIL'QUAD J7825 User Manual
Page 12
7
6
5
12

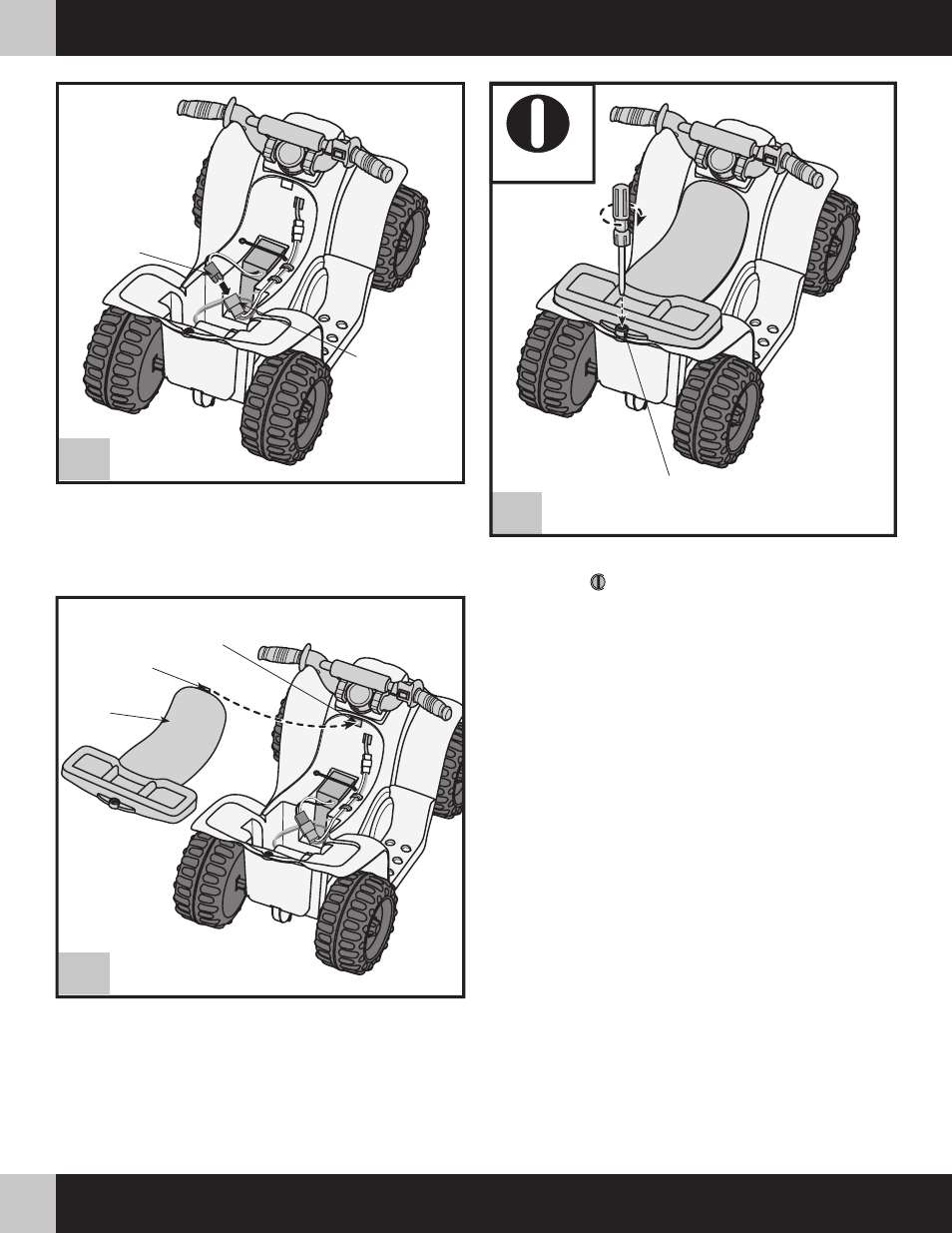

BATTERY INSTALLATION
J4030pr-0920
12
H
J7825pr-0920
Motor
Connector
Battery
Connector
• Plug the battery connector into the motor connector.
Hint: If the battery connector will not plug into the motor connector,
turn it over and try again! Do not force the battery connector into
the motor connector.
Lock Fastener
• Using a slotted screwdriver, turn the lock fastener 1/4 turn to the
locked position .
IMPORTANT! Always remember to keep the lock fastener locked at all
times to prevent children from accessing the battery.
Slot
Seat
Seat Tab
• Insert the front tab on the seat into the slot in the vehicle.
Locked
