Assembly
16

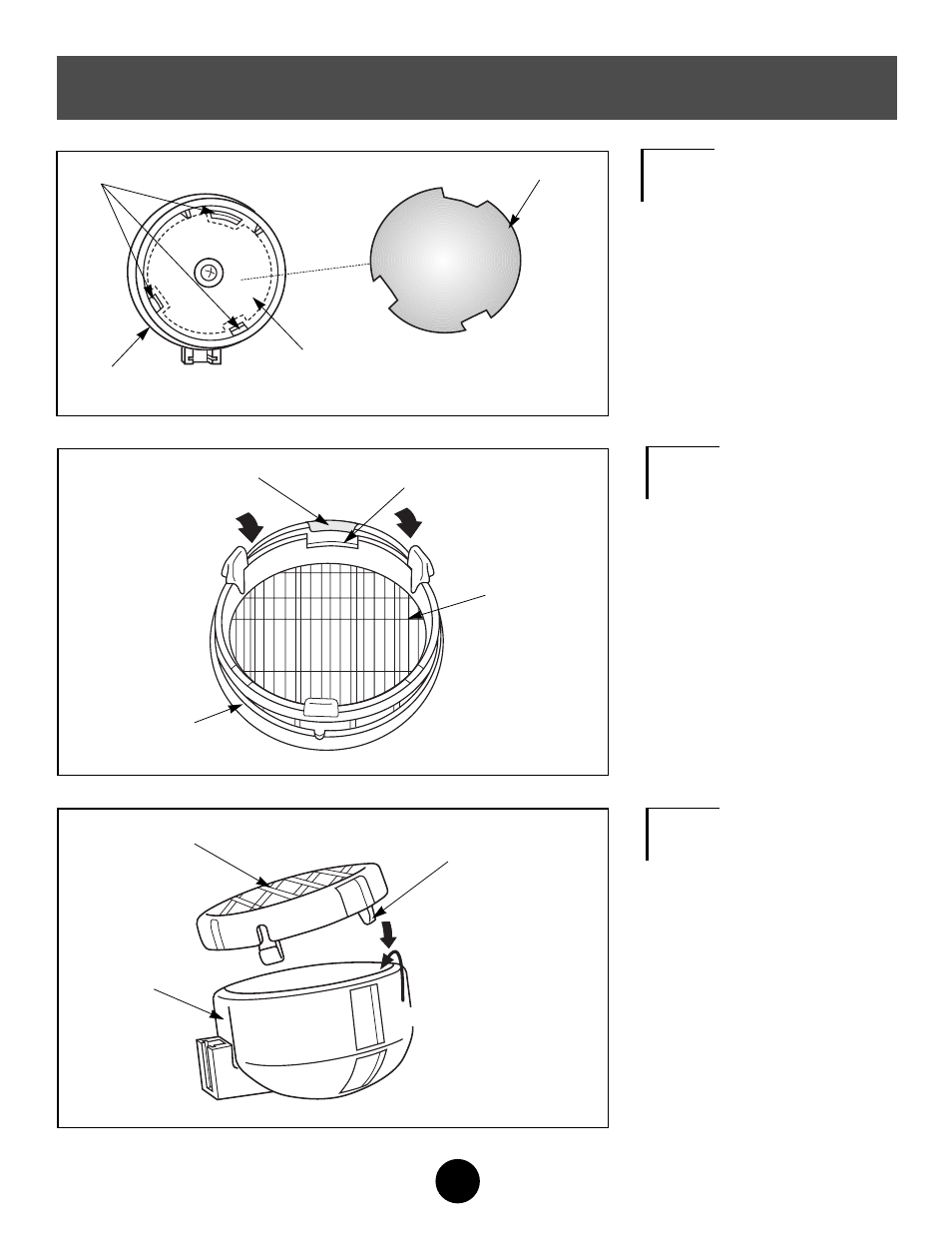

• Insert the wide tab on a lens
assembly into the wide slot in a
light housing assembly.
• Press firmly to snap the lens
assembly into the light housing
assembly.
• Repeat this procedure to assem-
ble the other lens assembly to the
other light housing assembly.
17
17
• Fit the wide notch in the side of a
lens under the wide tab on a lens
guard.
• Press firmly on the inside of the
lens to snap it into the lens guard.
• Repeat this procedure to assem-
ble the other lens to the remain-
ing lens guard.
15
• Apply a label to the center of each
of the light plates, as shown.
• Align the cut-outs in the labels with
the slots in the light plates, so that
the labels do not cover the slots.
• Make sure the areas where the
labels will be applied are clean and
dry. For best adhesion, avoid apply-
ing the labels more than once.
• Set the light housing assemblies
aside.
Light Housing
Light Plate
Slot
Label #15
Wide Tab Wide Notch
Lens
Lens Guard
Lens Assembly
Light Housing
Assembly
Wide Tab
Wide Slot
