Page 6
Page DD_05
TOOLS NEEDED TO
INSTALL DISHDRAWER
Wooden Chopping Board
Level
Safety Glasses
Utility Knife
Pencil
Drill & Drill Bits
(
3
/
32
",
9
/
16
" &
11
/
32
") or
(2.5mm, 12mm, 14mm)
Sandpaper
Tape Measure
Square
Ruler
Phillips Screwdriver
Pliers
Adjustable Wrenches (x2)
7
/
32
" (6mm) Allen Key
(Integrated Models)
Router (Integrated Models)
Jigsaw (Integrated Models)

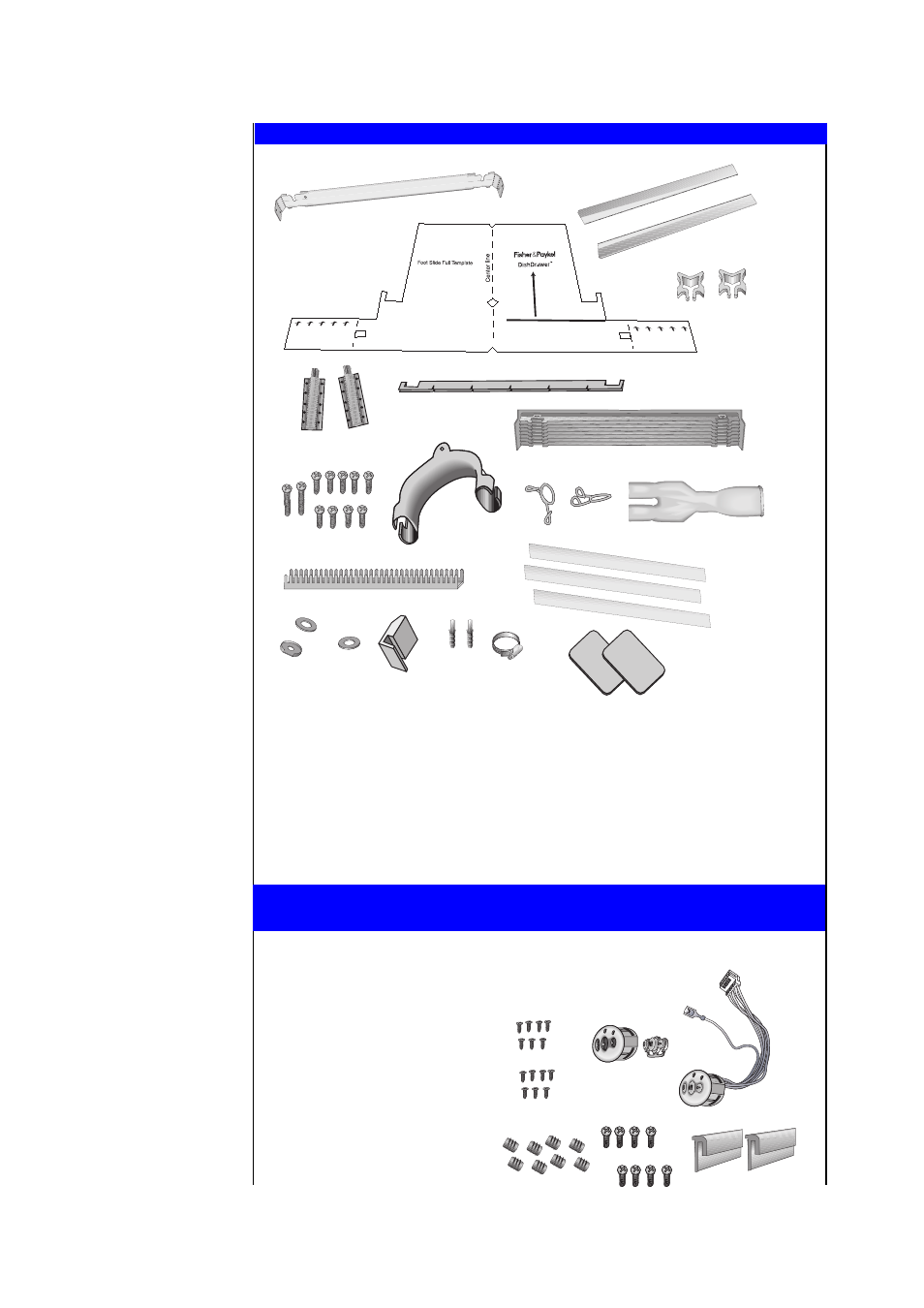

STEP 1.5 PRODUCT PARTS
1.
Retainer (1)
(Channel Transverse)
2.
Slide Runners (2)
(Channel Longitudinals)
3.
Foot Slide Template (1)
4.
Clip Pegs (2)
5.
Toe Kick Pins (2)
6.
Toe Kick Brace (1)
STEP 1.6 ADDITIONAL PRODUCT PARTS FOR INTEGRATED
DISHDRAWER
14. Solderless Lug & Washer
15. Inlet Hose Washer (1)
16. Transit Packer (1)
17. Masonry Anchors (2)
18. Hose Clamp (1)
19. Endplates (2)
7.
Lower Toe Kick (1)
8.
Screws (11)
9.
Drain Hose Support (1)
10. Wire Clips (2)
11. Drain Hose Joiner (1)
12. Edge Protector (1)
13. Flexible Extrusion (3)
20. Small Screws (14)
21. Badge Kit (2)
22. Mounting Bracket Nuts (8)
23. Door Screws (8)
24. Seal (2)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
