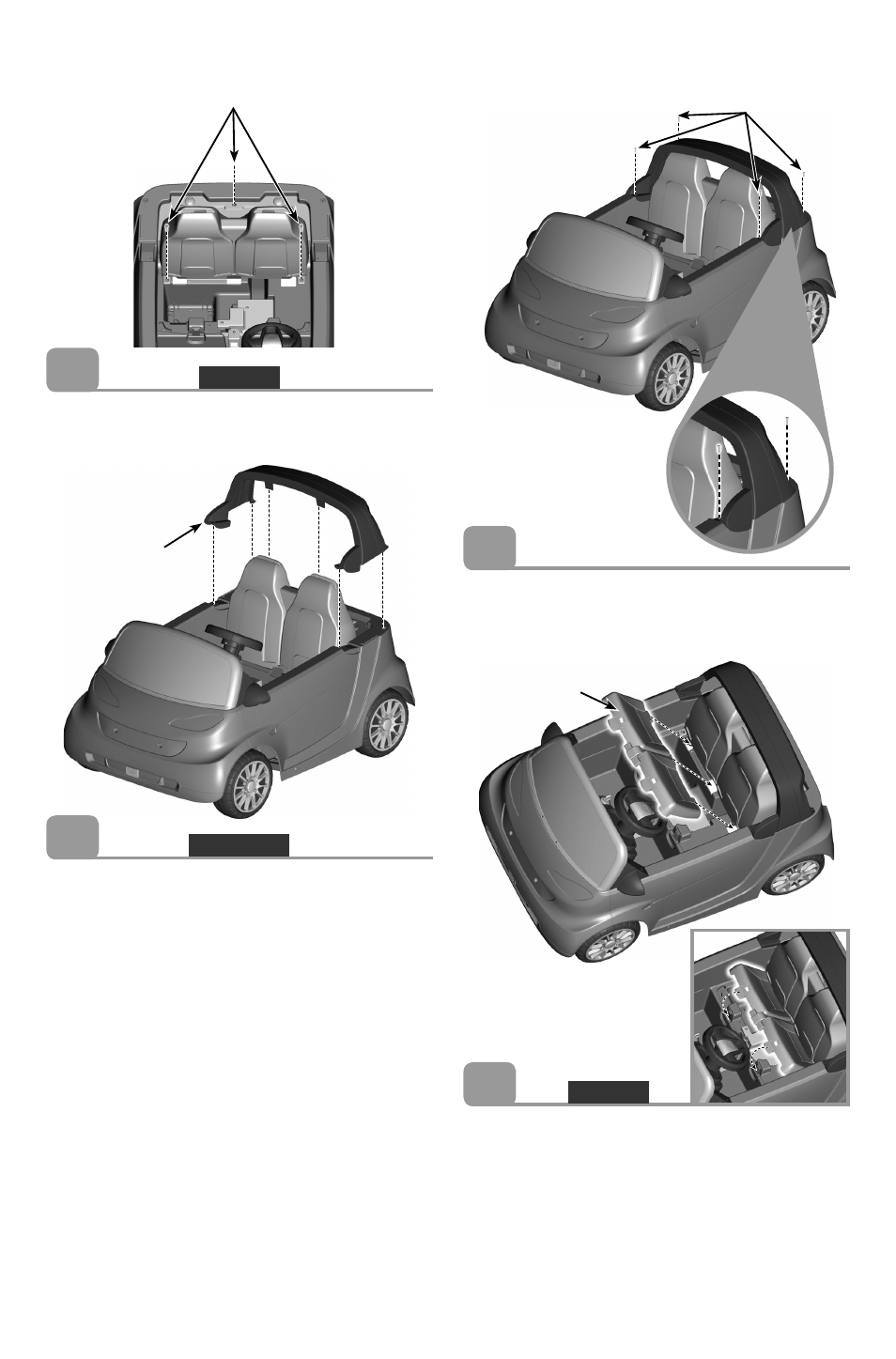

Insert three screws into the holes in the seat back •
and tighten.
Fit the tabs on the roll bar onto the seat back and •
vehicle, as shown.
Insert four screws into the holes in the roll bar •
and tighten.
Roll Bar
Note: You may want to install the battery before
completing this step. Refer to the Battery Installation
section for instructions.
Fit the tabs on the seat bottom into the openings near •
the seat back.
Push the front edge of the seat down to
• “snap” the seat
in place.
Seat Bottom
ASSEMBLY
12
13
14
15
Screws Screws
TOP VIEW
FRONT VIEW
TOP VIEW
