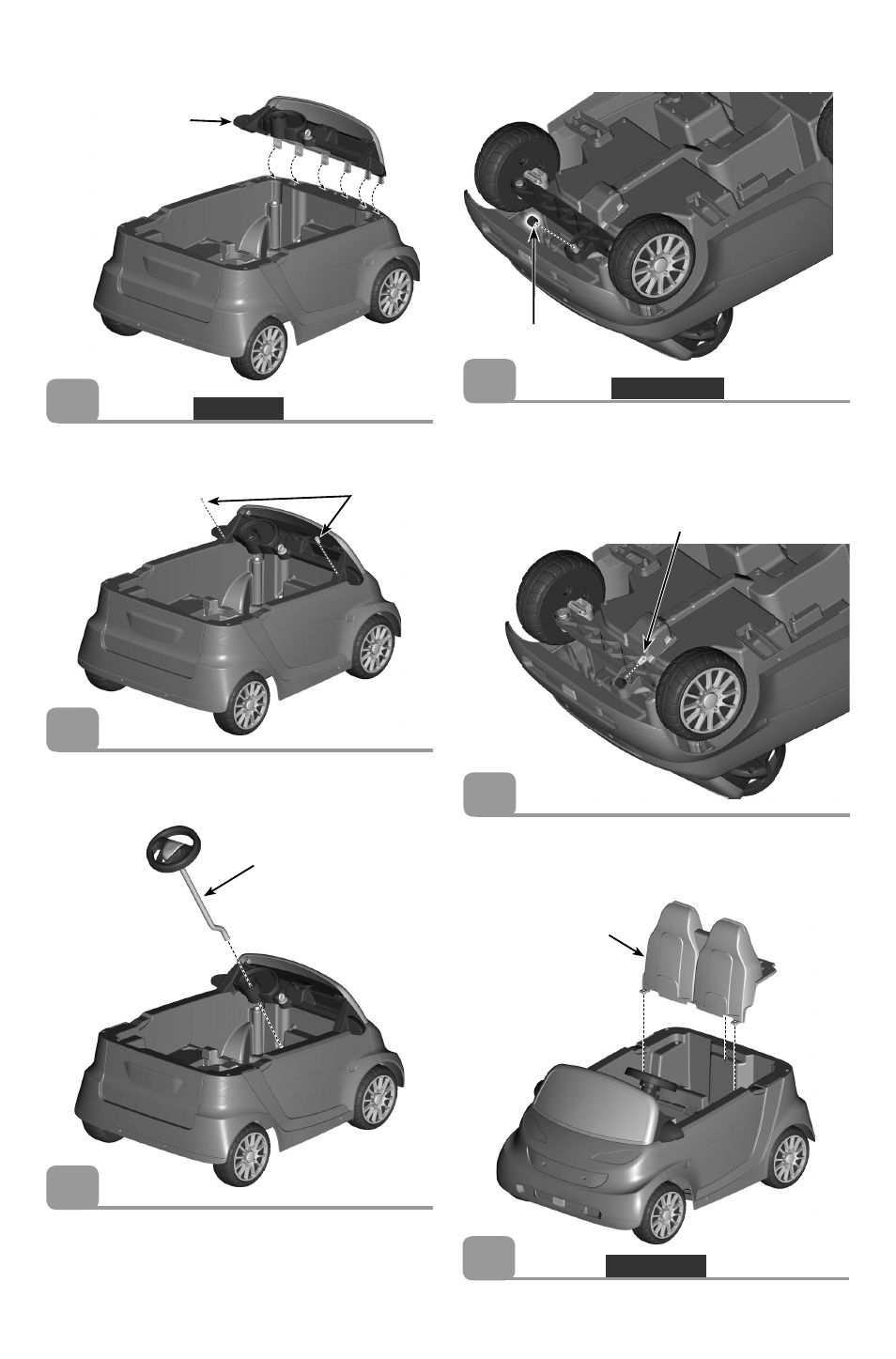

Insert two screws into the dash assembly. Tighten •
the screws.
Fit the steering column assembly down through the •
opening in the dash.
At an angle, fi t the tabs on the dash assembly into the •
slots in the vehicle.
Dash Assembly
Steering Wheel Assembly
Carefully turn the vehicle on its side. •
Fit the end of the steering column through the hole in •
the steering linkage.
Fit the steering column cap onto the end of the
•
steering column.
Insert a screw into the hole in the steering column cap. •
Tighten the screw.
Turn the vehicle upright.
•
Steering
Column Cap
ASSEMBLY
6
9
10
7
8
BACK VIEW
Screws
BOTTOM VIEW
Screw
Place the seat back onto the vehicle, as shown. •
Seat Back
11
FRONT VIEW
