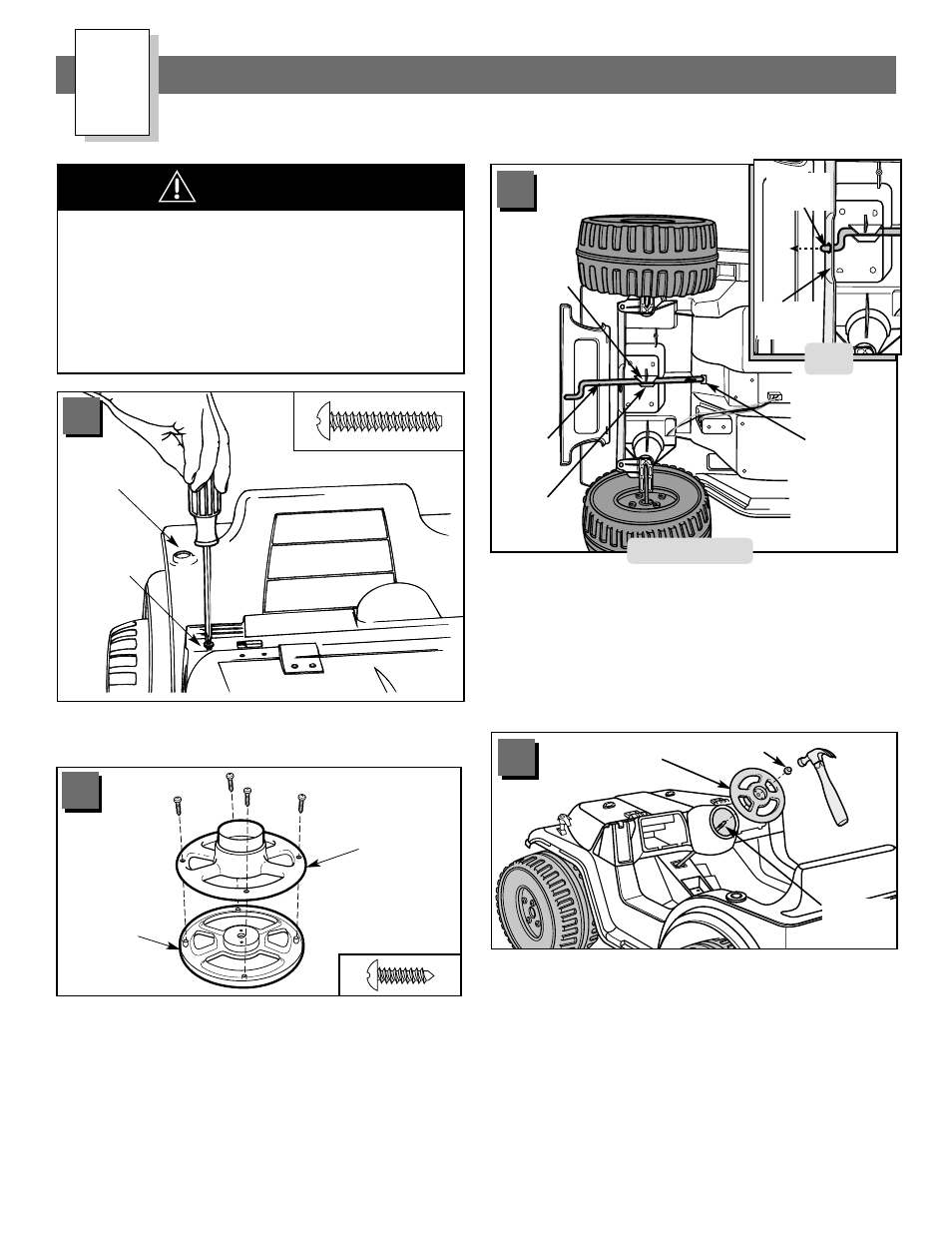

Assembly
F
• Position the vehicle body on its side.
• Fit the straight end of the steering column up through
the square opening in the vehicle body and out through
the large round hole in the dash. Make sure the steer-
ing column is positioned between the guides on the
underside of the vehicle body.
• Insert the end of the steering column through the hole
in the steering linkage (see inset).
• Fit the steering wheel top and bottom together.
• Insert four #6 x 1 /
2
" screws into the holes in the steering
wheel bottom and tighten.
• Set the steering wheel aside.
• Insert a #8 x 1" screw through the hole in each end of
the dash and into the vehicle body. Tighten the screws.
Steering
Wheel Top
Steering
Wheel Bottom
Dash
Vehicle
Body
• Turn the vehicle body upright.
• Align the keyed hole in the center of the steering wheel
with the ribs on the steering column. Fit the steering
wheel onto the steering column. The base of the steer-
ing wheel should fit into the large hole in the dash.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the
steering column.
Hint: You may want the help of another person to
support the steering column while you tap the cap
nut with the hammer.
Bottom View
Inset
Guide
Square
Opening Steering
Column
Steering
Column
Steering
Linkage
Steering
Wheel
Steering
Column
Cap Nut
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the
battery, or help in assembly of the vehicle.
WARNING
