Assembly

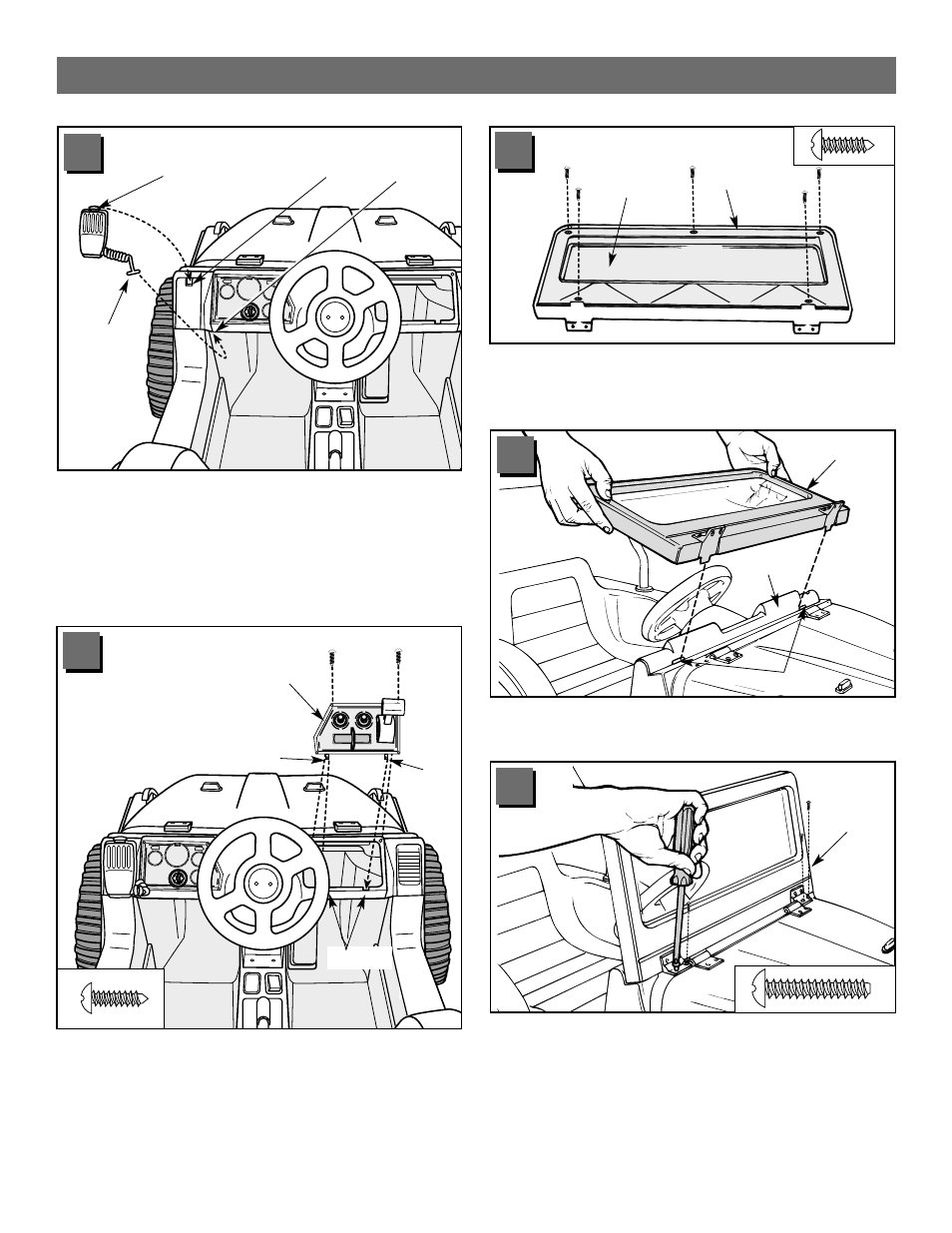

• Rotate the top of the windshield toward the front of the
vehicle body.
• Insert four #8 x 1" screws into the holes in the hinge on
the windshield and tighten.
Windshield
Slots
Dash
• Fit the tabs on the back of the windshield into the slots in
the top of the dash.
• Fit the windshield into the windshield frame.
• Insert five #6 x 1 /
2
" screws into the holes in the
windshield and tighten.
Windshield
Windshield
• Bend the plastic tip at the end of the microphone cord to
form a “T”.
• Insert the plastic tip into the small hole in the left side of
the vehicle body. Pull gently on the cord to make sure it
is secure.
• Fit the tab on the back of the microphone into the slot in
the dash.
Microphone
Plastic
Tip
Slot
Hole
Tab
Tab
• Fit the tabs on the bottom of the activity panel into
the notches in the dash opening to the right of the
steering wheel.
• Insert two #6 x 1 /
2
" screws into the holes in the top
of the activity panel and tighten.
Activity Panel
Windshield
Frame
Notches
