Text mode
Original mode

4) R-CALIB display

R-CALIB (Rate sensor Calibration) is used to enter the calibration value of the rate sensor at
factory. It is not necessary to change this value when the rate sensor is replaced with new one.
However, the value on top of the original sensor is written on top of the replacement sensor
for future service.

Fig.6

R-CALIB

S1 : +0.0%

S2 : +0.0%

S3 : +0.0%

S1 (Pitch*)

S3 (Yaw*)

*: Default

S2 (Roll*)

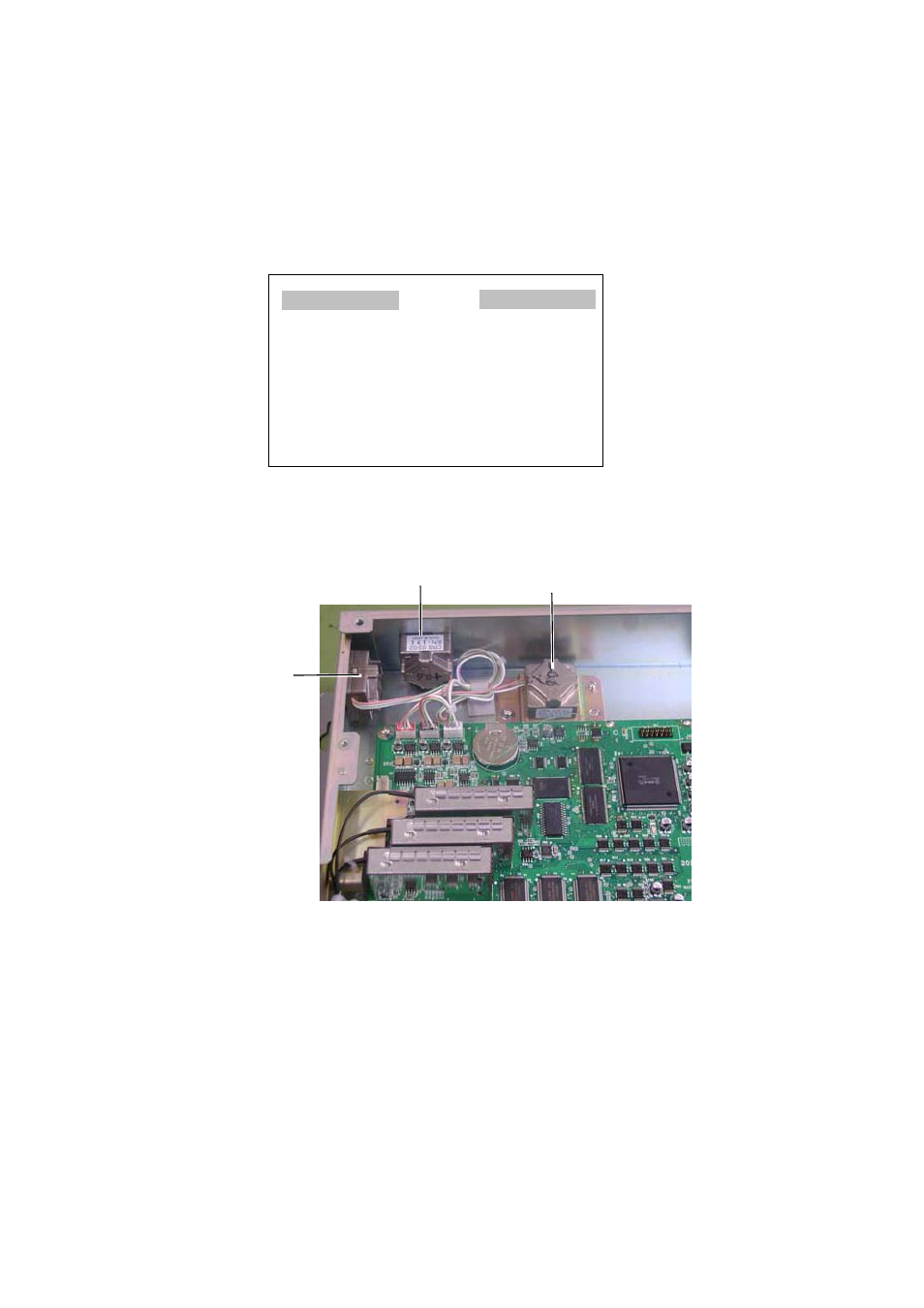

Fig. 7 Rate sensors in Processor Unit
