Preparation S T E P
Refer to the "Package Contents" and check that there are no missing items.
The latest version of this document and the latest information about the ETERNUS DX60/DX80 is released in the following web-site. Access the following address if needed.
http://www.fujitsu.com/global/services/computing/storage/eternus/products/diskstorage/dx-entry/
The company names, product names and service names mentioned in this document are registered trademarks or trademarks of their respective companies.
Copyright 2010 FUJITSU LIMITED

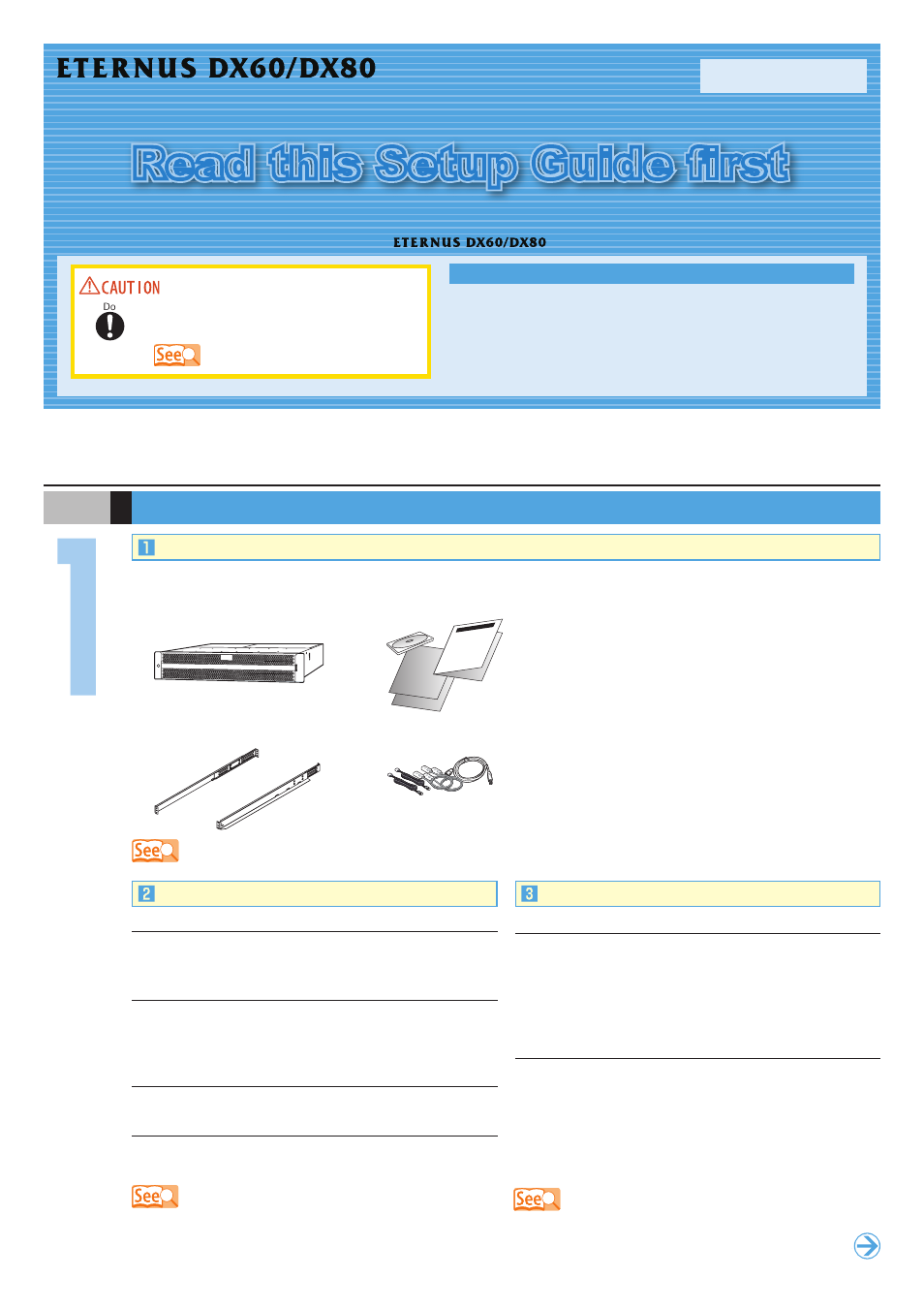

This guide describes the workflow required to proceed from installation to
operation of the (SAS model).
P3AM-3102-04EN
Setup Guide (SAS model)
Read and understand the "Safety Precautions"
before use.
"Safety Precautions"
Basic Setup
Monitoring Setup
Server Connection
Operation and Maintenance Preparation
Installation
Cable Connection
Startup
Workflow
Read this Setup Guide first
Disk storage system
1
2
3
4
5
6
7
8
Proceed to
next step
Check that the installation area meets the space requirements
of the rack in which the ETERNUS DX60/DX80 is to be installed.
Installation space
Installation requirements
Check that the installation area satisfies all the requirements
described in the "Instructions for installation" section of the
"Safety Precautions".
Temperature: 5 – 40°C, Humidity: 20 – 80%RH
Environmental conditions
Power outlets
Check that a sufficient number of suitable wall outlets are
available.
Installation and Connection Preparation
"5.1 Installation Preparation" in the "User Guide"
"6.1 Connection Preparation" in the "User Guide"
"Safety Precautions"
n
n
n
Setup Preparation
"7.1 Setup Preparation" in the "User Guide"
Package Contents Check
"Package Contents"
Prepare the following manuals:
Documentation CD
"Safety Precautions"
"Package Contents"
Other related manuals, for example, for a server or
networking equipment.
When ETERNUS SF Express is used, prepare the following
software and User's Guide:
ETERNUS SF Express Media Pack
"ETERNUS SF Express User's Guide"
n
n
n
n
n
n
ETERNUS DX60/DX80

Rack mount kit 
Misc. documents

Misc. cables 
Complete the following information in the Network Settings
label and attach it on the ETERNUS DX60/DX80.
IP address and subnet mask for the ETERNUS DX60/
DX80
IP address for maintenance work n
n
Completing and attaching the Network Settings label
Setup Network Environment
IP address: 192.168.1.2
Subnet mask: 255.255.255.0
Set the Web browser
Proxy server and Cache : Disable
Java Script, style sheets, and cookies : Enable
n


n


Settings for the PC
