2.2 Display Indication and Markers

HDG 234.5°

. 125

0625

TRAIL

30M

ZOOM

ES1

AUTO

25 : 38

G (OUT)

IR2

VRM

0.048NM
0.100NM

13.5 R

0.142NM

A/C
AUTO
EBL
345.6 R

23.0 R

°
°

OFFCENTER

Tuning indicator (P.6)

Echo trail time (P.13)

Guard Zone (P.15)

Zoom (P.11)

Echo Stretch (P.13)

EBL2 (P.9)

Range ring (P.8)

VRM2 (P.8)

North mark (P.8)

Interference rejector (P.14)

VRM2 range (P.8)

VRM1 range (P.8)

Cursor range (P.8)

Cursor bearing (P.9)

EBL2 bearing (P.9)

EBL1 bearing (P.9)

A/C AUTO (P.7)

VRM1 (P.8)

EBL1 (P.9)

Guard zone area (P.15)

Cursor (P.8, 9)

Display mode (P.12)

Pulselength (P.6)

Range ring interval (P.6)

Range (P.6)

Echo trail elapsed time (P.13)

Heading (requires heading data)

Heading line (P.8)

Off center (P.10)

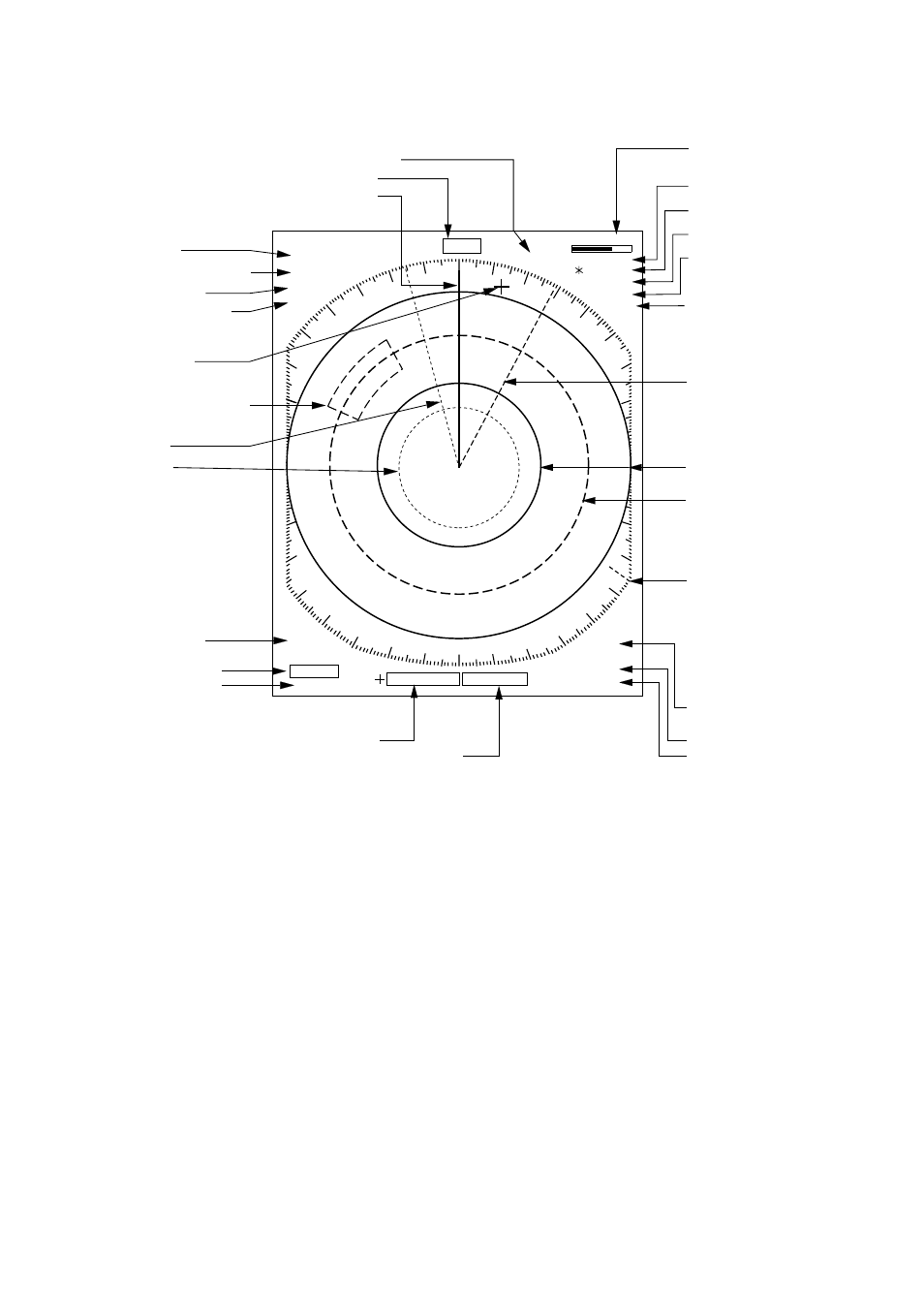

Figure 2-2 Display indications
