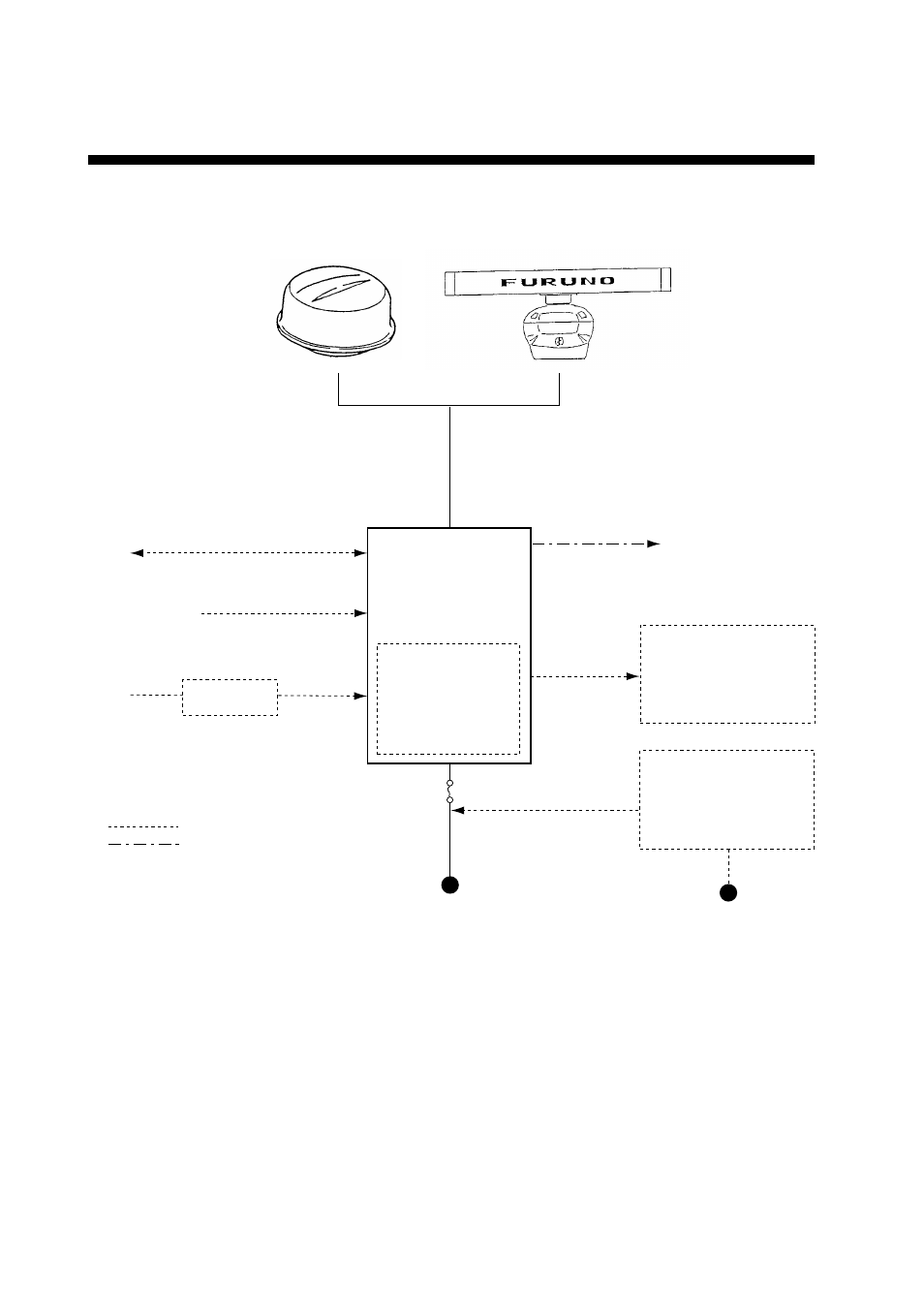

CONFIGURATION OF
MODEL 1832/1932/1942
Display Unit
RDP-118
Auto Plotter
ARP-10
NAV
Video Sounder
Gyro
Gyro Converter
AD-100
12/24/32 VDC
(1932/1942)
(1832)
Remote Display
FMD-811/1800
External Alarm
Buzzer OP03-21
Rectifier
PR-62(1832),
RU-3423(1932/1942)
115/230 VAC
IEC 1162* (In)
IEC 1162* (In/Out)
Antenna Unit
12 VDC: 5A
24 VDC: 10A
*Equivalent to NMEA 0183
: Option
: Local Supply
Note: Even though the display unit meets waterproof standard IPX-5, the connection of external
buzzer, radar plotter and/or remote display can affect waterproofness. Watertight integrity cannot
be guaranteed. When these modification has been done, the display unit should not be mounted
where exposed.
