14

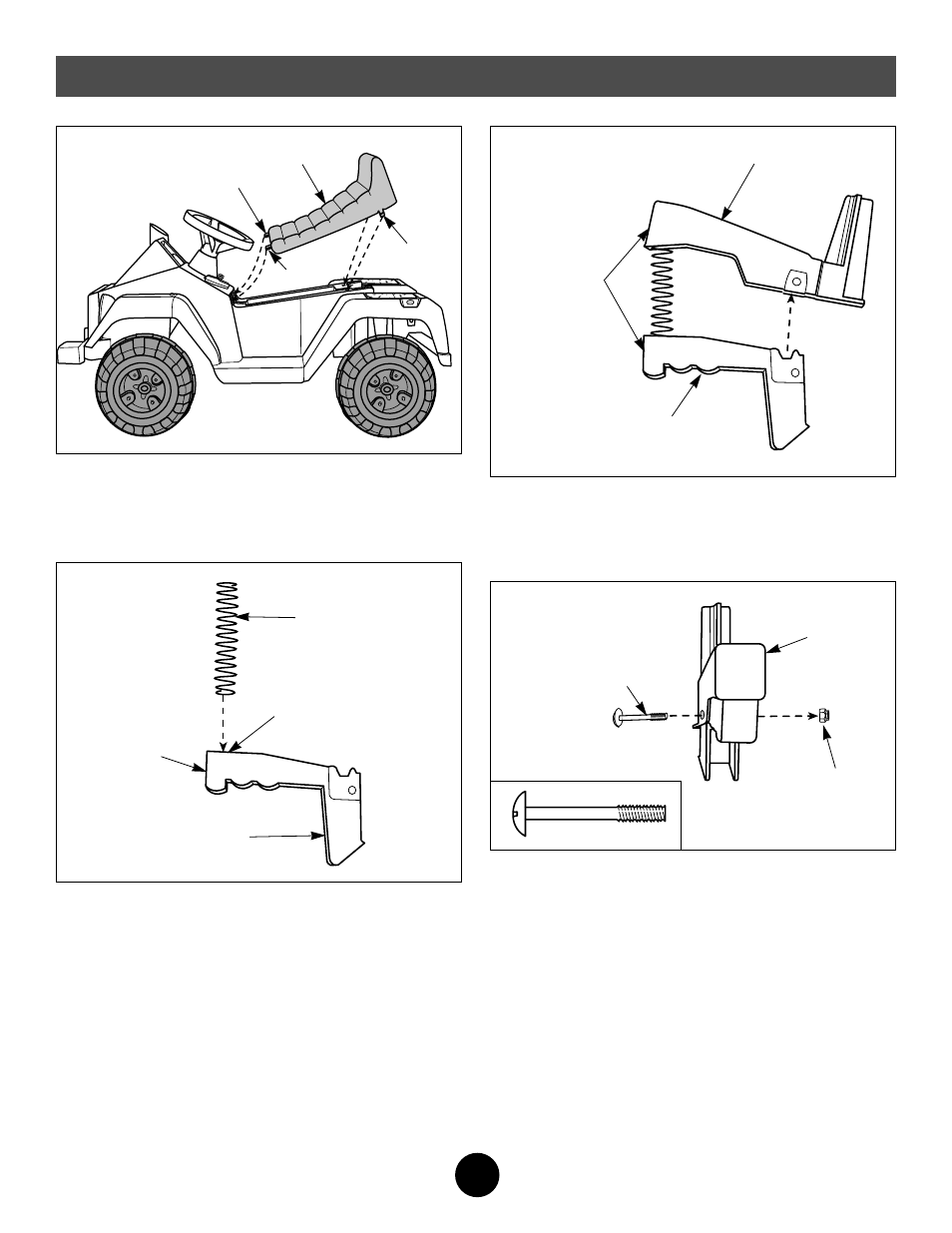

Assembly
Tab
Tab
Tab
Seat
• Fit the tabs on the seat into the holes in the vehicle body.
• Push firmly near each of the tabs to snap them into the
vehicle body.
17
18
19
• Separate the two halves of the dump bed lever.
• Fit the large spring onto the circular peg on the inside of
the bottom (grip) half of the dump bed lever.
• Re-assemble the two halves of the dump bed lever.
Make sure the end of the spring contacts the inside of
the circle outlined on the upper half of the dump bed
lever.
Dump Bed Lever
Bottom (Grip)
Half
Large Spring
Circular Peg
Dump Bed
Lever Halves
Upper Half
Bottom (Grip)
Half
20
• Align the holes in the upper and lower halves of the
dump bed lever and insert a #10 x 1 1 /
4
" shoulder bolt
through the dump bed lever, as shown above.
• Fit a #10 - 32 acorn nut on the end of the shoulder bolt.
Do not reverse the position of the shoulder bolt and
acorn nut.
• Use pliers to hold the acorn nut steady and tighten the
shoulder bolt with a Phillips screwdriver. Do not
over-tighten.
• Squeeze the dump bed lever to make sure the bottom
half moves freely. If it is too tight, loosen the shoulder
bolt and acorn nut slightly.
Dump Bed
Lever
Shoulder Bolt
Acorn Nut
