Page 11

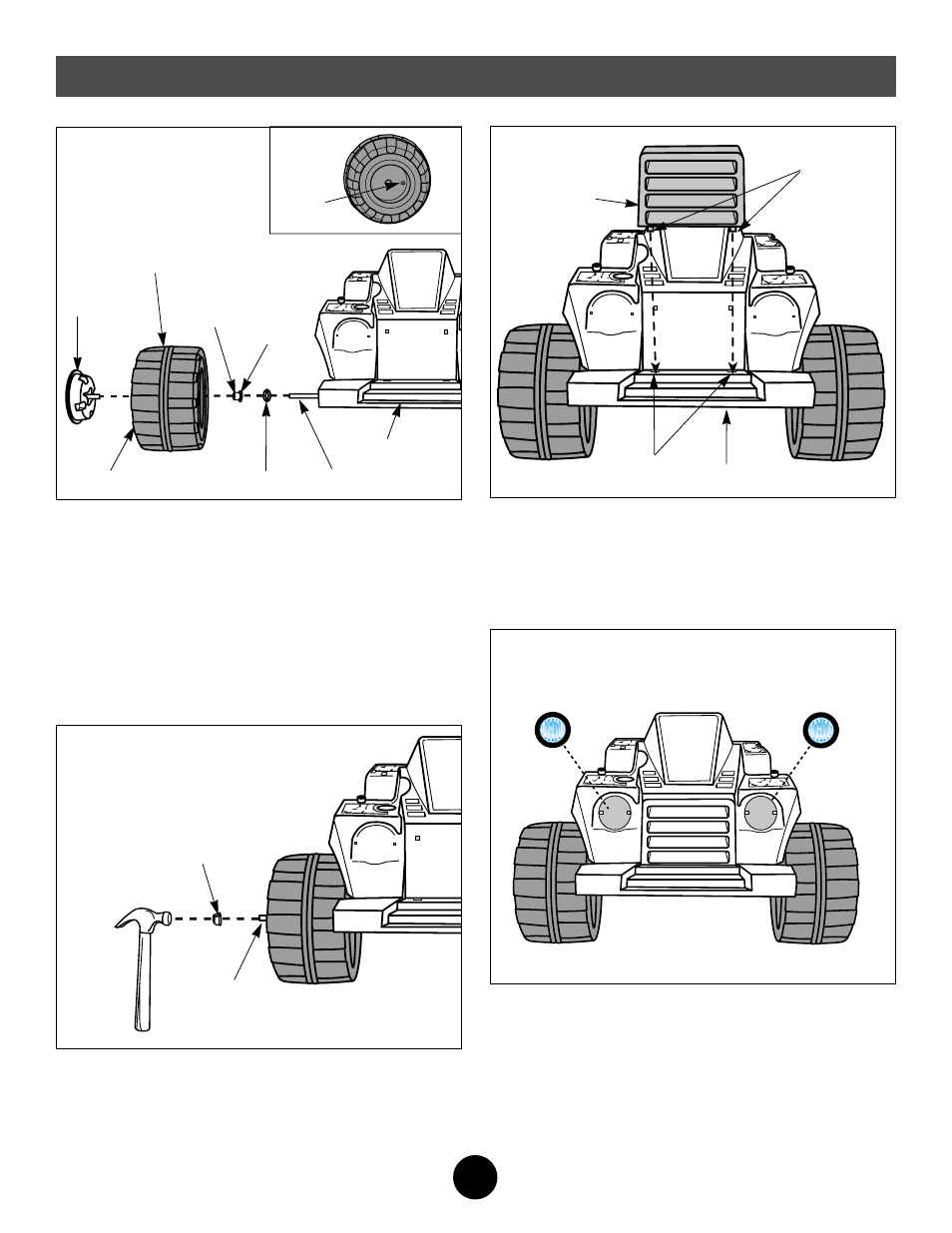

• Slide a

” washer onto one of the front axles.

• Slide an axle bushing onto the front axle. Make sure the

axle bushing is positioned as shown in the illustration,
with the ring facing the washer.

• Slide a front wheel onto the front axle. Make sure that

the peg on the wheel is facing away from the
axle bushing.

• Slide a hubcap onto the front axle.

• Rotate the hubcap to make sure it is fully seated inside

the center of the wheel.

Washer

Front Axle

Vehicle Body

Axle
Bushing

Ring

Front
Wheel

Peg

Hubcap

Peg

• Fit a large cap nut on the end of the front axle.

• Tap the cap nut gently with a hammer to secure it on the

end of the axle.

• Pull on the wheel to make sure the cap nut is firmly

attached to the front axle.

• Repeat assembly steps 5 and 6 to assemble the other

front wheel.

Large Cap Nut

Front Axle

Bottom
Tabs

Slots

Grille

Front Bumper

• Face the front of the vehicle.

• Fit the tabs extending from the bottom of the grille into

the rectangular slots above the front bumper.

• Push on the grille to snap the tabs on the back of the

grille into the slots in the front of the vehicle body.

• Align the slots in the headlight labels with the headlight

guard slots in the hood. Apply the headlight labels
as shown.

• Make sure the areas where the labels will be applied are

clean and dry. For best adhesion, avoid repositioning the
labels once they are applied to the vehicle.
