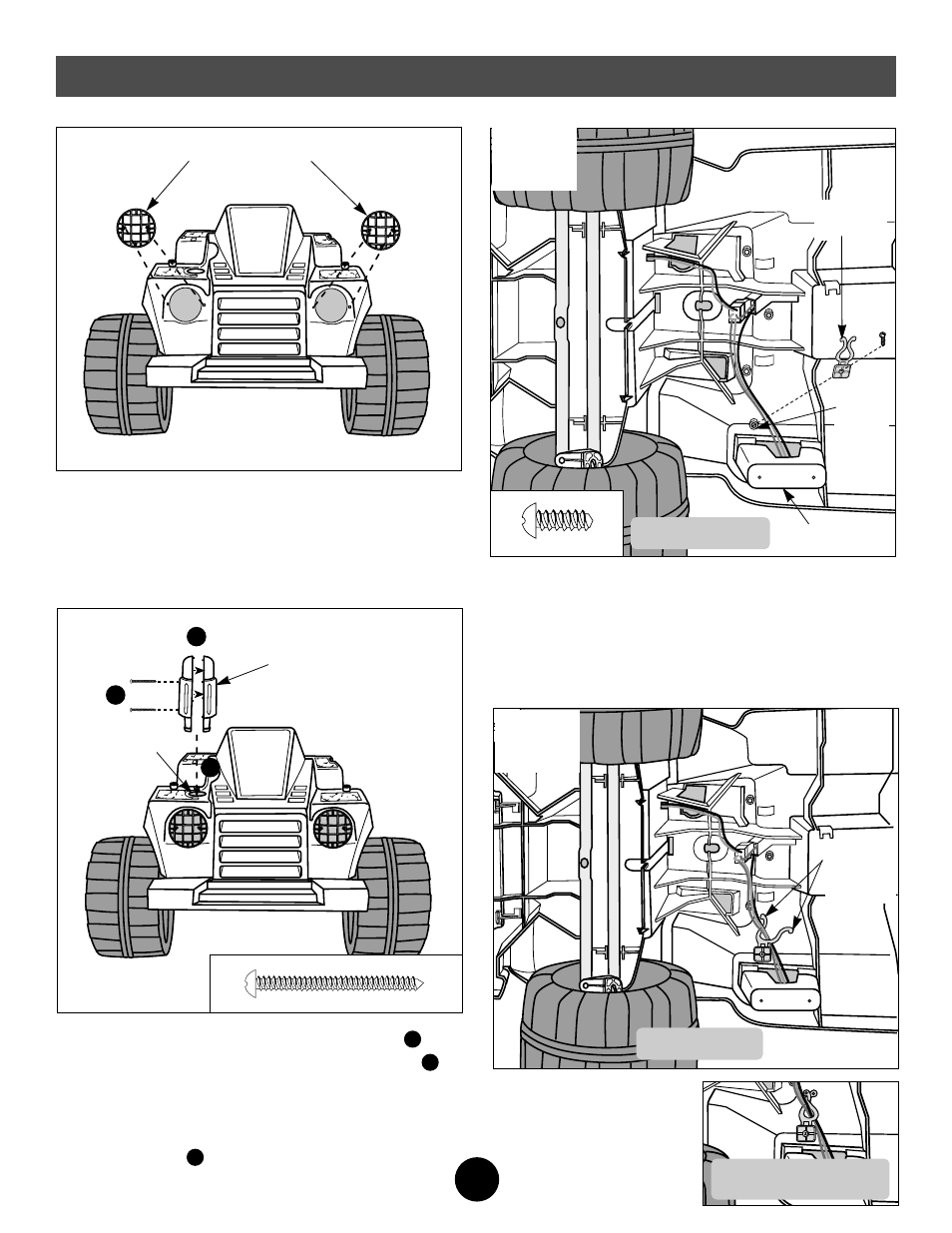

• Using safety scissors, separate the round headlight
guards from the plastic connector. Dispose of the plastic
connector.
• Fit the tabs on the back of the headlight guards into the
slots in the front of the hood.
• Push firmly to snap the tabs into the hood.
• Fit together the two halves of the exhaust stack .
• Insert two #6 x 1 1 /
2
"” screws into the exhaust stack .
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Fit the end of the exhaust stack into the large hole in the
top of the vehicle body and push firmly until it snaps into
the vehicle body
. 3
2
1
Large Hole
Exhaust Stack Halves
Headlight Guard
10
9
Assembly
1
2
3
• Turn the vehicle body on its side.
• Align the hole in the wire retainer with the screw peg in
the underside of the vehicle body, near the footswitch.
• Insert a #8 x 1 /
2
" screw through the wire retainer and into
the vehicle body.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
Footswitch
Wire
Retainer
Screw
Peg
Bottom View
• Place the wiring between
the ends of the wire
retainer.
• Twist the ends of the wire
retainer together to hold the
wiring against the vehicle
body.
Wire
Retainer
Ends
Bottom View
Wire Retainer Ends
Twisted Together
