4.4.2 Procedure for Replacing the Pad
Replace the pad through the following procedure:
1)
Remove any documents from the document support.
2)
Open the automatic document feeder by pulling it toward you while
raising the cover open lever.
3)
Remove the pad.

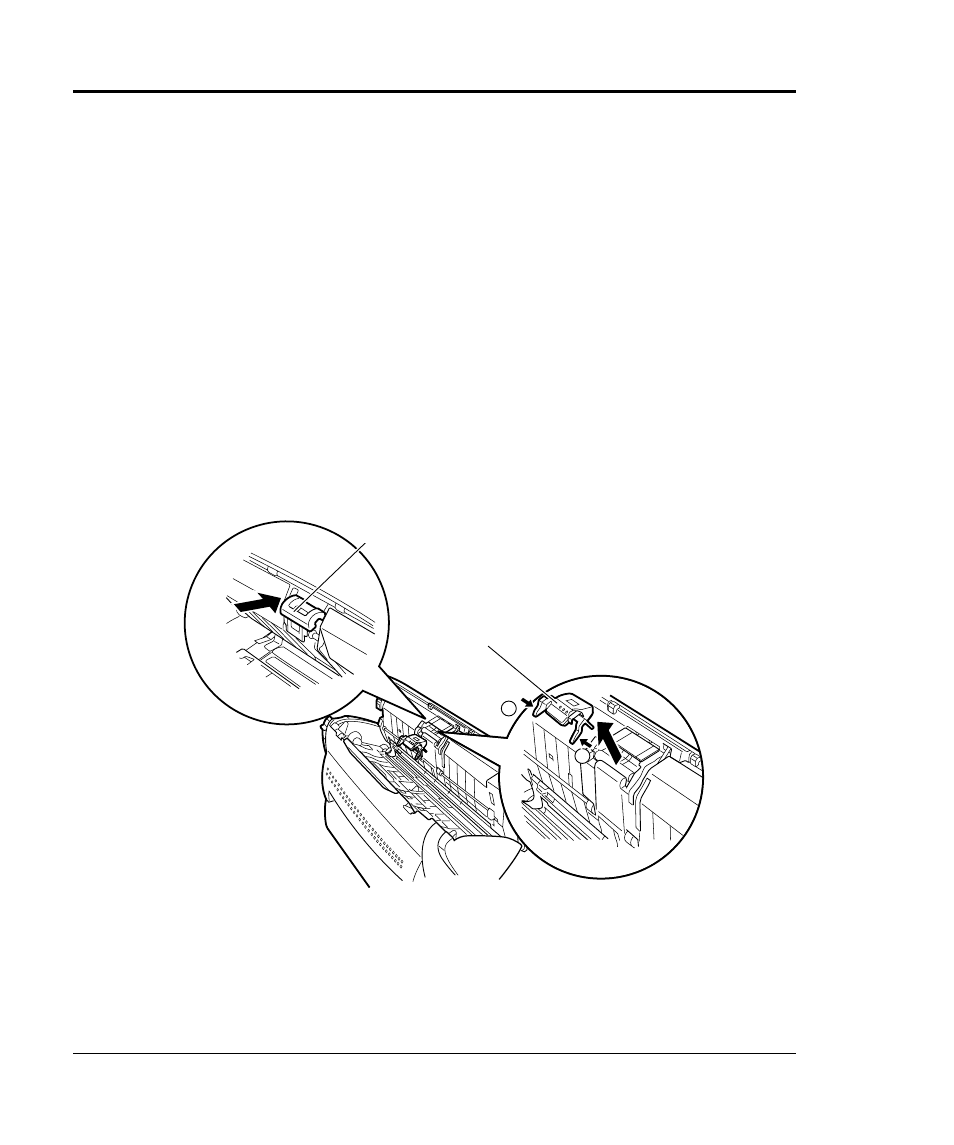

Step 1:
Push the pick arm in the automatic document feeder in the
arrow direction.
Step 2:
Pull out the pad by using such as a ballpoint pen at both
ends (a and b) of the pad.
a
b
Step 1
Picking arm
Pad
Step 2
Pick arm
