2 PRODUCT DESCRIPTION
2.1 Features
Two DB-9 serial ports (defaulted to RS-485 unless specified differently at the time of purchase).
Data communications speeds of 300 to 115200 baud supported.
10/100BaseT Ethernet LAN interface (auto-sensing)
Easy configuration via text editor or spreadsheet and the available utilities.
OPC server available
Configuration utility
Diagnostic utility
System integration services available

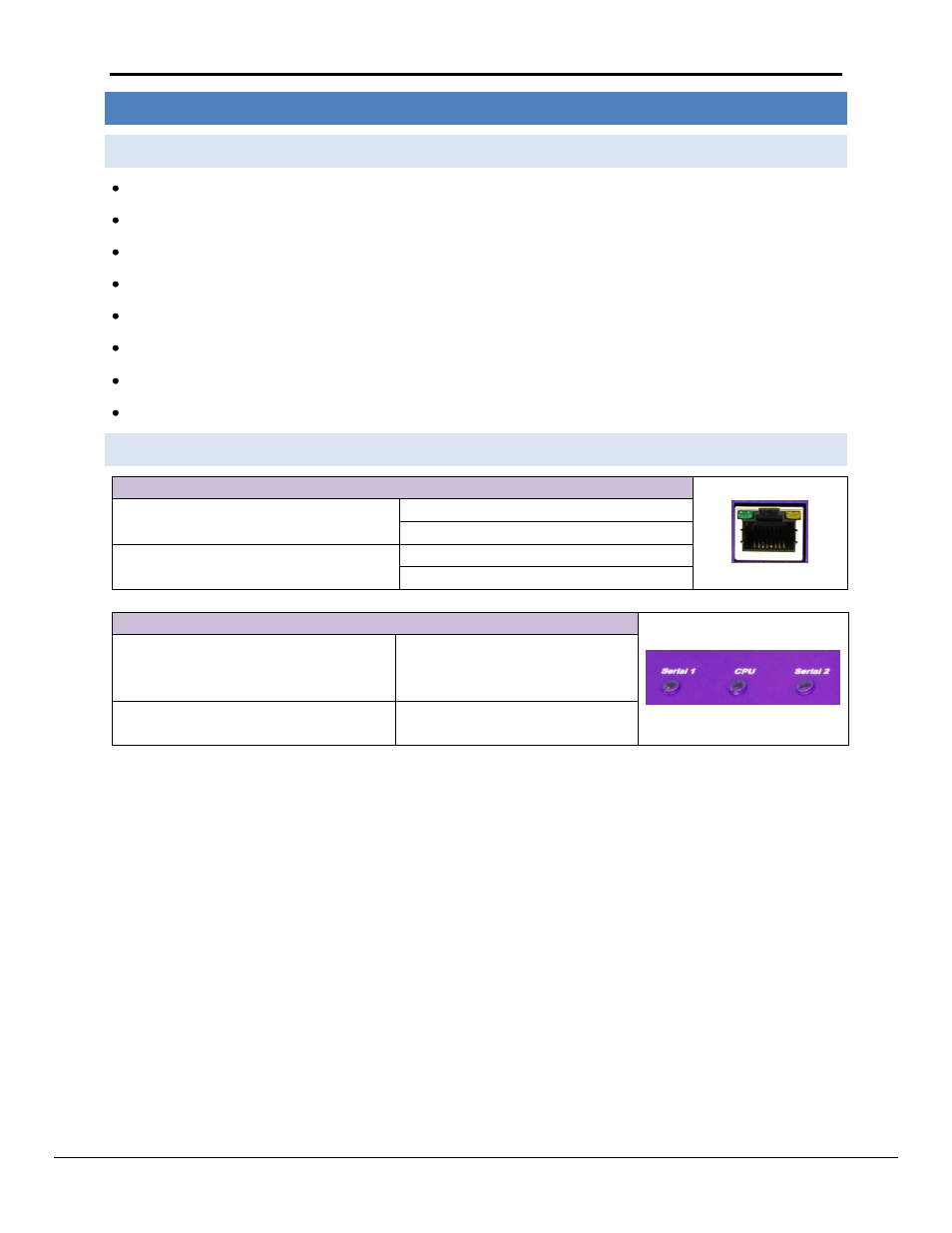

2.2 LED Indicators
Ethernet connection – Tx/Rx communication activity
Green LED – 10/100 indicator
LED on: 100 megabit connection
LED off: 10 megabit connection
Orange LED – Link activity indicator
LED on: Link active
LED off: Link inactive
Serial connection – CPU communication activity
Serial 1, Serial 2
Flashes to indicate communication
activity on the associated serial
port
CPU communication activity
Flashes once a second to indicate
normal operation.
