Care and cleaning

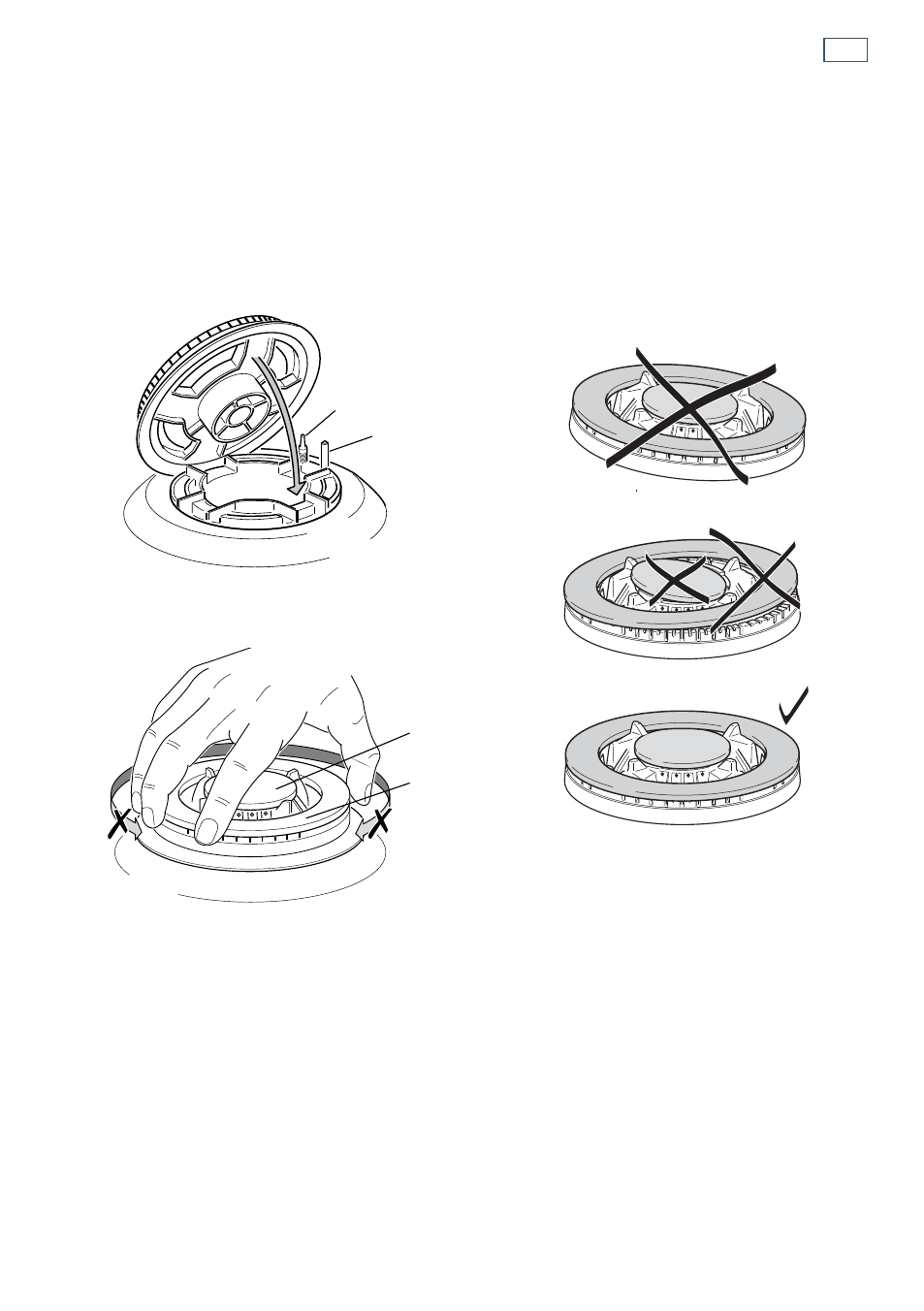

Replacing the triple-ring wok burner
Fit the burner ring to the housing as shown by the arrow in the Fig. following. Make sure the
burner is not able to rotate (Fig. 38).
Fig. 38 Correct positioning of
cap and ring - triple-ring wok burner
Probe
(some models only)
Ignitor
Fig. 39 Incorrect and correct
positioning of cap and
ring - triple-ring wok burner
Cap
Ring
