Appendix 3.3 2380 Adapter Pinouts
page 38 Document no. 93-005-35-C5

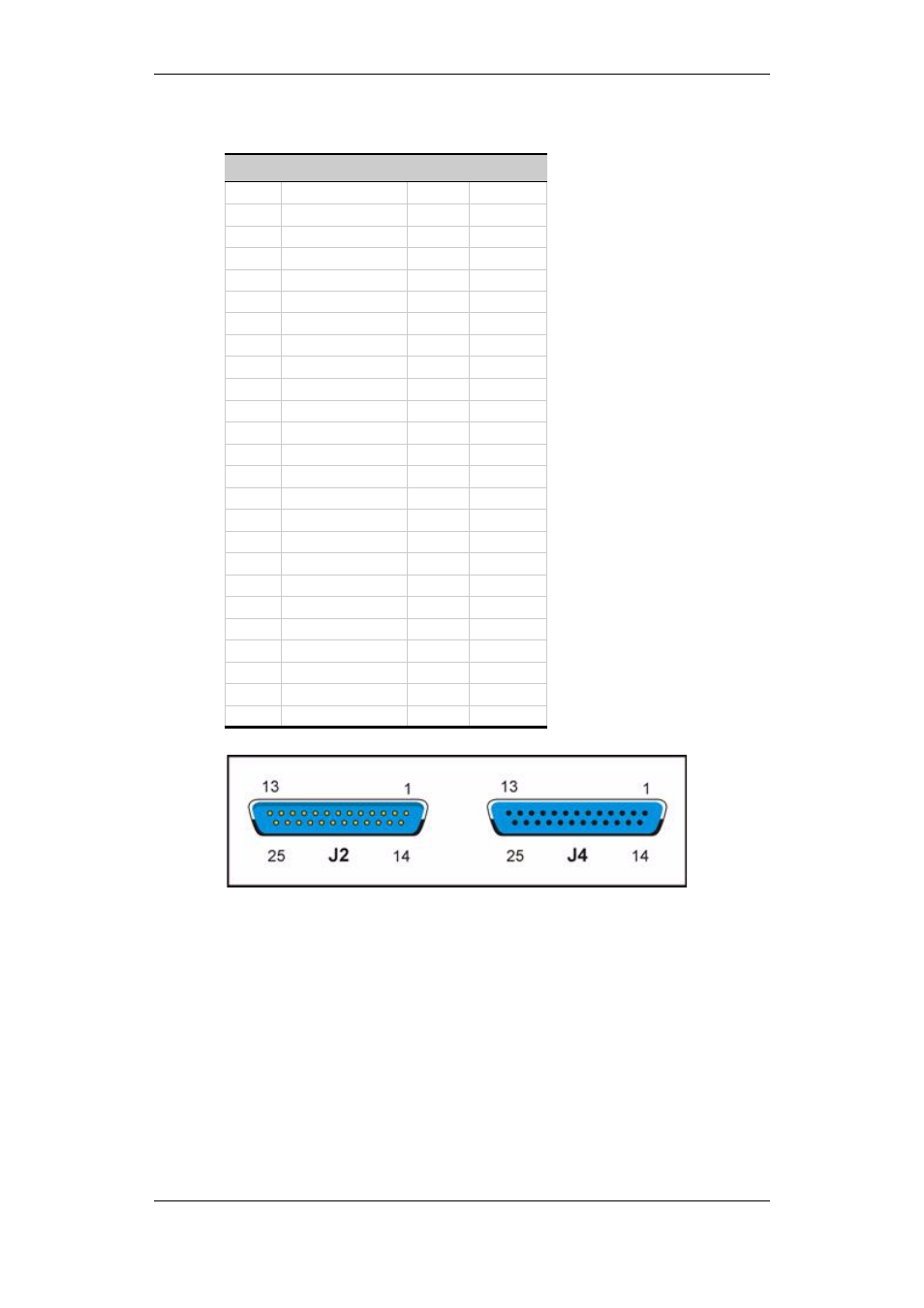

Figure 30 2380 Pin Number
Table 12 7180M Monitor Connector [J4] Pinout
Pin # Function Name Slot No.
1 RSSI Monitor RSSI1 1
2 RSSI Monitor RSSI2 2
3 RSSI Monitor RSSI3 3
4 RSSI Monitor RSSI4 4
5 RSSI Monitor RSSI5 5
6 RSSI Monitor RSSI6 6
7 RSSI Monitor RSSI7
7
8 RSSI Monitor RSSI8 8
9 PDI Monitor PDI1
1
10 PDI Monitor PDI2 2
11 PDI Monitor PDI3
3
12 PDI Monitor PDI4 4
13 PDI Monitor PDI5
5
14 PDI Monitor PDI6 6
15 PDI Monitor PDI7
7
16 PDI Monitor PDI8 8
17 LSRI Monitor LSRI1
1
18 LSRI Monitor LSRI2 2
19 LSRI Monitor LSRI3
3
20 LSRI Monitor LSRI4 4
21 LSRI Monitor LSRI5
5
22 LSRI Monitor LSRI6 6
23 LSRI Monitor LSRI7
7
24 LSRI Monitor LSRI8 8
25 Chassis Ground
