Appendix 3.1 Installing the 2380 Relay Adapter
page 34 Document no. 93-005-35-C5
Appendix 3.1 Installing the 2380 Relay Adapter
Appendix 3.1.1 Parts Required for Installing the 2380
•2380 Relay Adapter
•Two pin guides
•Four one-inch screws
•Screw driver
Appendix 3.1.2 Mounting the the 2380 Relay Adapter
1.
Very Important
: Disconnect the electricity
before
performing this pro-
cedure.
2. Make sure that you have all the needed equipment.
3. Install the pin guides.

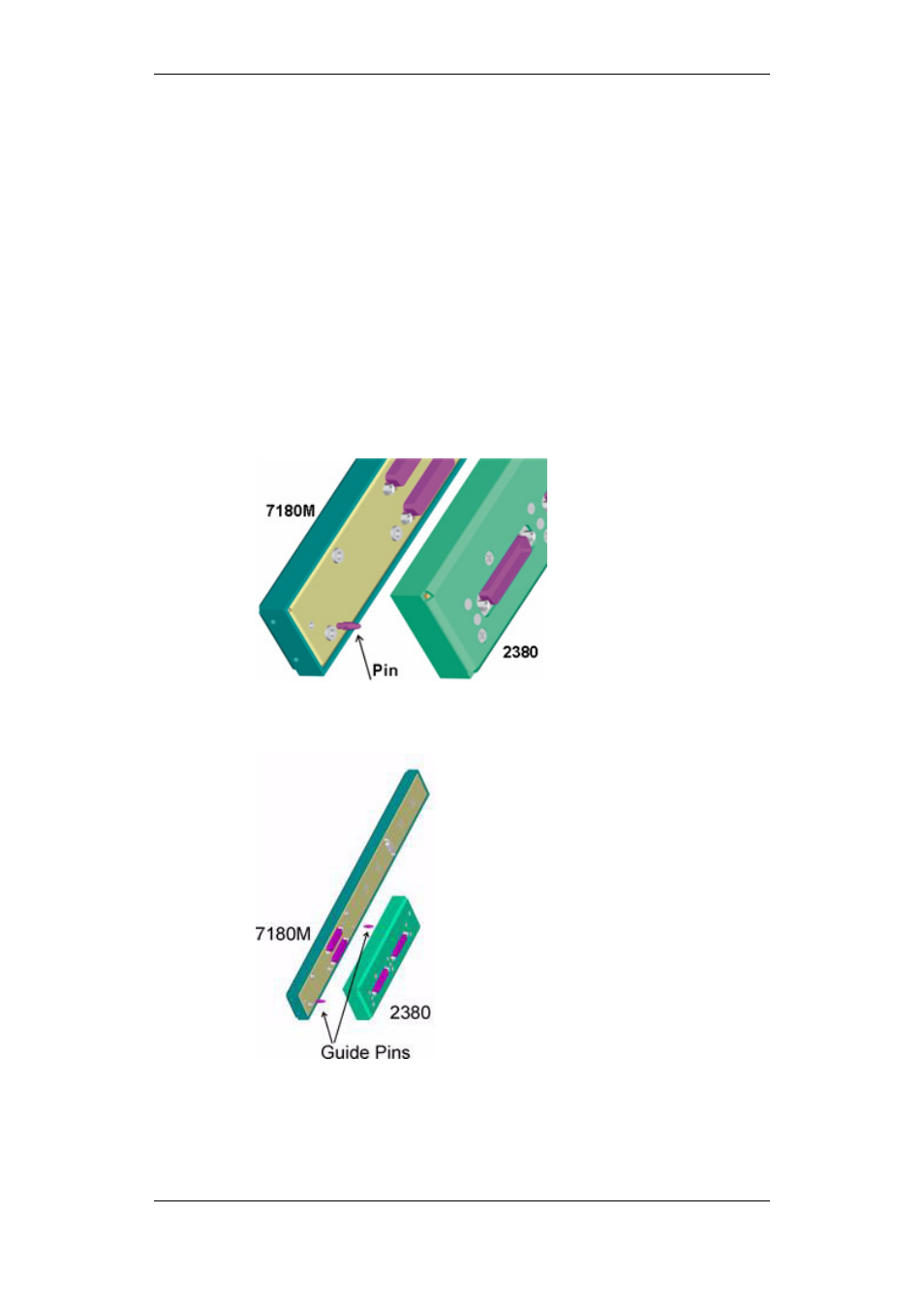

Figure 23 Installing the guide pins
4. Mount the unit onto the pin guides.
Figure 24 Mounting the adapter
