3. Hardware Connections

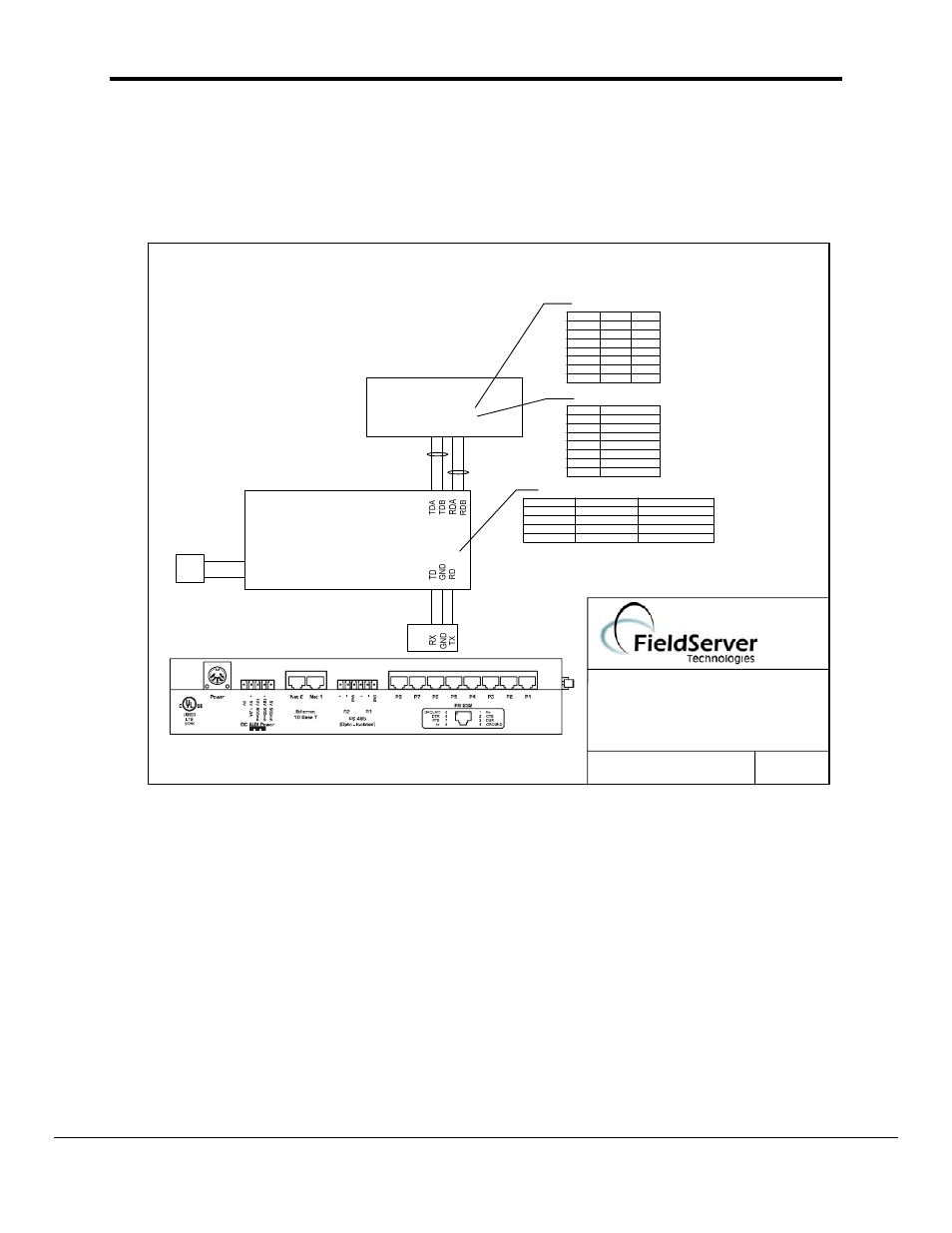

The FieldServer is connected to the WS3000 as shown below.
Configure the WS3000 according to manufacturer’s instructions.
WS3000
BASE NAME:
FILE NAME:
FIELDSERVER
WESTRONIC WS3000
CONNECTION DIAGRAM
DATE: 4/2/04
BY: MC
(408)-262-2299
FieldServer
RJ45 Socket
Use one of RS-232 ports P1-P8
1 4 8 pins
D B
RS-232
G H K L
RS-422 485LDRC
B&B Electronics RS-
232 to RS-422
Converter
A
C GND
F +10 to 30V DC
GND
+
Power Supply
Dip Switch Settings
Sw Setting Meaning
1-4 Down (off) RS-422
5 Up (on) Terminated
6-7 Down (off) Unused baud rates
8 Up (on) 2400 baud
Rx-Rx+Tx-Tx+
5, 6, 7, 8, pins
Use one of Channels 3-9
Chan Connector no
3, P11
4, P3
5, P10
6, P8
8, P9
7, P1
9, P2
Jumper Pins
Z2, 2-7
Z2, 3-6
Z2, 4-5
Z1, 4-5
Z1, 2-7
Z1, 3-6
Z1, 1-8
Chan
3
4
5
6
7
8
9
RS-422 Rx termination strapping
Install a jumper on the
indicated pins
according to the
channel used
Refer to Datasheet for setting other baud rates
