FMI (V)S36 - Manual (Page 16)

www.fmiproducts.com 111026-01G 16
Rear
Left Side
Front Bottom
Bottom
Right Side

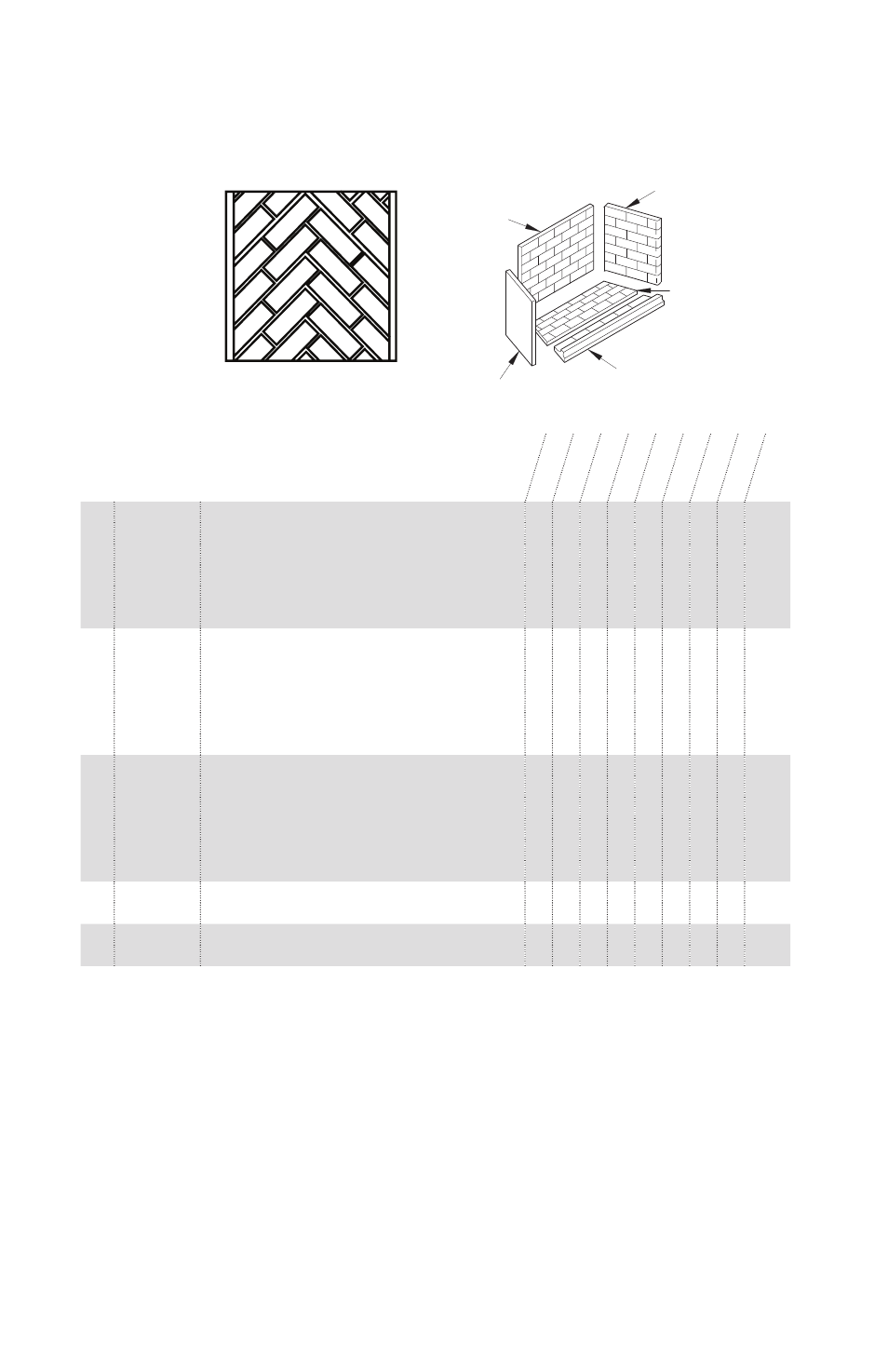

KEY
NO. PART NO. DESCRIPTION QTY.
9 106658-03 Left Refractory, Textured White Brick • 1
108164-03 Left Refractory, Textured White Herringbone • 1
106658-02 Left Refractory, Textured Red Brick • • 1
108164-02 Left Refractory, Textured Red Herringbone • • 1
106658-01 Left Refractory, Smooth White Brick • 1
108164-01 Left Refractory, Smooth White Herringbone • 1
10 106659-03 Right Refractory, Textured White Brick • 1
108165-03 Right Refractory, Textured White Herringbone • 1
106659-02 Right Refractory, Textured Red Brick • • 1
108165-02 Right Refractory, Textured Red Herringbone • • 1
106659-01 Right Refractory, Smooth White Brick • 1
108165-01 Right Refractory, Smooth White Herringbone • 1
11 106660-03 Rear Refractory, Textured White Brick • 1
108166-03 Rear Refractory, Textured White Herringbone • 1
106660-02 Rear Refractory, Textured Red Brick • • 1
108166-02 Rear Refractory, Textured Red Herringbone • • 1
106660-01 Rear Refractory, Smooth White Brick • 1
108166-01 Rear Refractory, Smooth White Herringbone • 1
12 110899-01 Bottom Rear Refractory, White Brick • • • • 1
110899-02 Bottom Rear Refractory, Red Brick • • • • 1
13 110900-01 Bottom Front Refractory, White Brick • • • • 1
110900-02 Bottom Front Refractory, Red Brick • • • • 1
S36 S36H S36R S36RH VS36(1) VS36H(1)
REFRACTORY BRICK
VS36R VS36RH
paRts
WOOD BURNING FIREPLACE MODELS S36, S36H, S36R, S36RH, VS36(1),
VS36H(1), VS36R AND VS36RH
