Fisher-Price B8866 - Manual (Page 6)

Assembly

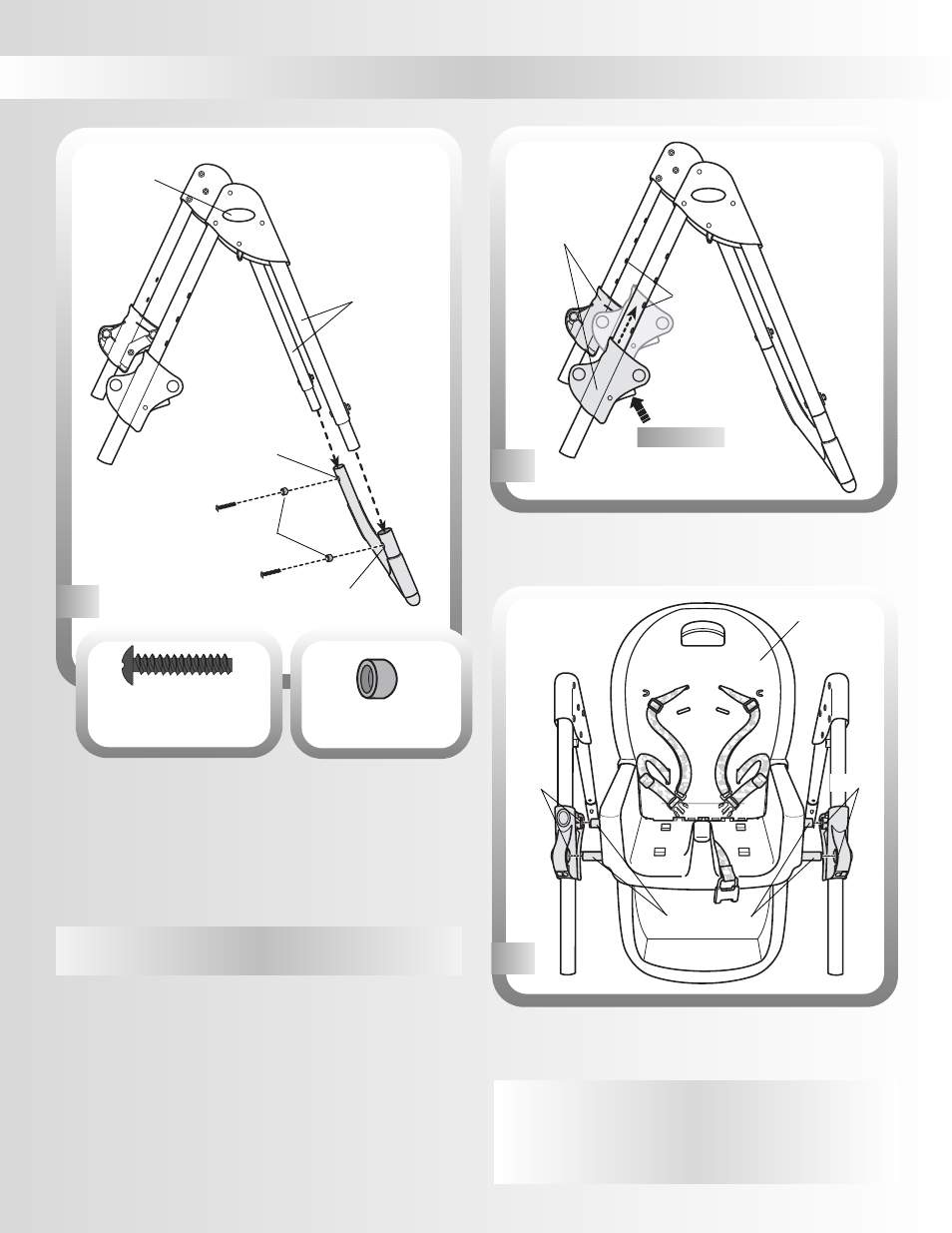

• While pressing the levers on the seat height adjusters, lift
them to position 4 on the frame front legs, as shown.
6
Seat Height
Adjusters
Position 4
• Position a frame so that the decorated side is outward.
• Insert the back legs of a frame into one of the bases.
• Fit a screw retainer over the hole in the base, as shown.
• Insert a #10 x 2.2 cm (
7 / 8 ") black screw into the screw
retainer and tighten.
• Repeat this procedure to fasten the other frame back leg
to the other side of the base with a screw retainer and
#10 x 2.2 cm (
7 /
8
") black screw.
Screw
Retainers
Frame
Back
Legs
Frame
Decorated
Side
Base Hole
Base Hole
Press Lever
8
9
• Fit the seat assembly between the two frames.
• Insert the seat bottom tubes into the sockets in each seat
height adjuster.
Seat Assembly
Seat Bottom
Tubes
Sockets Sockets
Hints:
• Be sure the seat height adjusters are in the same position
(position 4).
• You may need to push the frames apart slightly to fit the seat
bottom tubes into the seat height adjuster sockets.
10
#10 x 2.2 cm ( 7 / 8 ")
Black Screw - 2
SHOWN ACTUAL SIZE
Screw Retainer - 2
Hint: The #10 x 2.2 cm ( 7 / 8 ") black screws may have been
assembled to the screw retainers.
