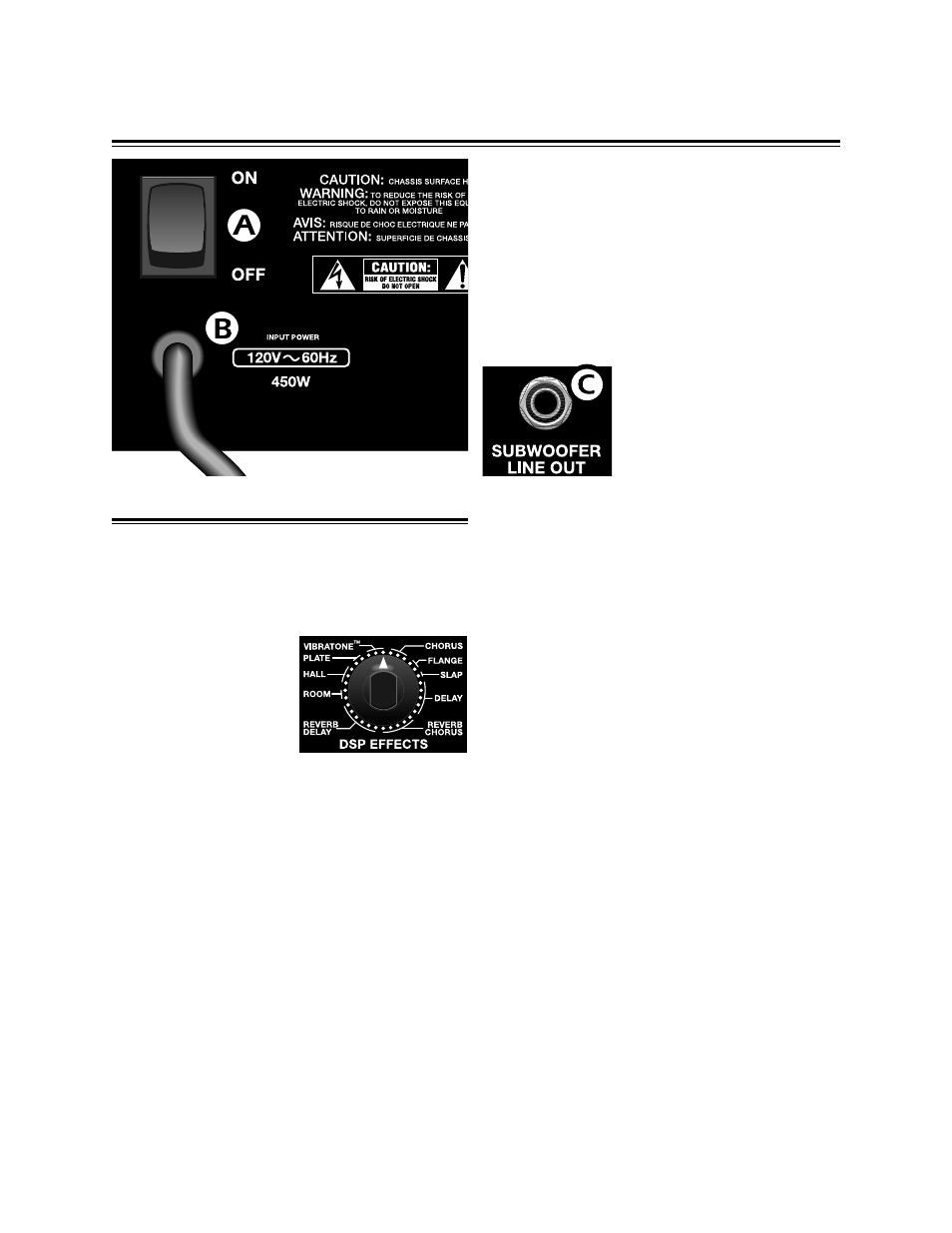

SFX KEYBOARD 200 REAR PANEL
A. POWER SWITCH - Turns the AC power ON and
OFF. When the switch is in the OFF position, the
amplifier is completely shut down.
B. LINE CORD - This amplifier is equipped with a
grounding type supply cord to reduce the possibility
of shock hazard. Be sure to connect it to a grounded
AC receptacle. The line cord should be connected to
a suitable power source in accordance with voltage
and frequency as shown in the input power rating on
the rear panel. DO NOT ALTER THE AC PLUG.
C. SUBWOOFER LINE OUT -
This 1/4 inch, balanced, TRS,
line level output jack sends low
frequency signals to an external
power amp and subwoofer
cabinet.
Below is a listing of all effects available on the SFX
Keyboard 200. To choose among these various
effects simply rotate the dial to the desired effect.
Remember both the DSP Send and DSP Return
knobs must be above their minimum positions in
order for the effect to be
heard. (To change from
slower to faster sweeps,
shorter to longer delays or
smaller to larger reverbs,
turn the DSP effects
selection knob clockwise.)
Reverb- 1 - Medium Room / Short Delay
Delay 2 - Medium Room / Medium Delay
3 - Medium Room / Long Delay
4 - Medium Hall / Short Delay
5 - Medium Hall / Medium Delay
6 - Medium Hall / Long Delay
Reverbs
Room 1 - Small
2 - Large
Hall 1 - Small
2 - Medium
3 - Large
Plate 1 - Small
2 - Large
Vibratone 1 - Slow Deep Sweep
2 - Medium Deep Sweep
3 - Fast Shallow Sweep
Chorus 1 - Slow Deep Sweep
2 - Medium Sweep
3 - Fast Shallow Sweep
Flange 1 - Slow Sweep
2 - Fast Sweep
Slap Quick, Single Echo
Delay 1 - Short Delay
2 - Short to Medium Delay
3 - Medium Delay
4 - Medium to Long Delay
5 - Long Delay
Reverb- 1 - Medium Room / Slow Sweep
Chorus 2 - Medium Room / Medium Sweep
3 - Medium Room / Fast Sweep
4 - Medium Hall / Slow Sweep
5 - Medium Hall / Medium Sweep
DSP EFFECTS CHART
