14

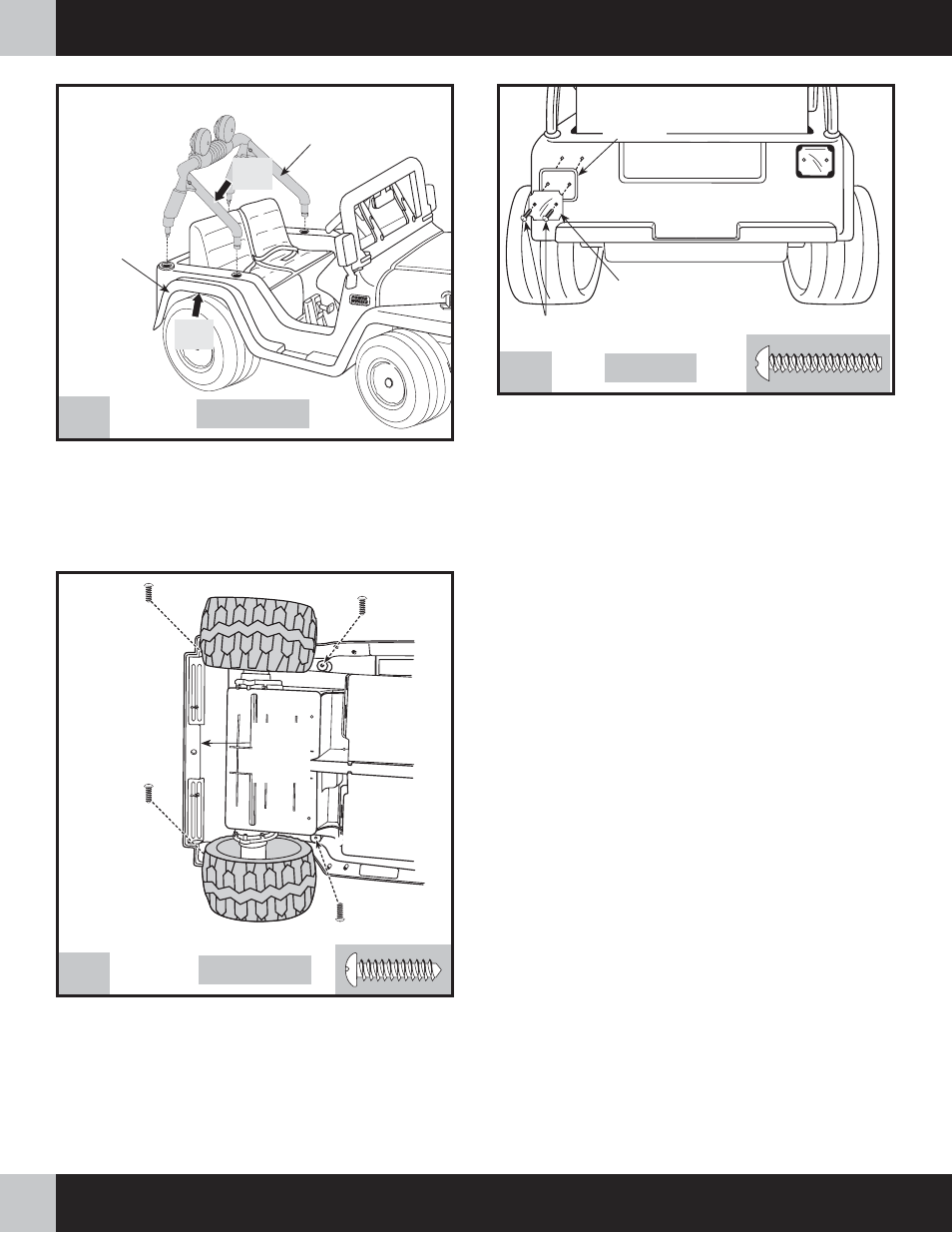

ASSEMBLY F
24
Rear of
Vehicle
• Turn the vehicle on its side.
• Insert two #10 x
3 /
4
" screws into the holes (behind the rear
wheels) in the underside of each rear wheel well, through
the vehicle body and into the ends of the sport bar. Tighten
the screws.
• Next, insert two, 10 x 3 /
4
" screws into the holes (in front of
the rear wheels) in the underside of each wheel well, through
the vehicle body and into the end of the sport bar. Tighten
the screws.
Bottom View
Sport Bar Support
Side
Fender
PULL
HERE
PUSH
HERE
23
• Fit the sport bar assembly into the holes in the top side of
the vehicle.
• Push down firmly on a sport bar support while pulling up on
the side fender to fit the sport bar into the vehicle.
• Repeat this procedure on the other side of the vehicle.
25
Taillight
Housing
Taillight
Lens
#8 x 1" Screws
• Turn the vehicle upright.
• Using safety scissors, remove the taillight lenses and the
taillight housings from the plastic connectors. Dispose of the
plastic connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against the vehicle with
the screw holes aligned, as shown.
• Insert two #8 x 1" screws through the taillight lens, housing
and into the vehicle as shown. Tighten the screws.
• Repeat this procedure to attach the other taillight assembly.
Back View
H4807pr-0922
Side View
