ASSEMBLY F
H4807pr-0922
12
Hood
Latch
Slot
Hood
Latch
Slot

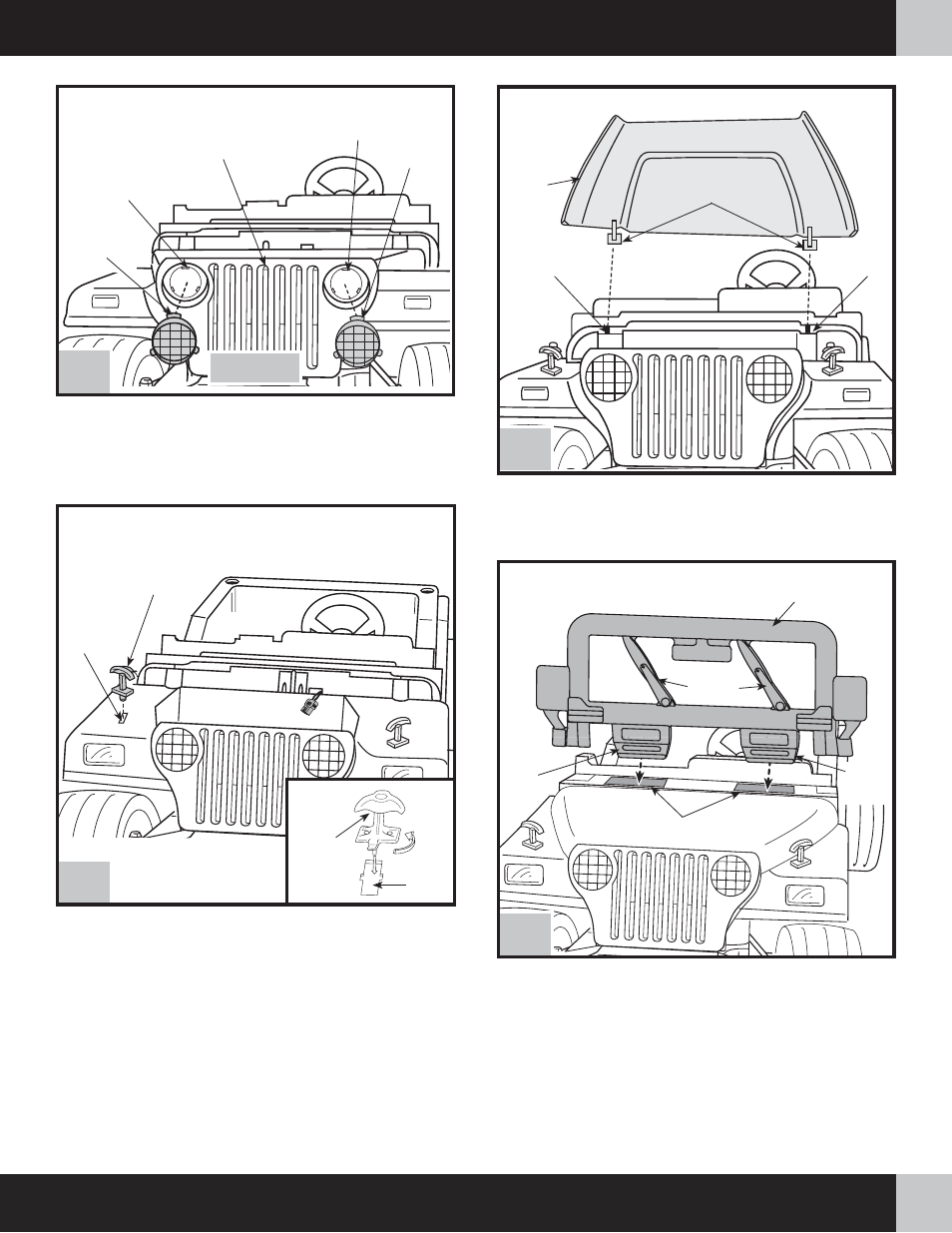

• Insert a hood latch into one of the slots in the vehicle, near
the hood area.
• Twist the base of the hood latch 1 /
4
turn to secure it in
the vehicle.
• Repeat this procedure on the other side of the hood area to
attach the other hood latch to the vehicle.
Grille
Tab
Tab
Slot
Slot
• Fit a lens assembly tab into the headlight slots in the grille.
• Press firmly to snap the lens assembly into the grille.
• Repeat this procedure to snap the other lens assembly into
the grille.
11 Front View
• Position the windshield so that the wipers face the front end
of the vehicle.
• Insert and “snap” the two large tabs on the windshield into
the large slots in the dash.
• Pull up on the windshield to be sure it is secure.
Windshield
Wipers
Large
Tab Large
Tab
Large Slots
14
Hood
Tabs
• Insert the tabs on the hood into the slots in the front end of
the vehicle.
• Pull the hood forward and lower it closed.
Slot Slot
