ASSEMBLY F
H4807pr-0922
20

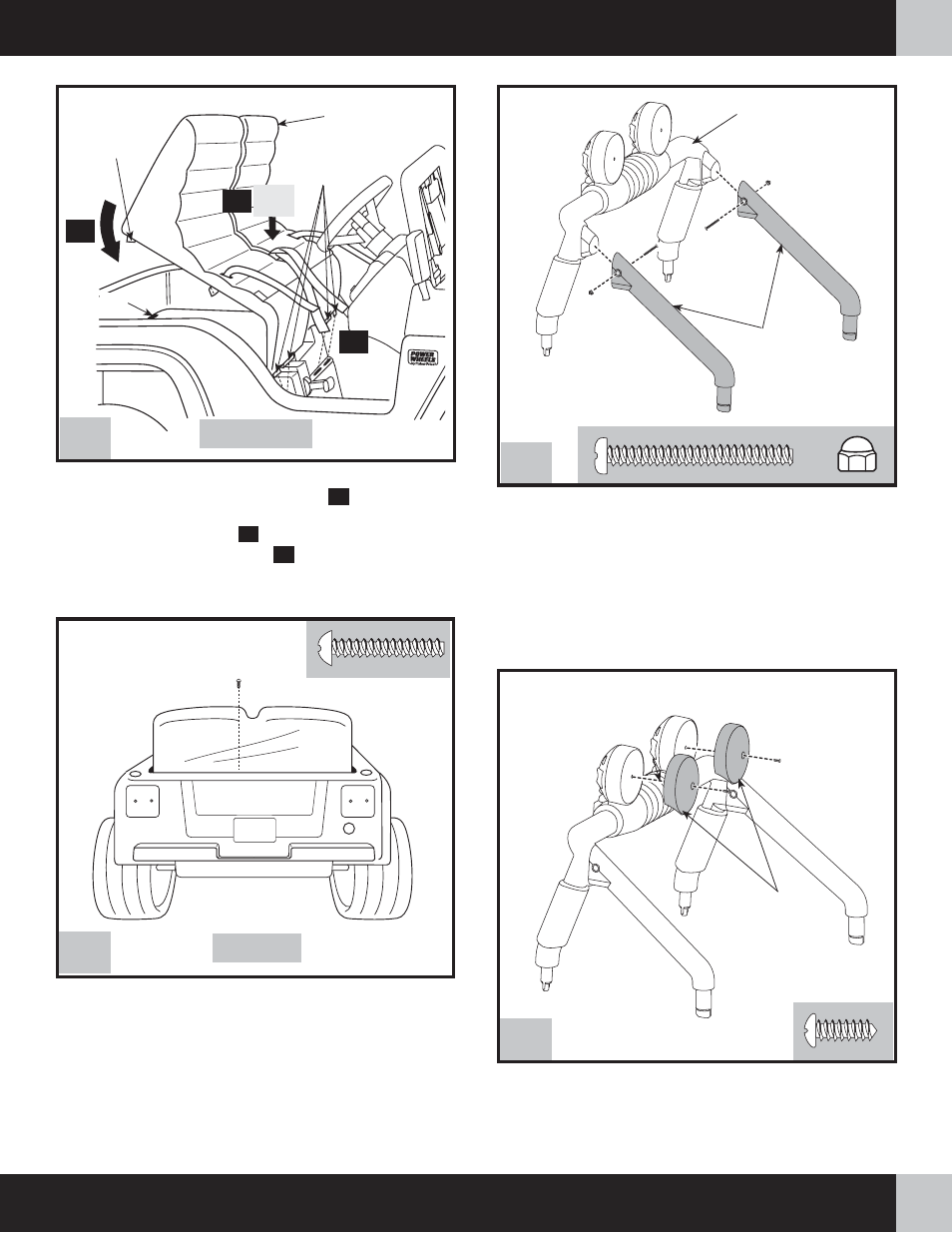

• Insert a #8 x 1" screw into the rear edge of the seat. Tighten
the screw.
• With the seat at an angle, insert the tabs on the front edge of
the seat into the slots in the foot-well wall A .
• Push down firmly on the edge of the seat above each tab to
snap the tabs into the slots B .
• Rotate the back of the seat down C to snap the seat back
tabs into the slots in the vehicle. Push down firmly on the
seat back.
19
Seat
Seat Back
Tabs
Slot
Tabs
A
B
C
Side View
PUSH
HERE
22
• Fit the light covers to the top of the sport bar, as shown.
• Insert a #10 x
1 /
2
" screw into each light cover. Tighten the screws.
Light
Covers
• Fit a support to one side of the sport bar.
• Insert a #8 - 32 x 1.625" screw through the support, the sport
bar and out through the support.
• Fit an #8 acorn lock nut to the end of the screw.
• While holding the acorn lock nut with an adjustable wrench
(or pliers), tighten the screw.
• Repeat this procedure to fasten the other support to the
sport bar.
21
Sport Bar
Supports
Back View
