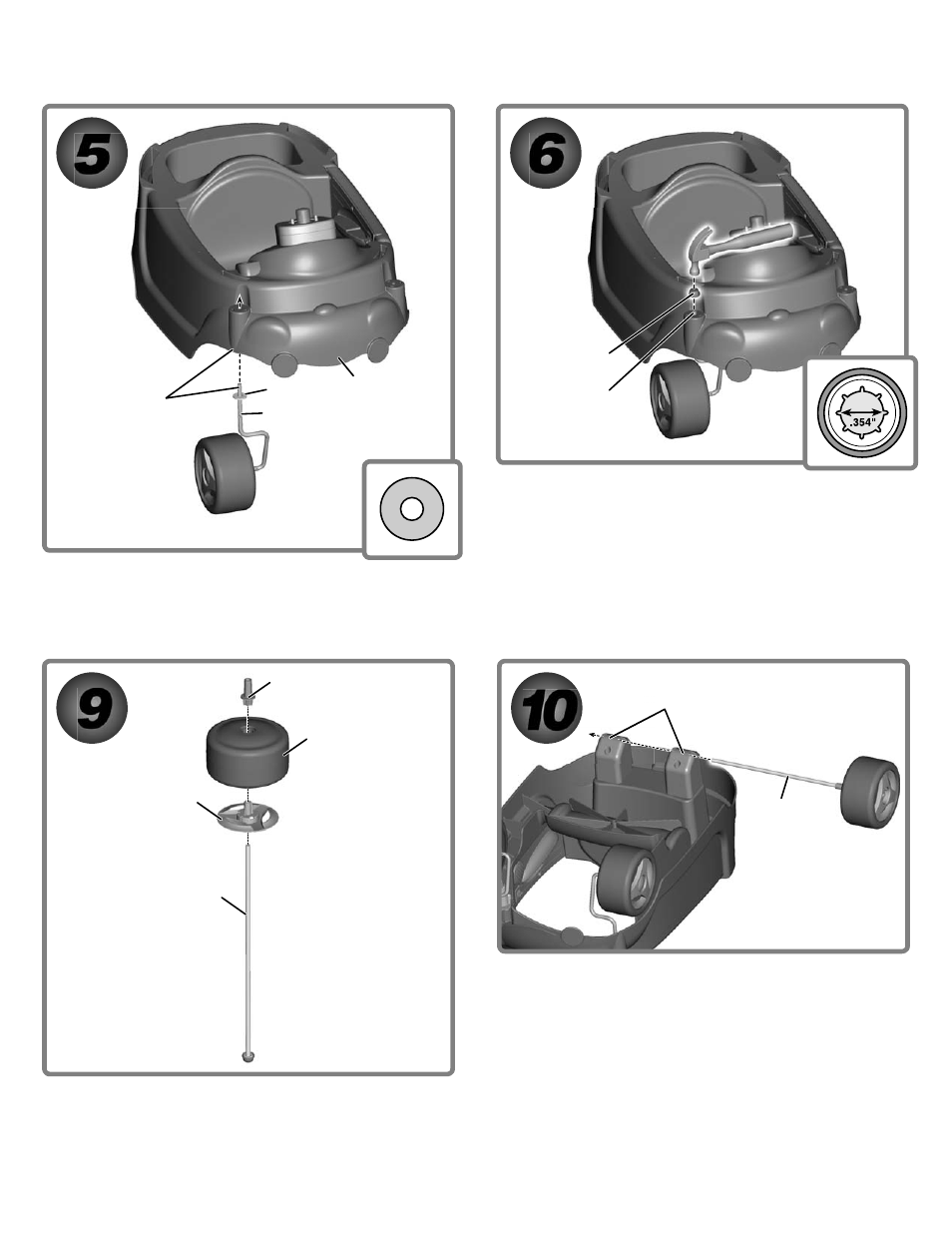

• Slide a hubcap, post side up, onto the rear axle.
• Next, slide a wheel, smooth side up, onto the rear axle.
• Then, slide a rear bushing, short end down, onto the rear axle.
Hubcap
Rear Axle
Rear Bushing
Wheel
• First, slide a 3 /
16 16
” washer onto the front axle.
• Then, insert the front axle labeled 2 up through the hole in the
front end of the frame also labeled 2.
• Fit a cap nut onto the end of the front axle, as shown.
• Tap the cap nut with a hammer.
• Gently pull the front wheel down to be sure the cap nut is
securely attached to the front axle.
• Repeat assembly steps 2-6 to assemble the front axle labeled 1,
a wheel, a front bushing, a 3 /
16 16
” washer, two cap nuts and a
wheel cover.
Cap Nut
Front Axle 3 /
16 16
” Washer
Front Axle
Frame Front End
2
FRONT VIEW
9
5 6
Assembly Assembly
• Slide the rear axle through the holes in the axle mounts.
Rear Axle
Axle Mounts Ax
10
