26 OF 1400 EQ Router

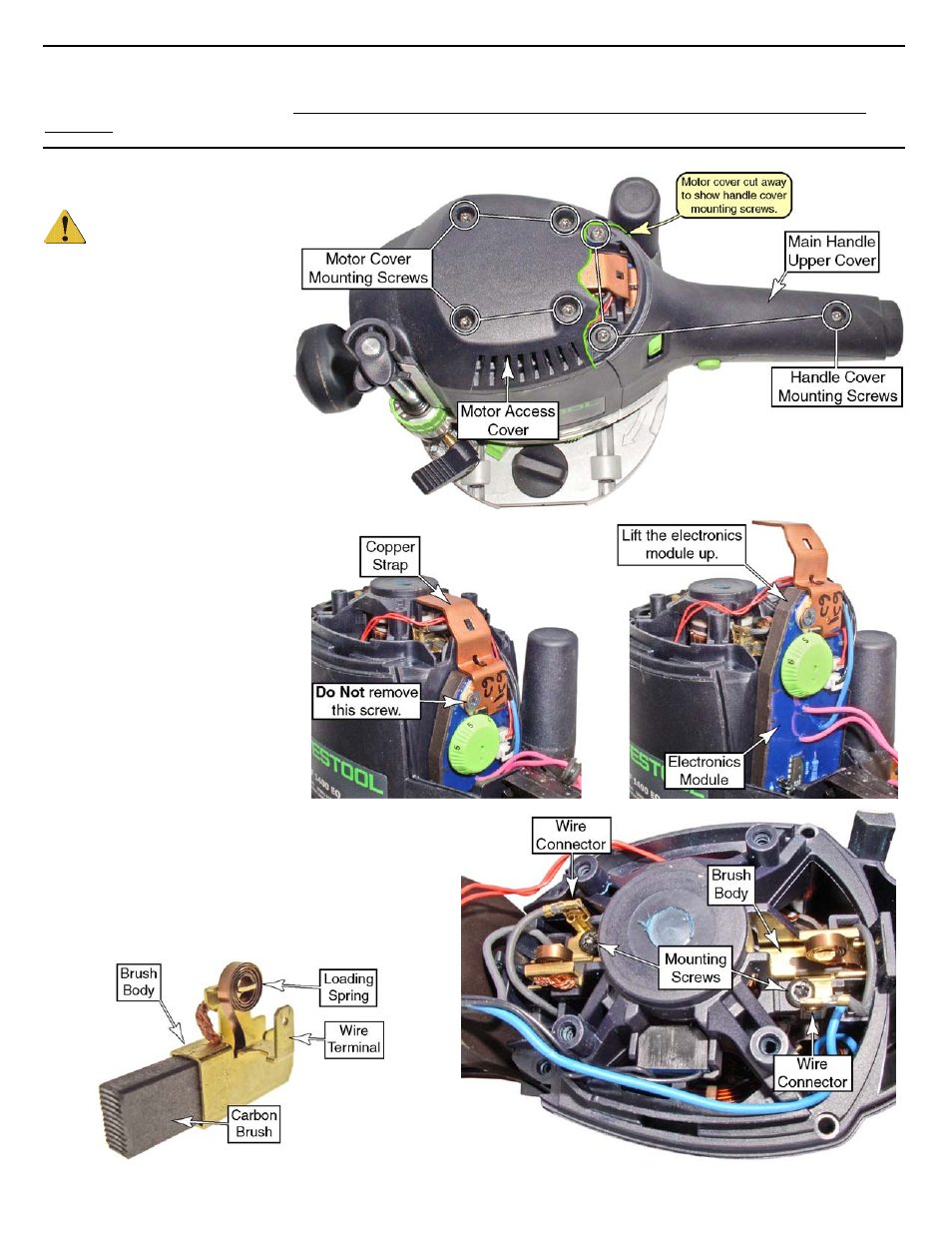

r Brushes Changing the Moto
The motor brushes wear out over time and need to be replaced by an authorized service center. Festool does not condone
brush replacement by the end-user. Completion of this procedure by an unauthorized service center will void the tool's
warranty.
Removal Procedure
CAUTION! Make sure the
power cord is unplugged
before beginning this
procedure.
1. Remove the four screws that
secure the access cover to the
motor, and remove the cover.
2. Remove the three screws that
secure the upper cover to the
main handle, and remove the
cover.
3. To access one of the two brushes,
you will need to remove the
electronics module.
a. Make note where the wires
are routed.
lift up on the
il it is free
do not remove it
completely.
b. Very carefully,
copper strap unt
from the retaining tab.
c. Slide the electronics module
up, but
4. Lift the wire connectors off the terminals on the
brushes.
5. Remove the screw that secures each brush to the
motor housing. Be careful not to drop the screws
into the motor.
6. Carefully lift the brushes straight up to remove
them.
