3.2 Mounting
C141-E224 3-3
3.2 Mounting
For information on mounting, see the "FUJITSU 2.5-INCH HDD
INTEGRATION GUIDANCE (C141-E144)."
(1) Orientation

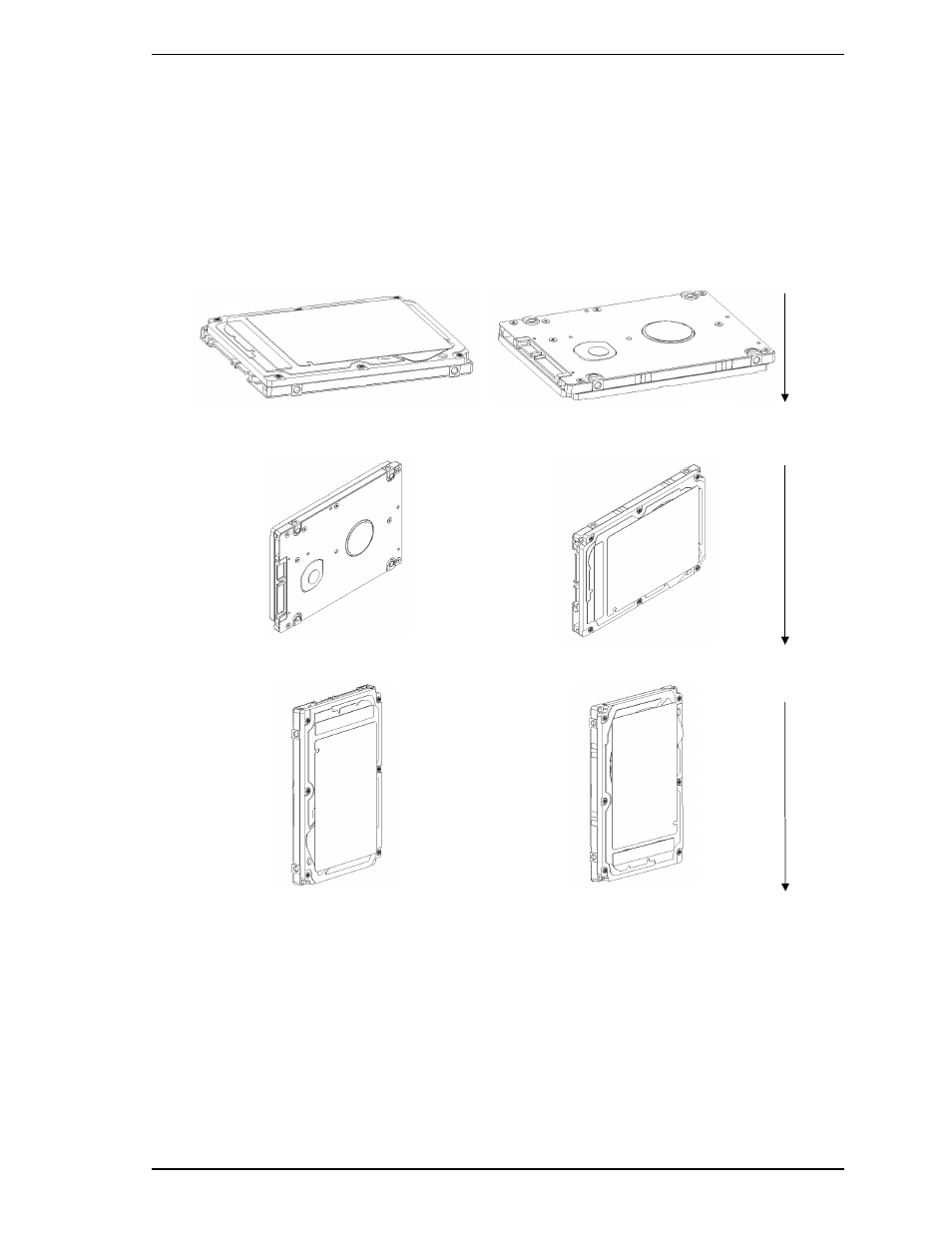

Figure 3.2 illustrates the allowable orientations for the disk drive.
(a) Horizontal –1 (b) Horizontal –2
(c) Vertical –1
(d) Vertical –2
(e) Vertical –3 (f) Vertical –4
Figure 3.2 Orientation
gravity
gravity
gravity
