To turn navigation data on or off
Press the [F1] key if its function is set for DISP
DATA (default setting), or select DATA DISP
on the menu.
3.5 Displaying Navigation Data
Navigation data can be displayed at the screen
bottom if this radar receives navigation input
in IEC 1162 format. Navigation data include;
¡ Position in latitude and longitude or Loran-
C time difference
¡ Range, bearing and time-to-go to both
waypoint selected on the navigator and the
cursor
¡ Speed.
(If the navigation input includes destination
data, waypoint position is denoted on the radar
display by a dashed ring.)

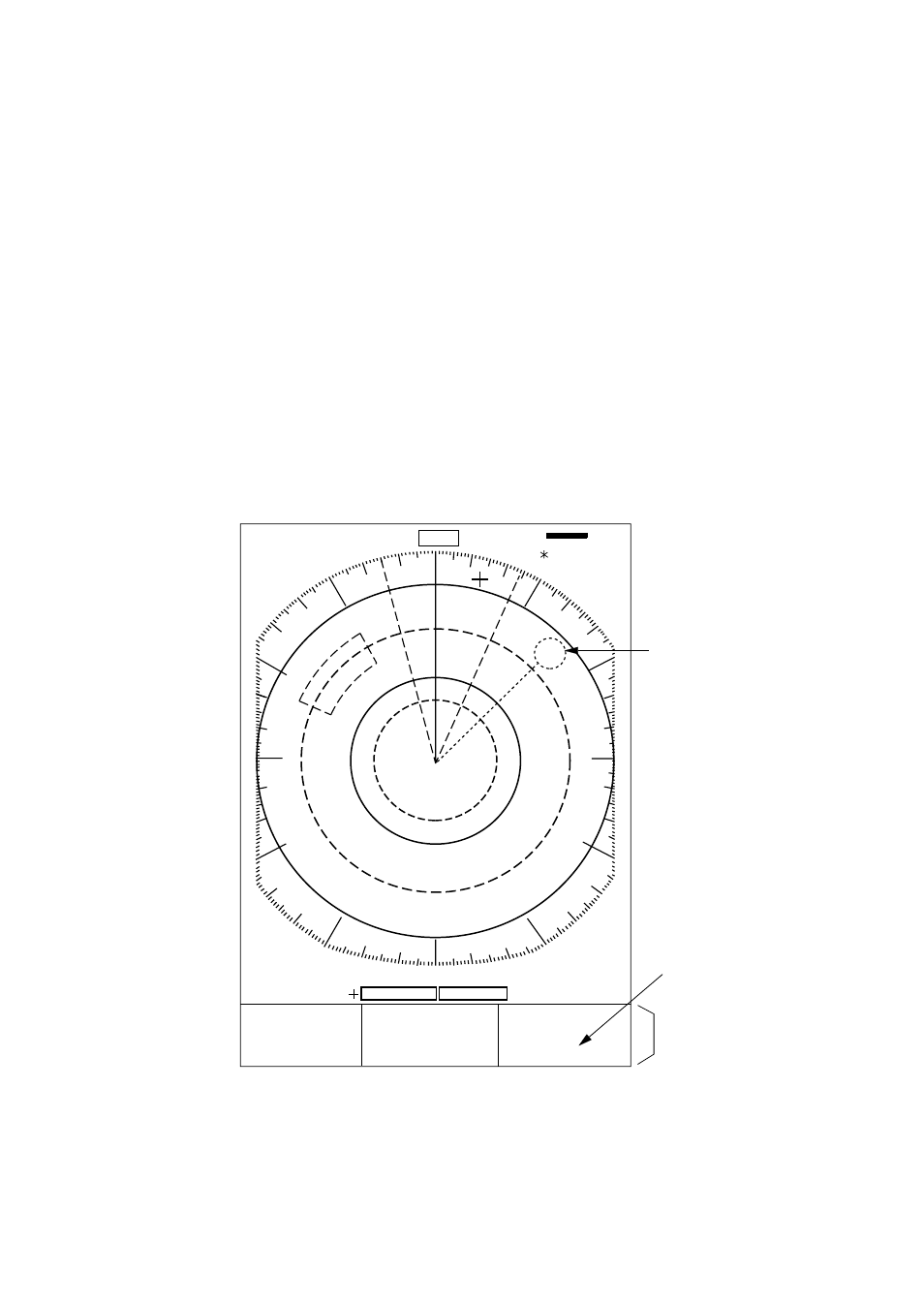

Figure 3-6 Typical navigation data display
