2-9
To cancel, press the [EBL OFFSET] key.
VRM1
EBL1
bearing
70.0° R
VRM
4.5 NM VRM1
range
EBL1
A
B

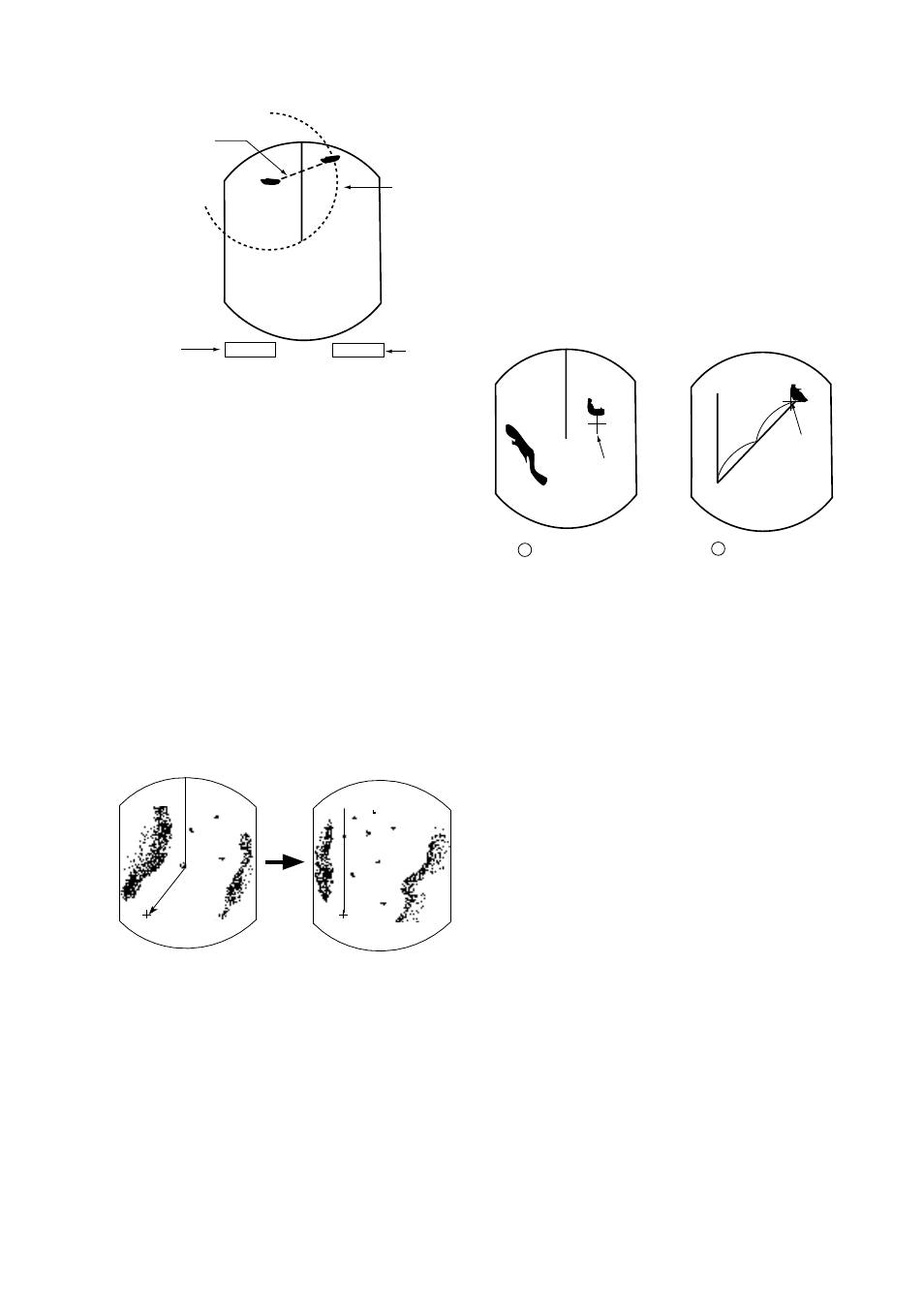

Figure 2-12 Measuring the range and bearing
between two targets by using the offset EBL
2.17 Shifting (off centering) the
Your vessel’s position can be shifted up to 75%
of the range in use to view the situation around
your vessel without changing the range or size
of targets.
1. Operate the trackball to set cursor where de-
sired.
2. Press the [SHIFT/ZOOM] key.
OFFCENTER appears at the top right cor-
ner of the display when the picture is shifted.
Cursor Cursor
1 Place cursor
where desired.
2 Press SHIFT ZOOM
key to off center display.
Figure 2-13 Shifting the picture
Cancelling shifted picture
Press the [SHIFT/ZOOM] key again.
2.18 Zoom
The zoom feature allows you to double the size
of the area between your vessel and any loca-
tion within the current range to take a closer
look at an area of interest.
1. Select location with the cursor.
2. Press and hold down the [SHIFT/ZOOM]
key about two seconds. ZOOM appears at
the top right corner when the zoom function
is on.
Cursor
Place cursor
where desired. 1 2 Press [F1] to zoom.
Cursor
Figure 2-14 Zoom function
Note: Zoom is cancelled when range or
presentation mode is changed.
Cancelling zoom
Press the [SHIFT/ZOOM] key again.
