Assembly
3

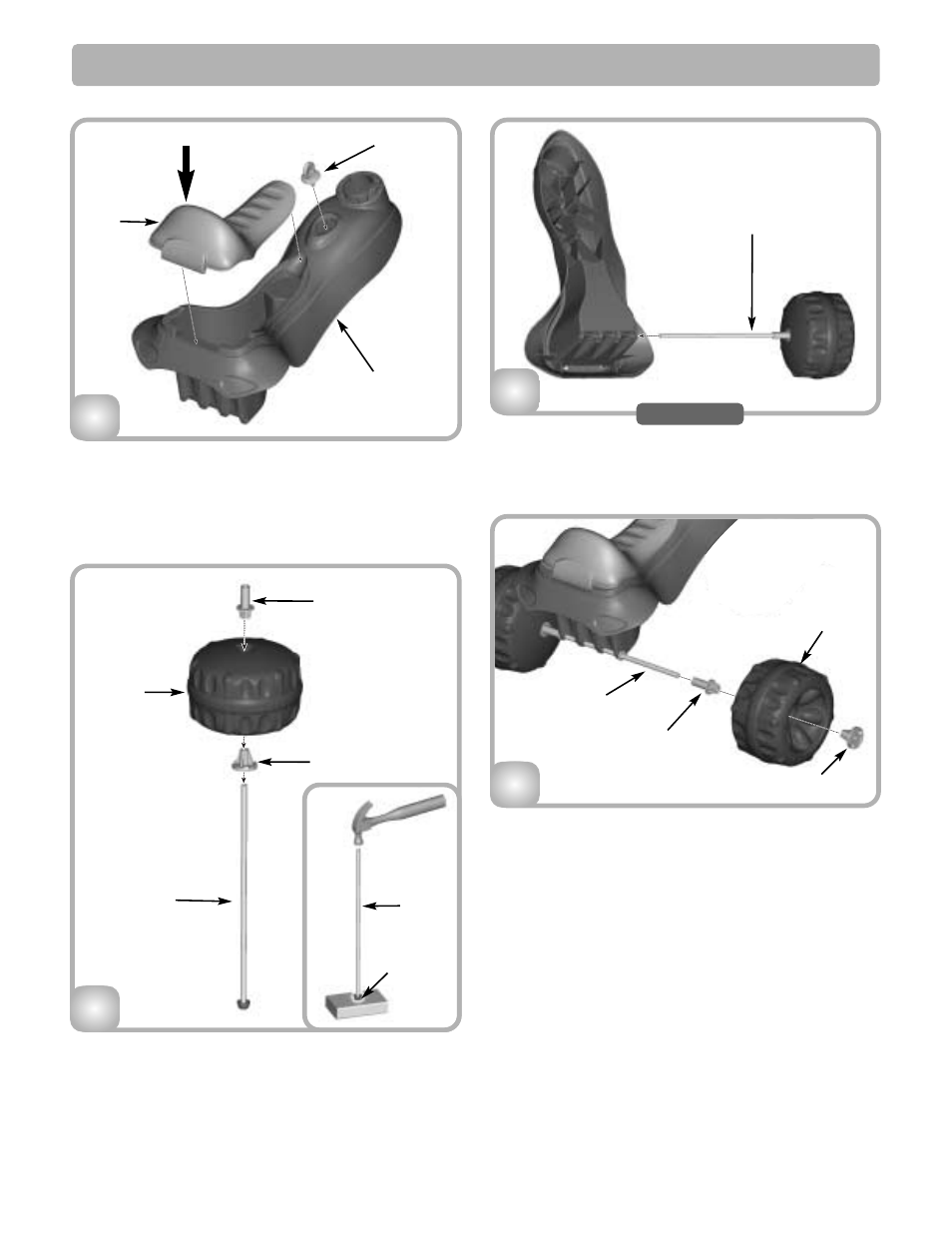

Straight Axle Assembly
Bottom View
• Turn the frame upside down.
• Insert the straight axle assembly through the holes in
the rear of the frame.
• Turn the assembly upright.
• Slide a bushing, smooth side first, onto the end of the
straight axle.
• Slide a wheel, flat side first, onto the end of the
straight axle.
• Slide a wheel hub, pointed end first, onto the end of
the straight axle.
Bushing
(Smooth Side First)
Wheel Hub
(Pointed End First)
Wheel
(Flat Side First)
Straight Axle
3
4
Frame
Seat
PUSH
Wheel Hub
(Flat Side Down)
Bushing
(Grooved Side Down)
Key
• Place one end of the straight axle into the cap nut.
Tap the end of the straight axle with a hammer.
Make sure the cap nut is securely attached to the
straight axle.
• Slide a wheel hub, flat side down, onto the straight axle.
• Slide a rear wheel, indented side down, onto the
straight axle.
• Slide a bushing, grooved side down, onto the
straight axle.
• Fit the seat onto the frame.
• Push firmly near the back end of the seat to "snap" it
into place.
• Insert and "snap" the key into the frame.
Hint: You may need to tap the key with a hammer to
secure it in place.
Straight
Axle
Straight
Axle
Cap Nut
Rear
Wheel
(Indented
Side Down)
1
2
