2-3

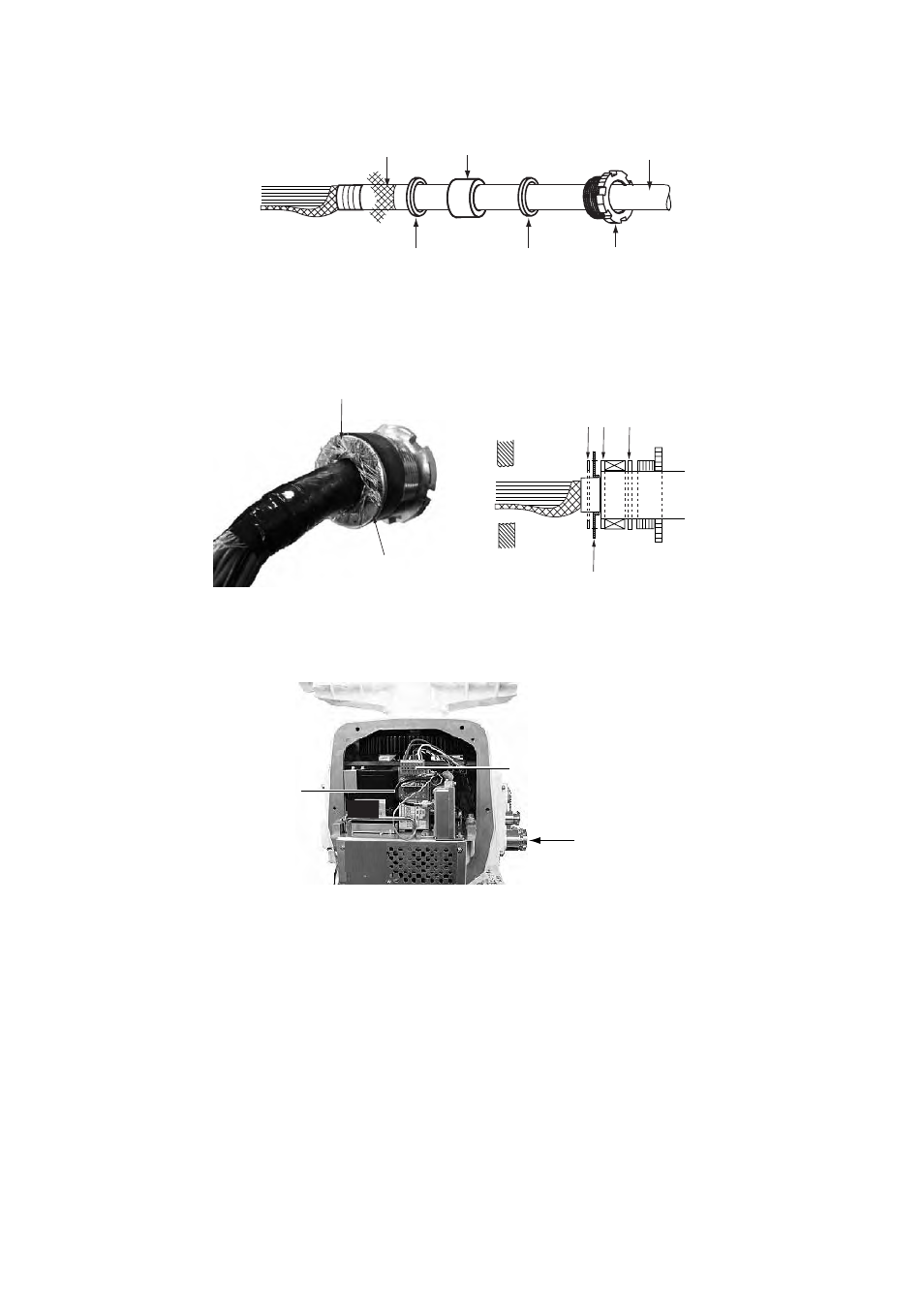

4. In the order shown in the figure below, pass the gland nut, flat washers (3 pcs.) and gasket onto
the signal cable.
5. As shown in the figure below, fold back the armor onto flat washer (2) and insert remaining
armor through flat washer (3). Cut off the part of the armor that protrudes past the flat washers
(2) and (3).
6. Lead the signal cable through its cable gland and then into the chassis. Coat the threaded part
of gland nut with sealant (supplied) and then tighten the nut.
Antenna unit, front view
Gasket
Signal cable
Gland nut Flat washer
(1) Flat washer
(2)
Armor
Fold back armor
Cut off armor that protrudes
past flat washer.
(3)
Flat washer
(2) (1)
Flat washer (2)
Cable gland for
signal cable (RW-9600)
PCB 03P9436
TB801
