Furuno FAR-2157-D User Manual
Page 14
1-6
How to mount the antenna unit
Seal washer
Corrosion-
proof rubber
mat
Hex bolt
Hex nut
Spring washer
Spring washer
Ground
wire
Flat washer
Hex bolt
Hex nut
Spring washer
Flat washer
Ground
wire

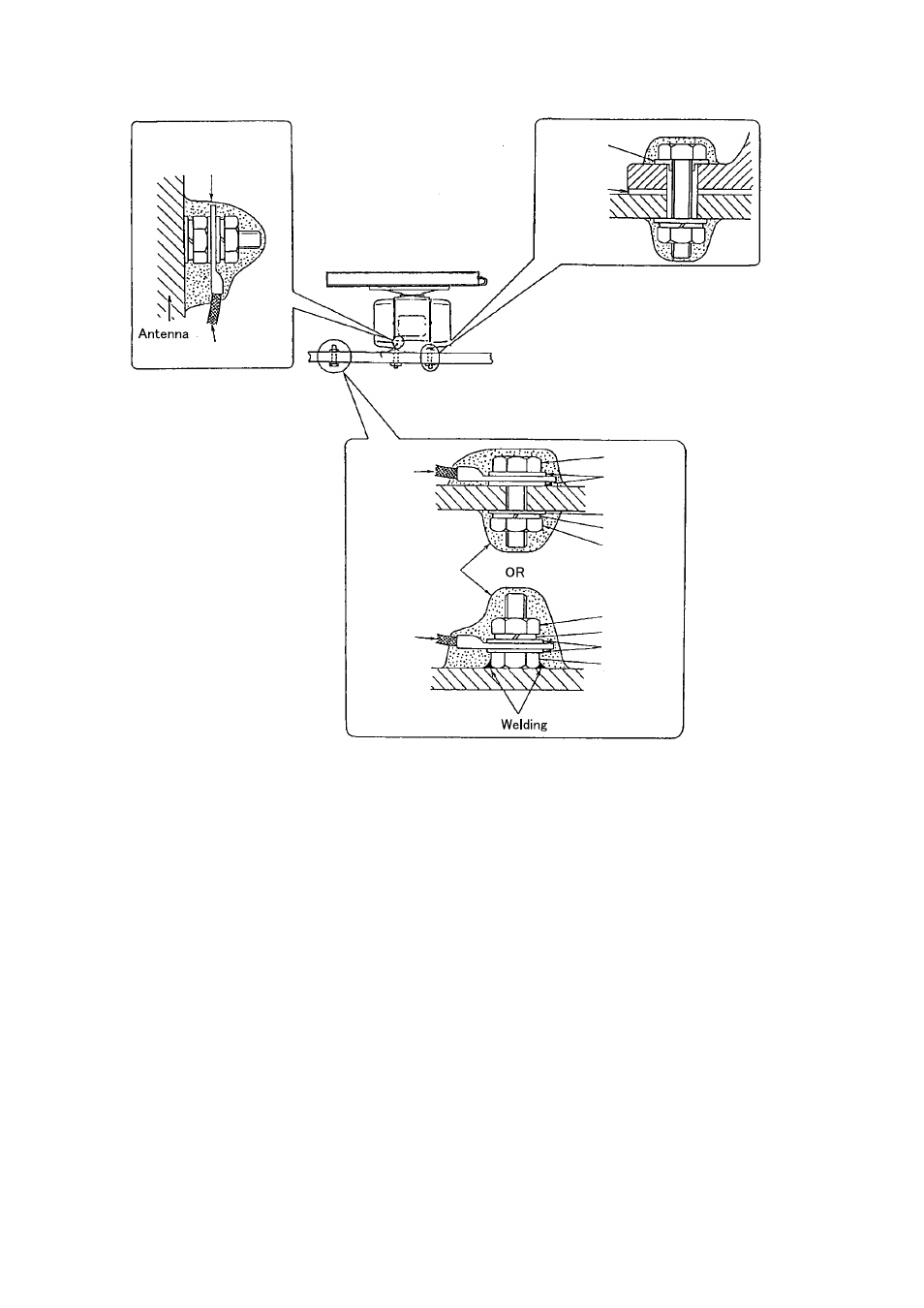

Lay rubber mat, fix
antenna with bolts, nuts
and seal washers.
Coat with anticorrosive
sealant.
Ground wire
Ground terminal is provided
on antenna unit.
Anticorrosive
sealant
Coat with
anticorrosive sealant.
