H7332pr-0920
3

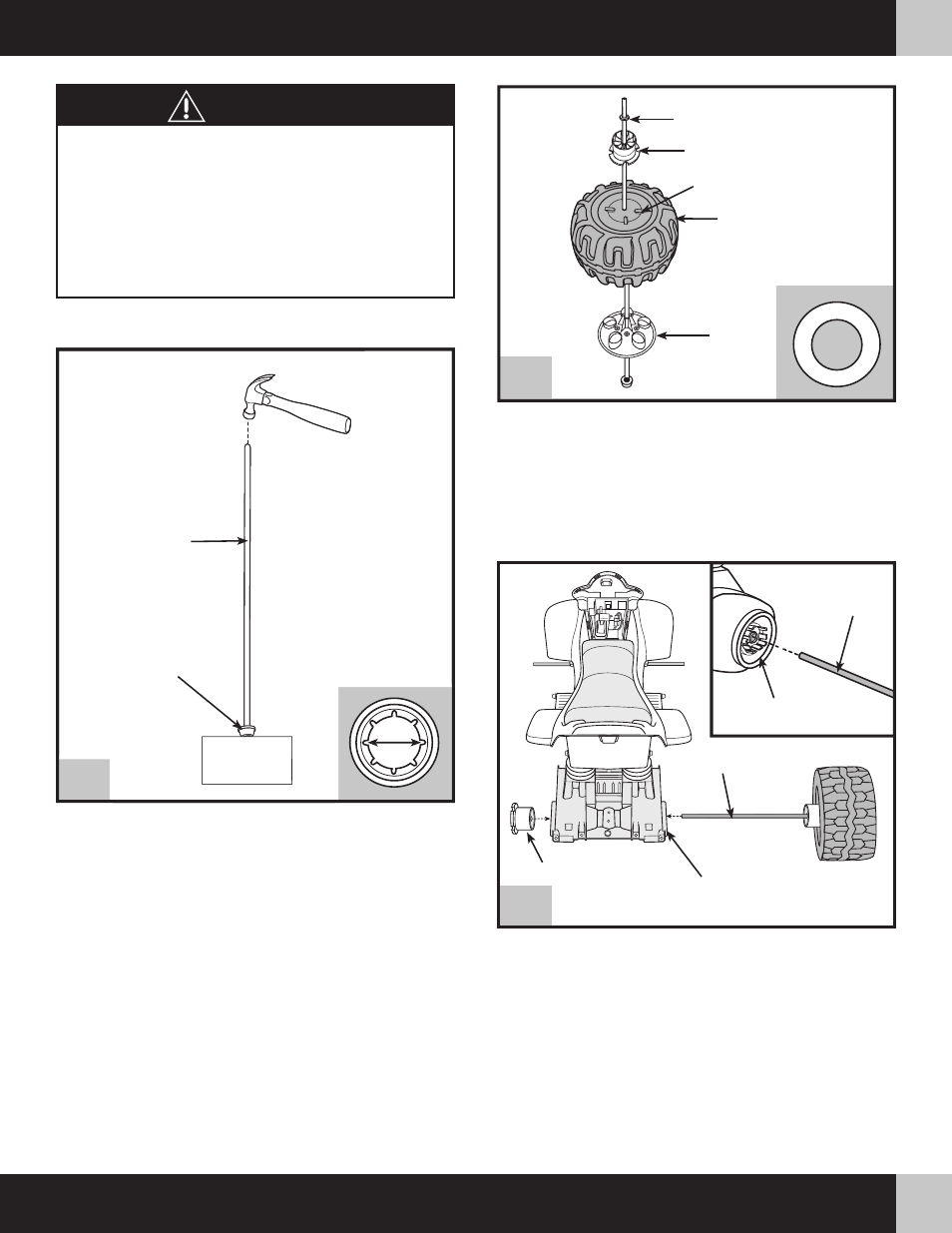

• Slide a hubcap, indented side down, onto the rear axle.
• Slide a wheel onto the rear axle. Make sure the ribs on the wheel
face up.
• Slide a rear wheel driver, ring side down, onto the rear axle. Fit the
grooves on the rear wheel driver onto the ribs on the wheel.
• Slide a 7 /
16
" washer onto the rear axle.
• Position the vehicle upright. Face the back end of the vehicle.
Hint: You will need to temporarily hold the remaining rear wheel driver
onto the motor assembly to properly position the rear axle assembly
into the motor assembly.
• Fit and hold the remaining rear wheel driver against the motor pins
on one end of the motor assembly, as shown.
• While holding the rear wheel driver in place, slide the rear axle
assembly into the hole in the opposite side of the motor assembly.
Make sure the rear wheel driver on the rear axle assembly fits onto
the pins in the motor assembly.
• Slide the rear wheel driver off the end of the rear axle.
Children can be harmed by small parts,
sharp edges and sharp points in the vehicle's
unassembled state, or by electrical items.
Care should be taken in unpacking and
assembly of the vehicle. Children should
not handle parts, including the battery,
or help in assembly of the vehicle.
WARNING
9
ASSEMBLY F
2
H7332pr-0920
Rib
Wheel
Rear Wheel Driver
Hubcap
7 /
16
" Washer
Rear Axle Assembly
Rear Axle
Motor Assembly Pins
Rear Wheel Driver
Motor Assembly
• Fit a .437 cap nut onto one end of the rear axle.
• Tap the other end of the rear axle with a hammer to secure the cap
nut on the end of the rear axle.
Hint: You may want to position the cap nut on a scrap block of wood
to protect the assembly surface.
1
Rear Axle
.437 Cap Nut
.437"
