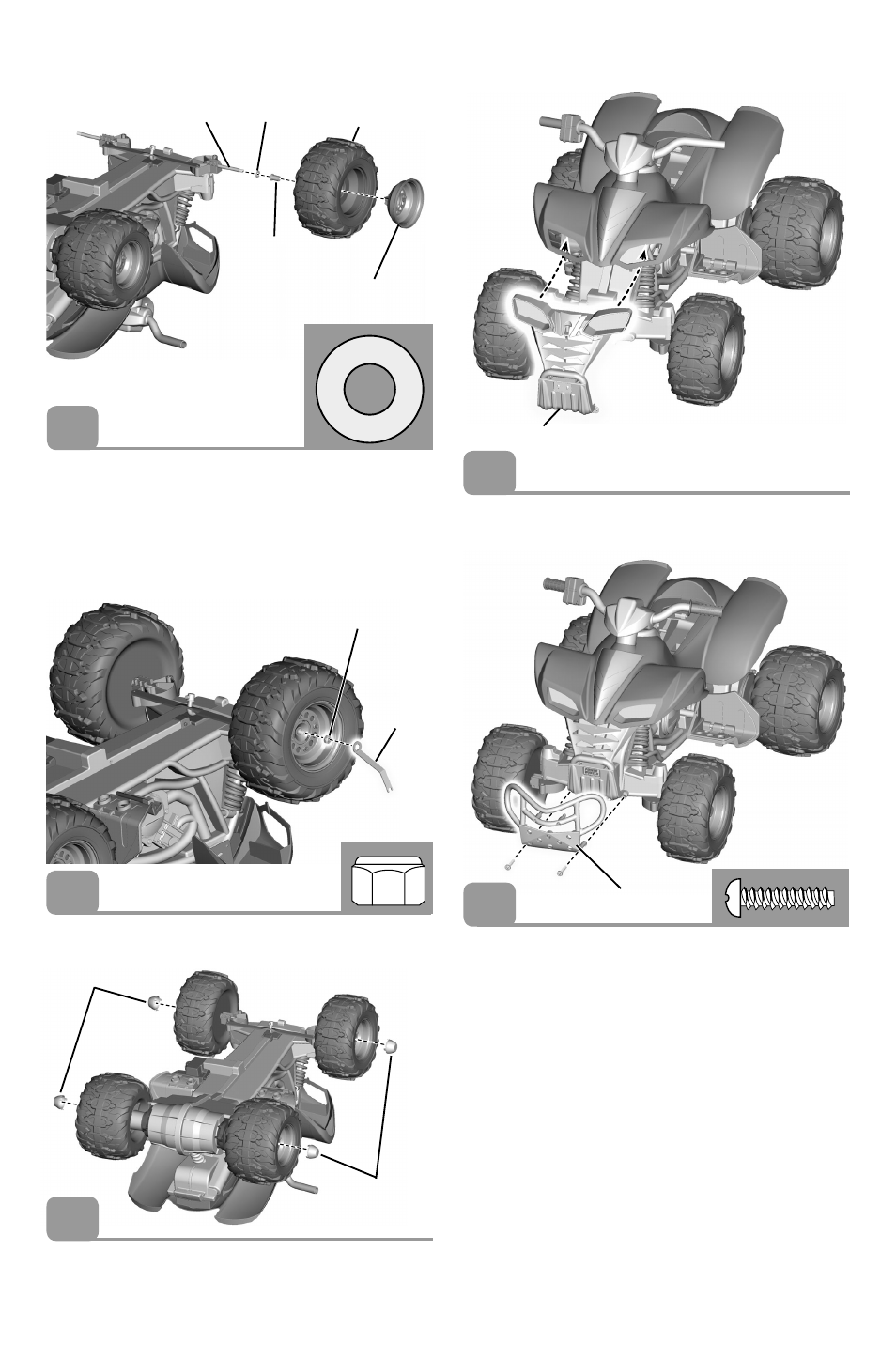

ASSEMBLY
• Fit the front clip onto the front of the vehicle, as shown.
Hint: The front clip may be factory assembled.
Front Clip
FRONT VIEW
• “Snap” a hubcap onto the center of each wheel cover.
• Turn the vehicle upright.
12
10
11
Hubcaps
Hubcaps
• Fit a 3 /
8
" (1 cm) - 16 hex nut onto each end of the front
axle. Tighten both hex nuts with the wrench.
Wrench
3 /
8
" (1 cm) -16 Hex Nut
• Slide a 7 /
16
" (1,1 cm) washer onto the front axle.
• Slide a bushing, ring end first, onto the front axle.
• Locate a front wheel. Slide the wheel, flat side first,
onto the front axle.
• Slide a wheel cover, indented side out, onto the front axle.
• Repeat this procedure on the other side of the vehicle.
Front Axle Washer
Bushing
(Ring End First)
Front Wheel
(Flat Side First)
Wheel Cover
(Indented Side Out)
9
13
• Fit the brush guard onto the front clip.
• Insert two #8 x
3 /
4
" (1,9 cm) screws into the lower
holes in the brush guard and tighten.
Brush Guard
