ASSEMBLY
Plate

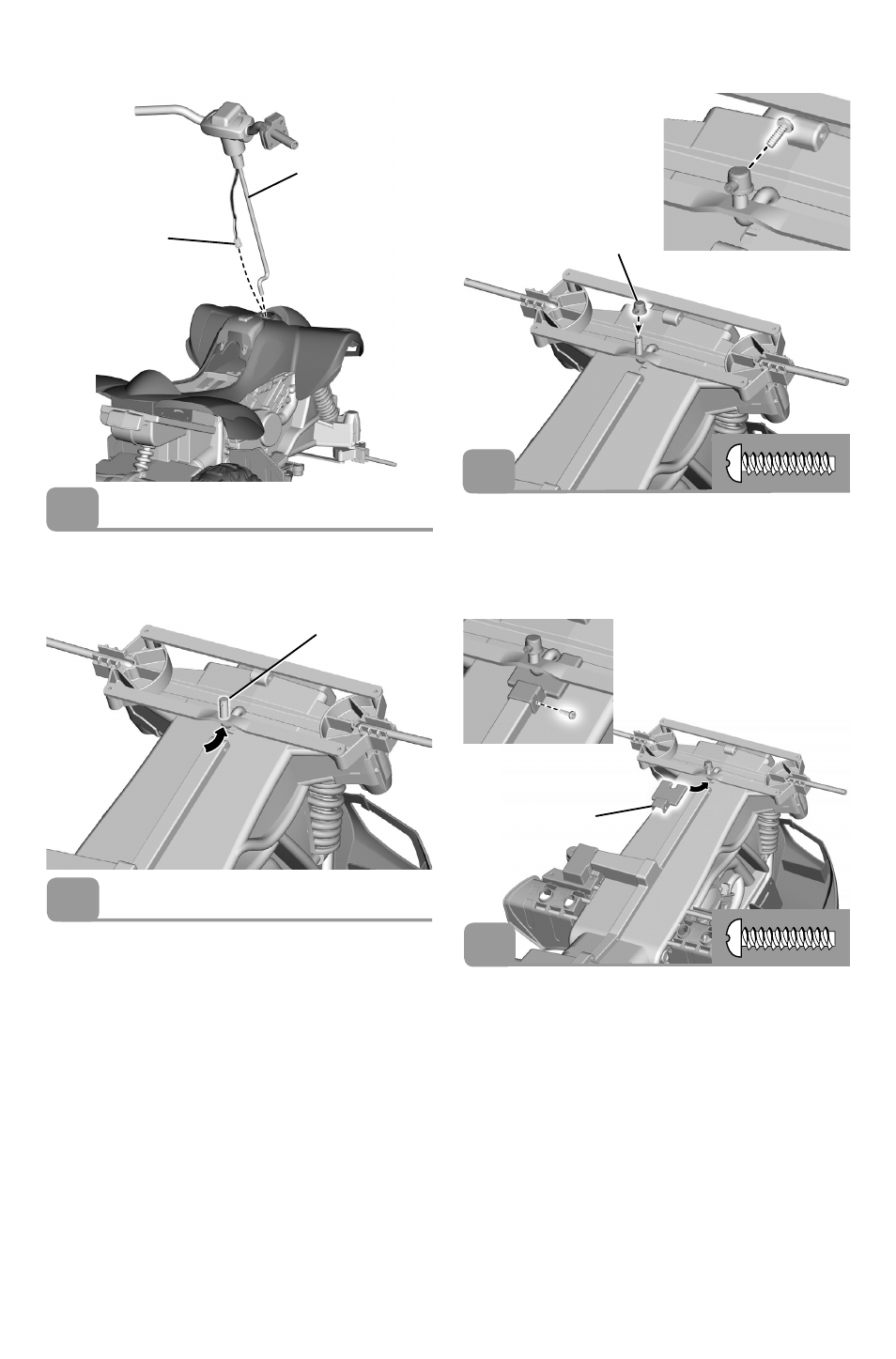

• Fit the steering column cap onto the end of the
steering column.
• Insert a #8 x 3 /
4
" (1,9 cm) screw through the large
opening in the steering column cap and into the hole
in the steering column. Tighten the screw.
8
• Slide the plate under the steering column, as shown.
• Insert a #8 x
3 /
4
" (1,9 cm) screw into the plate and tighten.
6
7
• While holding the handlebar in place, carefully turn the
vehicle over. Check to be sure the steering column fits
through the hole in the steering linkage.
BOTTOM VIEW
Steering Column Cap
Steering Column
BACK VIEW
• Turn the vehicle upright.
• Fit the handlebar steering column and connector down
through the large opening in the front end of the vehicle.
Steering Column
Connector
