744
HART Mode Users Guide
8
Communication Operations
Figure 2 shows the HART Mode menu tree. Availability of
some elements in the menus depends on which
transmitter you are using, and whether the transmitter is
configured by itself on a current loop or in a multidrop
connection.
Viewing Process Variables

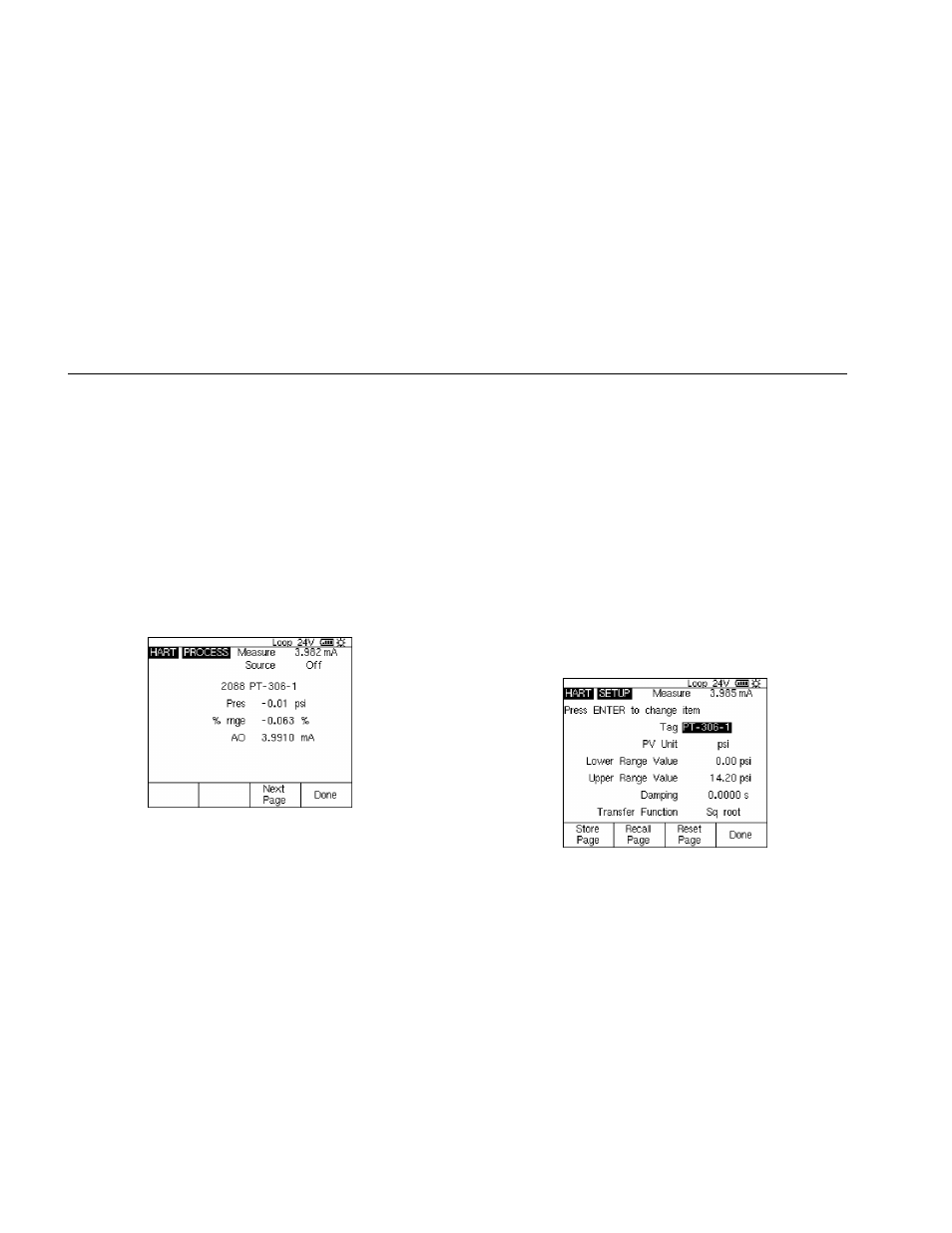

From the Active Device screen press the Process softkey
to view more device variables and their continuously
updated values. To see additional information, press the
Next Page softkey.
Setup Operations
The Setup softkey provides access to the following five
setup functions:
•
Basic
•
Sensor
•
Device Identification
•
HART Output
•
HART Information
Basic
From the Active Device screen press the Setup and Basic
softkeys to access the read/write Basic Setup screen. You
can use this screen to clone a transmitter as described at
the end of this manual.
