4
Mounting using the optional
mounting bracket
A mounting bracket for fastening the antenna
unit to a mast on a sailboat is optionally
available (Type OP03-93, Code
No.008-445-080).
Name Type Code No. Qty
Hex. bolt M4X12 000-804-725 4
Hex. bolt M8X20 000-805-707 8
Mounting
plate 03-018-90
01-0 100-206-740 1
Support
plate (1) 03-018-90
05-0 100-206-780 1
Support
plate (2) 03-018-90
06-0 100-206-790 1
Bracket (1) 03-028-91
01-0 100-206-810 1
Bracket (2) 03-028-91
02-0 100-206-820 1
Fixing plate 03-028-91
03-0 100-206-830 2
1. Remove mounting hardware at the bottom
of the antenna base. You may discard the
hardware. Assemble the mounting bracket
and fasten it to a mast. Fasten the antenna
unit to the bracket.

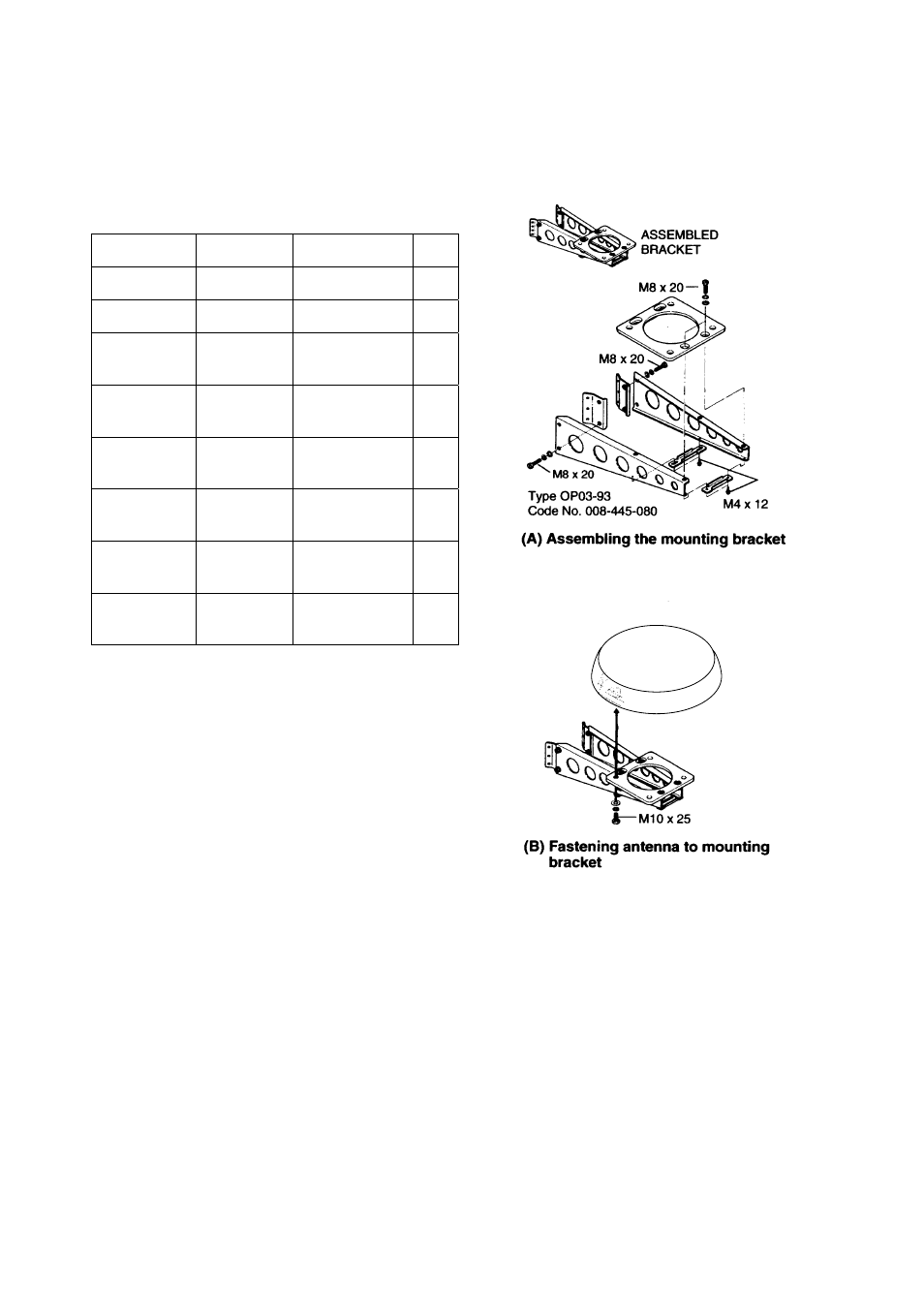

Figure 11 How to assemble and mount the
optional mounting bracket
2. Refer to previous steps 3-14 in "Mounting
on a platform".
