15
2.1 Displaying the Optional
Mode Menu
The Optional mode mainly contains less-of-
ten used functions which once preset do not
require frequent adjustment. You can access
the Optional mode menu as follows:
1. Turn off the equipment.
2. Press the POWER key while pressing any
key. The following display appears.
t : SELF TEST
s : CLEAR MEMORY
t : DEMO
OPTIONAL MODE
SELECT MODE

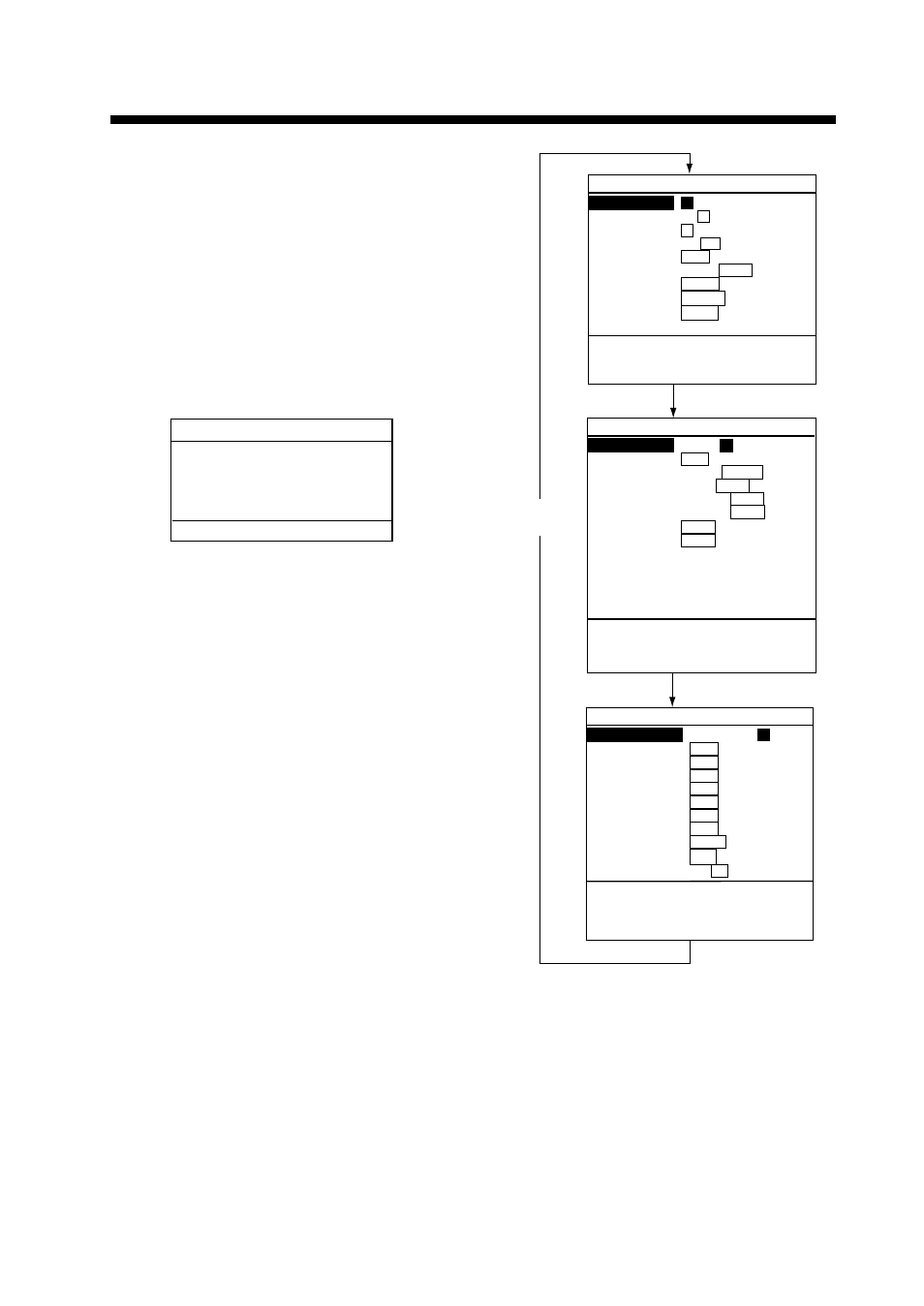

Figure 2-1 Optional mode selection display
3. Operate the Cursor Pad to select mode
desired.
Note: SELF TEST and CLEAR
MEMORY are explained in the chapter
on maintenance.
4. To escape from the Optional mode, turn
off the power.
Note: Wait at least five seconds before reap-
plying the power.
2.2 System Menu
There are three system menus: system menu
1, system menu 2, and system menu 3.
1. Press the MENU ESC key.
2. Press ▼ key to select GO TO SYSTEM
MENU.
3. Press sat the GO TO SYSTEM MENU.
The System menu 1 appears.
4. With the cursor selecting MENU, oper-
ate the Cursor Pad to select system menu
desired.
SYSTEM MENU 2
▲▼ : To select item
ts : To set condition
ESC: ESCAPE
(ADJUSTABLE OWN SENSOR ONLY)
OWN SENSOR
SPEED
— —. — kt — —. —
°
F
OWN SENSOR
TEMPERATURE
SYSTEM MENU 3
▲▼ : To select item
ts : To set condition
Press s at MENU 1.
Press t
at MENU 3.
Press s at MENU 2.
SYSTEM MENU 1
▲▼ : To select item
ts : To set condition
MENU
DEPTH UNIT
SPEED UNIT
TEMP UNIT
ZOOM MARK
F/A LEVEL
TEMP GRAPH
LANG
MENU
NAV DSP
NMEA
BEARING
SPD SEL
TMP SEL
SPD ADJ
TMP ADJ
MENU
BASIC RANGE1
RANGE2
RANGE3
RANGE4
RANGE5
RANGE6
RANGE7
RANGE8
ZOOM RANGE
B/L RANGE
1 2 3
15 ( 7~1500)
30 ft
60
120
200
400
600
1500
30
10 20
1 2 3
m ft fa pb
kt MPH km/h
°
C
°
F
OFF ON
WEAK MED STRG
OFF ON
English
1 2 3
OFF L/L R/B CSE
Ver1.5 Ver2.0
TRUE MAG
OFF OWN NMEA
OFF OWN NMEA
0 %
[-50 ~ +50]
0.0
°
F [-20 ~ +20]
ESC: ESCAPE
ESC: ESCAPE
DISP SEL GRAI GRA2
DRAFT 0.0 [-20~ +20]
Figure 2-2 System menus
OPTIONAL MODE
