Page 55
44

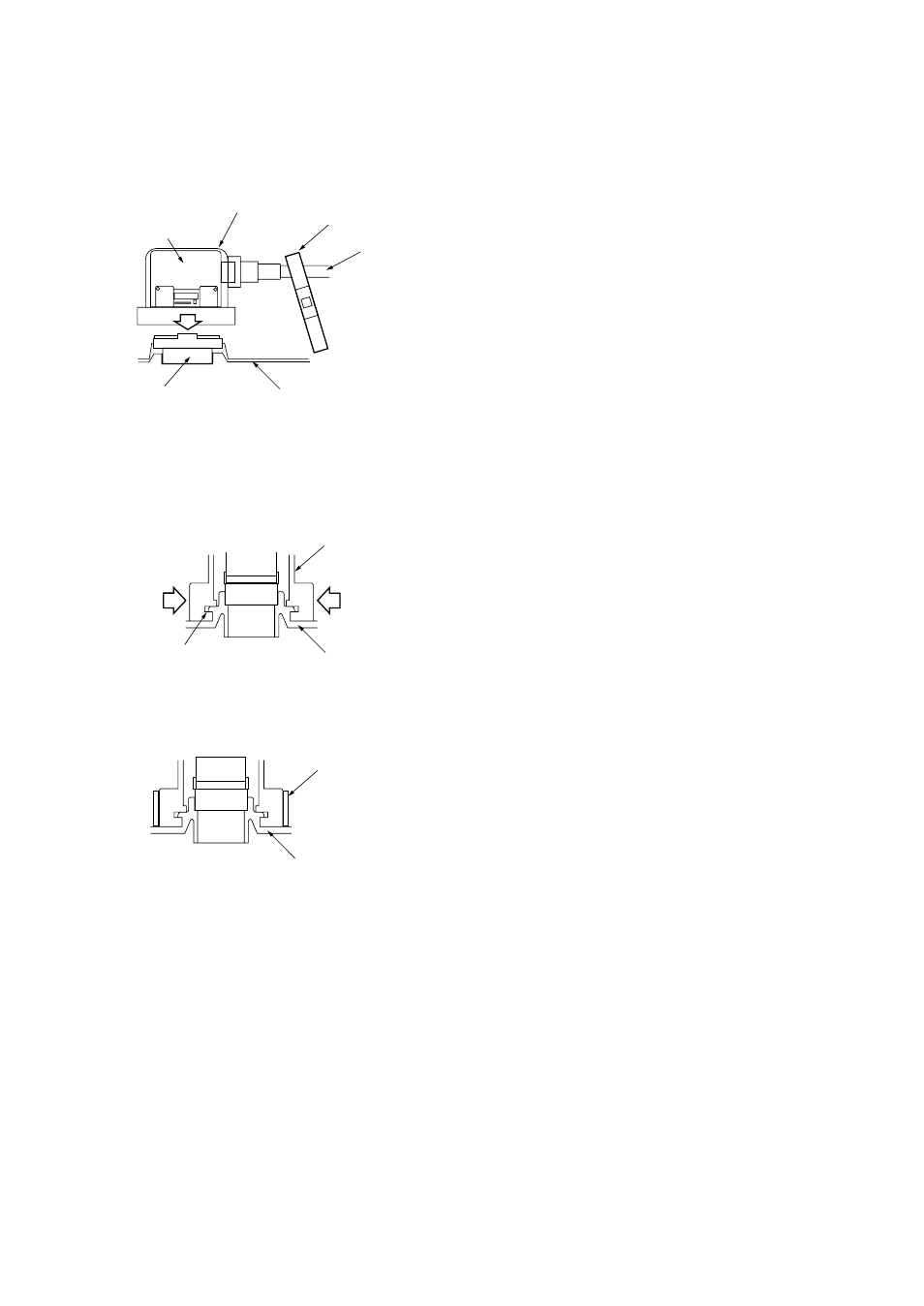

5.10 Signal cable connection
1. Connect the signal cable to DJ-1 on the
rear panel of the display unit.
Rubber cover
DJ Connector
Boot-band
Cable
Display unit
DJ-1
2. Cover the connector with the rubber
cover. The projection on the connector
base is inserted into the groove on the
rubber cover.
Display unit
Rubber cover
Grasp
Grasp
Groove
3. Put the boot-band as shown below, and
tighten it.
Display Unit
Boot-band
