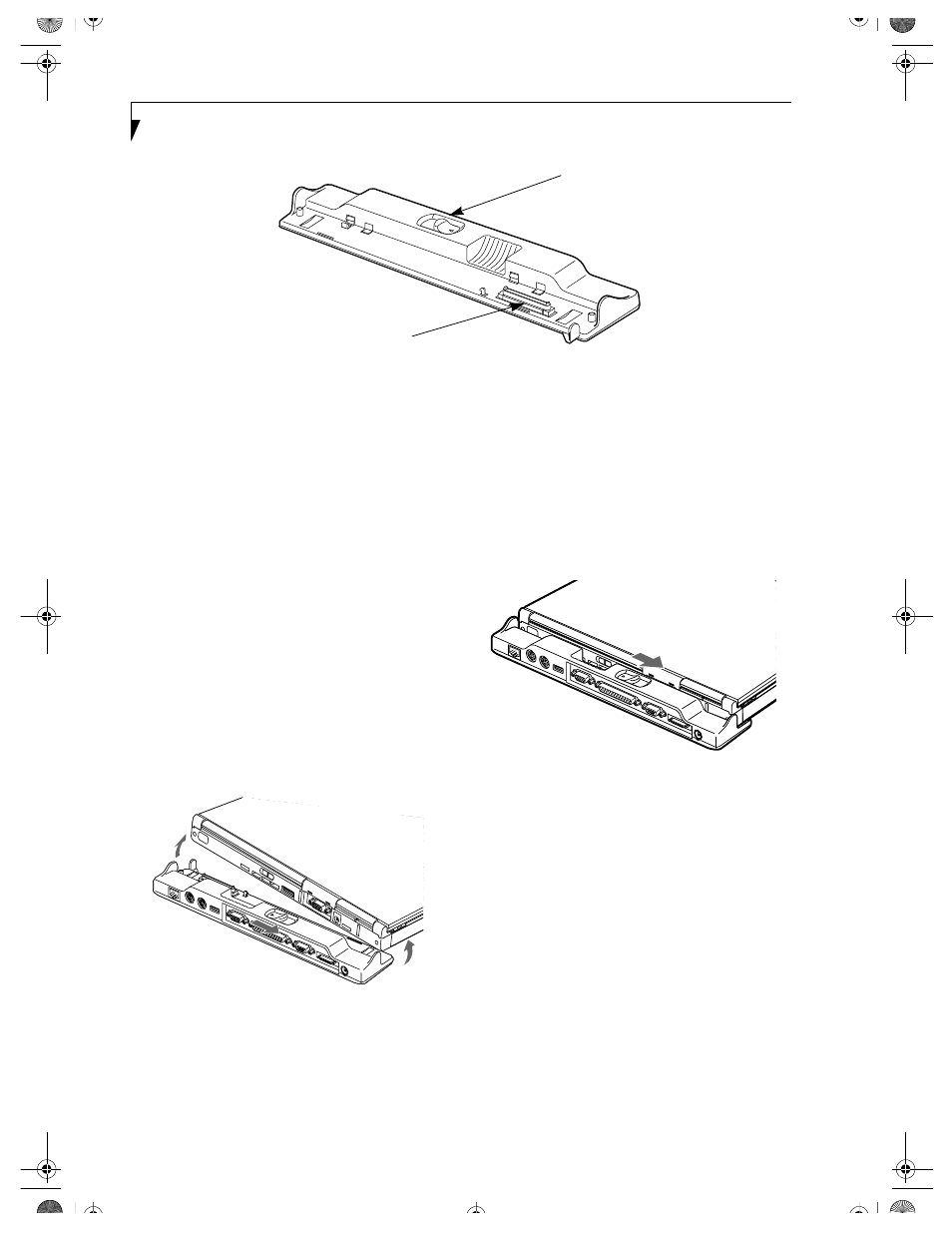

Figure 4-13 Port Replicator front panel
FRONT PANEL COMPONENTS
The following is a brief description of your Port
Replicator’s front panel components.
Docking Port
The docking port connects the Port Replicator to your
notebook. (Figure 4-13)
Port Replicator Release Latch
Slide the Port Replicator Release button to remove the
Port Replicator from your notebook. (Figure 4-13)
ATTACHING THE PORT REPLICATOR
The Port Replicator can be attached on your notebook
while the power is on, while in suspend mode, or while
the power is off. To attach the Port Replicator follow
these easy steps:
1. Align the Port Replicator connector on the lower
surface of your notebook with the connector on top
of the Port Replicator.
2. Push your notebook down to connect it to the Port
Replicator securely. (Figure 4-14)
Figure 4-14 Attaching the Port Replicator
DETACHING THE PORT REPLICATOR
The Port Replicator can be detached from your note-
book while the power is on, while in suspend mode, or
while the power is off. To detach the Port Replicator
follow these easy steps:
1. Slide the Port Replicator’s release button to the right
to release the lock. (Figure 4-15)
2. Lift up your notebook to detach it from the
Port Replicator.
Figure 4-15 Detaching the Port Replicator
Docking Port
Port Replicator Release Latch
