Page 20

3-11

3.7 Gas Conversion: Procedures (cont.)

Vessel Assembly

Gas Valve

Manifold Support Bracket

Gas Burner

See Detail A

Pressure

Test

Spigot

Orifice

Temperature

Control

Gas

Manifold

Assembly

1/2—3/4 Reducer

Bushing

Burner

Gas Manifold

Burner/Orifice Location

Detail A

Orifice

1.30-inch [33-mm]

1.63-inch [41-mm]

3.8 Gas Conversion Components

Use the following components to convert from natural gas to propane and vice-versa.

SR52G Natural Gas to Propane Components

QTY REF

DESCRIPTION

TJ013

“RED”

Pilot orifice

4 14-0067-2

Burner orifice, #53

(diameter: 1.51 mm)

1 Label

Appareil réglé pour: G31/37

Fryer equipped for: G31/37

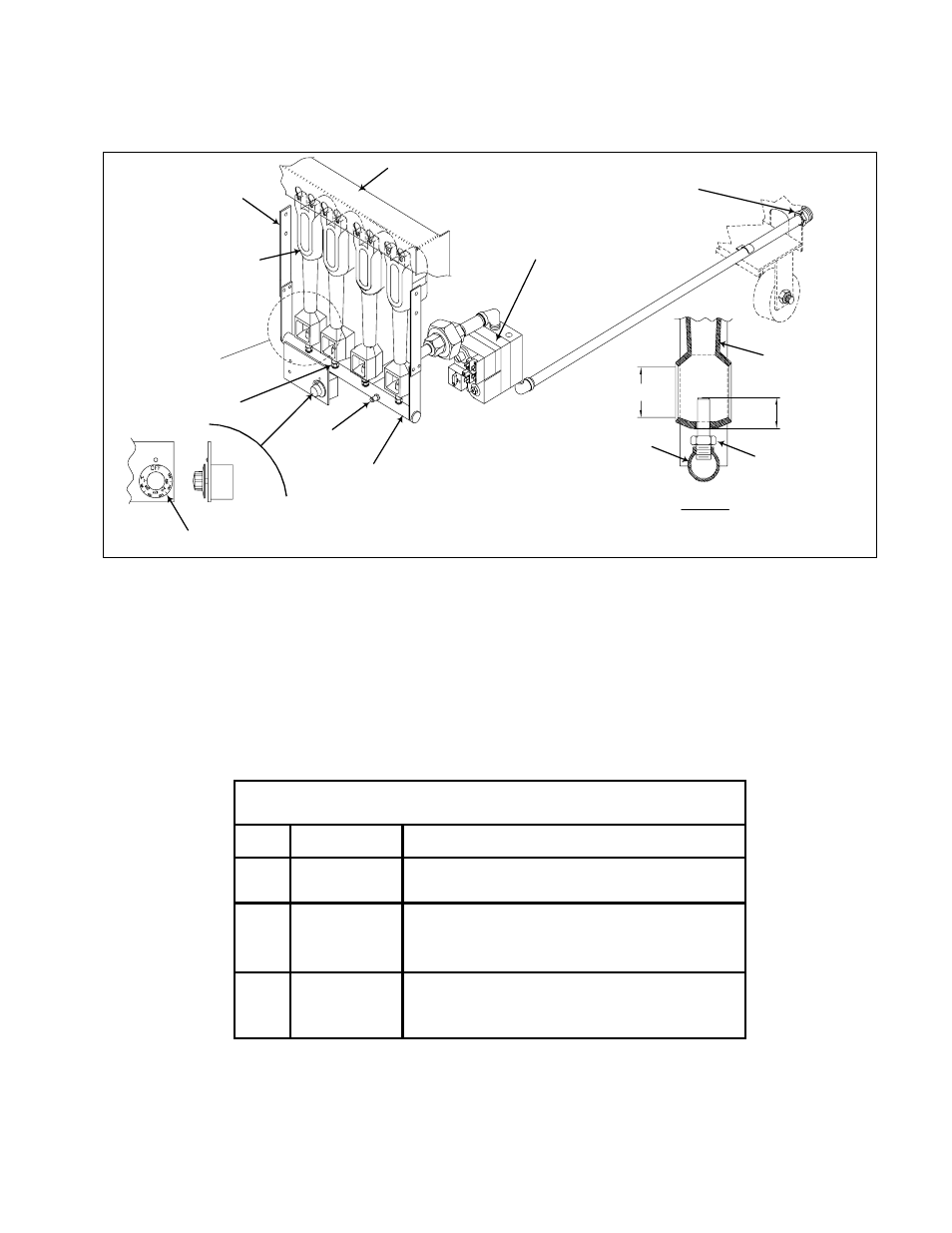

SR-52 Series gas valve, burner and orifice locations.
