Wiring diagrams

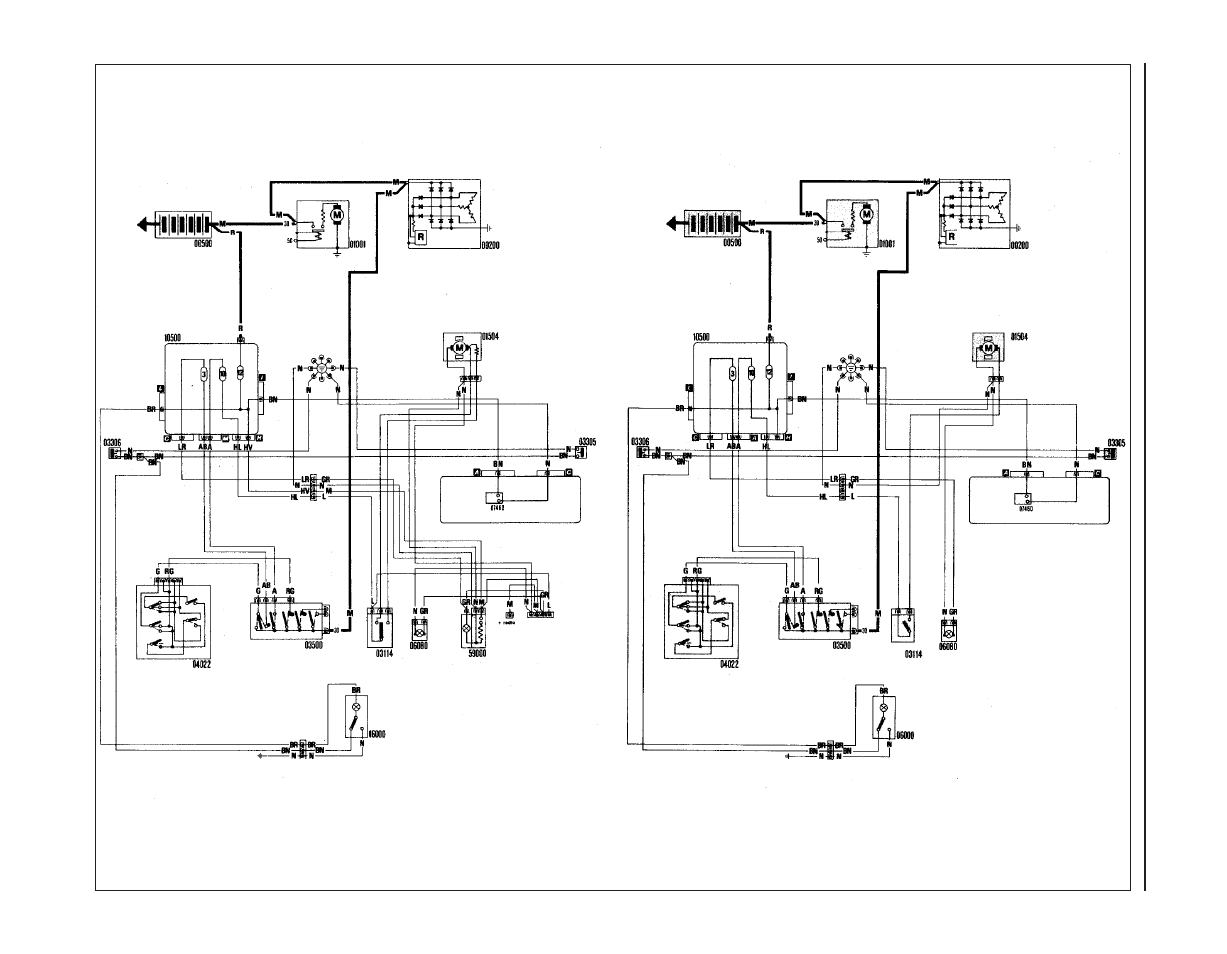

Wiring diagram 11 - courtesy lamps, heater fan, heater illumination, cigar

lighter, digital clock and radio (S and SX models)

Wiring diagram 12 - courtesy lamps, heater fan and heater illumination

(Comfort and ES models)
