7
Installation instructions

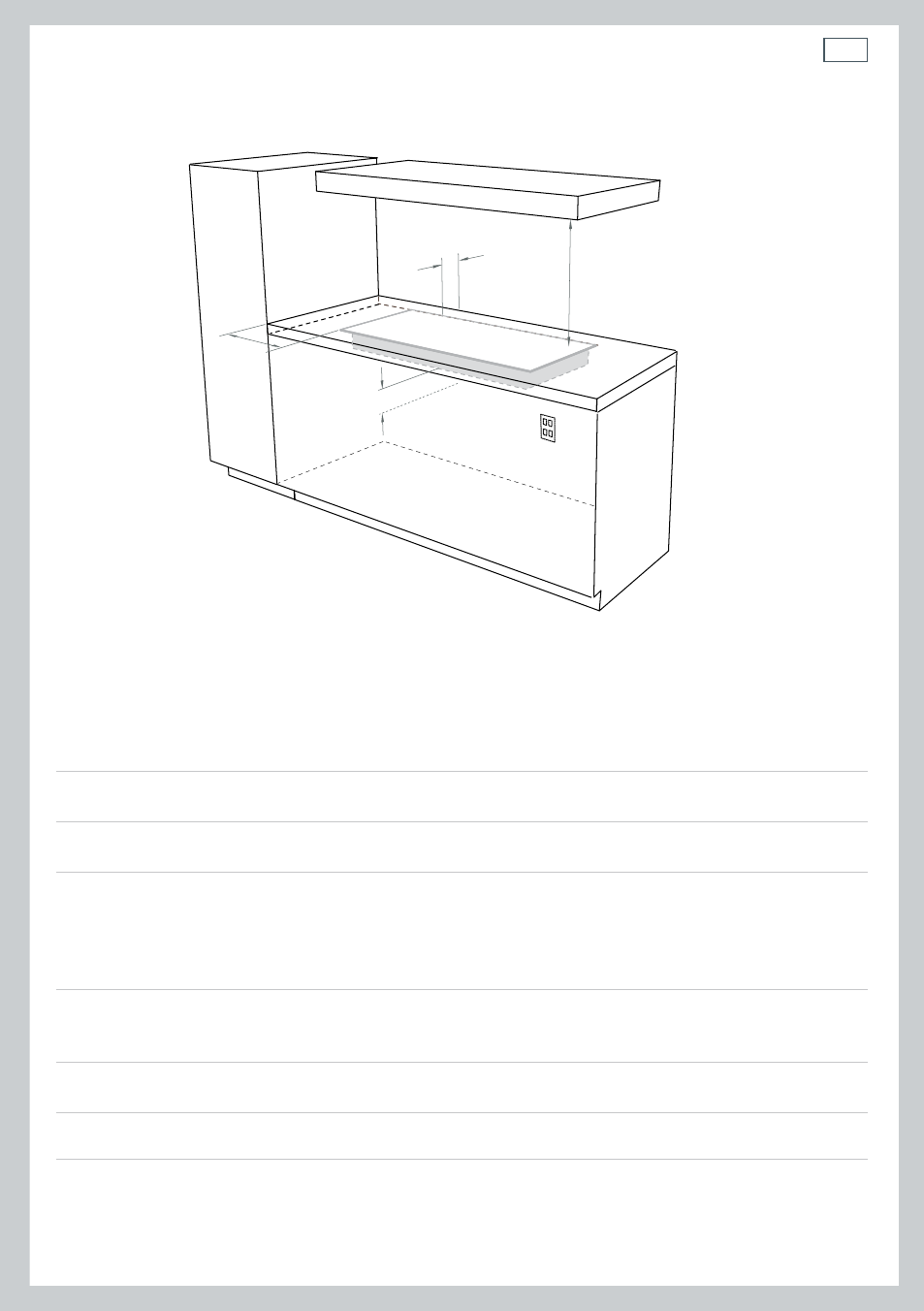

Clearances (mm)
C
G604DWFC
C
G905DWFC
C
G905DW
A
C
A
minimum clearance from left or right edge of cutout to:
nearest vertical surface*
140 140 100
B
minimum clearance from rear edge of cutout to:
nearest vertical surface
110 110 115
C
minimum clearance from pan supports to:
rangehood
any other overhead exhaust fan
downward-facing combustible surface (overhead cabinetry)
downward-facing tiled or fi re-resistant surface
650
800
650
600 650
800
650
600 650
800
650
500
D
minimum clearance below top of benchtop to:
nearest combustible surface
nearest non-combustible surface
60
60 60
60 81
81
E
Ensure there is an earthed power outlet within 900 mm of the rear right-hand corner of the
cooktop. The outlet should be accessible with the cooktop installed.
* There may be cabinetry at the minimum clearance ‘A’ on one side of the cooktop, but the other side (left or right)
MUST be kept clear.
B
C
A
D
E
