Installation instructions
Gas inlet (BS 21/ ISO 7-1 Rp 1/2”)
Fibre washer
Fibre washer
Fibre washer
Elbow
Elbow
Conical adaptor for elbow
(use only if required)
BS 21/ISO 7-1 R 1/2”
ISO 228-1 G 1/2”
BS 21/ ISO 7-1 R 1/2”

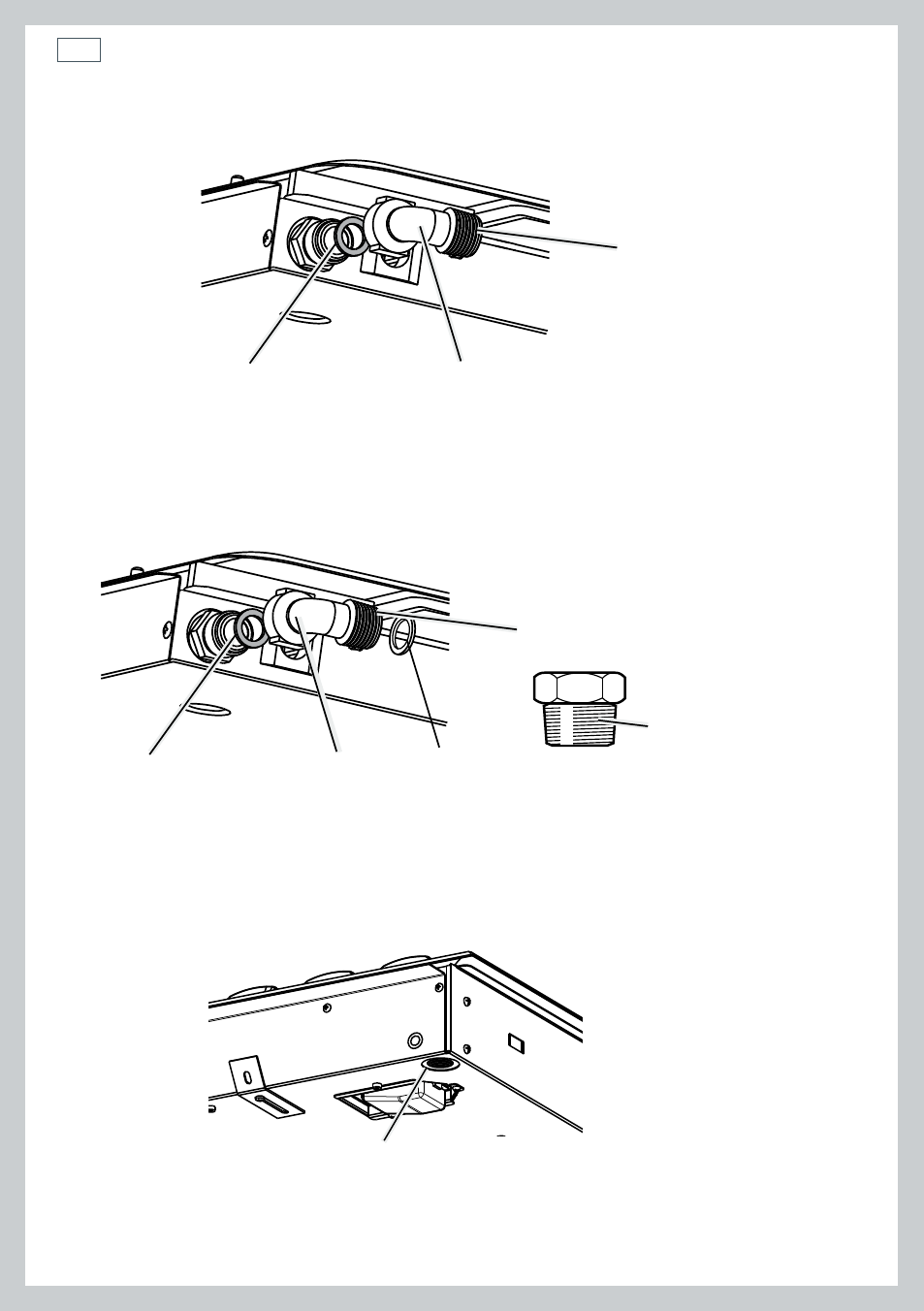

Fig.2a Gas connection to the cooktop:
elbow with 1/2” taper male thread (CG604DWFC and CG905DWFC models)
Fig.2b Gas connection to the cooktop:
elbow with 1/2” parallel male thread and conical
adaptor (if required) (CG604 DWFC and CG905DWFC models)
Fig.3 Gas connection to the cooktop
(CG905DWAC models)
