Frymaster GASFRYERSMODELS 35 - Manual (Page 69)

2-32
ITEM PART # COMPONENT
1 106-4430SP Flue Assembly, MJ35
2 900-3267 Flue Deflector Box Assembly
3 806-4168SP Combustion Chamber, Front
* 106-5898 Front Baffle Assembly (Front Flush Full-vat)
4 809-0409 Screw, Pilot Light Cover
5 810-0647 Holder, Pilot Light Cover Screw
6 900-1090 Cover, Pilot Light (with sight-glass, 823-5302)
7 823-0078SP Combustion Chamber, Side
* 826-0861 Kit, Insulation (cut to fit)
8 826-1374 Screw, #10 x ½” Washer Hex Head
9 809-0173 Clip, Tinnerman
10 809-0170 Screw, #14 x ¾” Slotted Pan Head
* 210-0681 Probe Guard
* 220-0927 Air/Heat Shield, 31”
* 220-0928 Air/Heat Shield, 15 ½”
* Not illustrated.

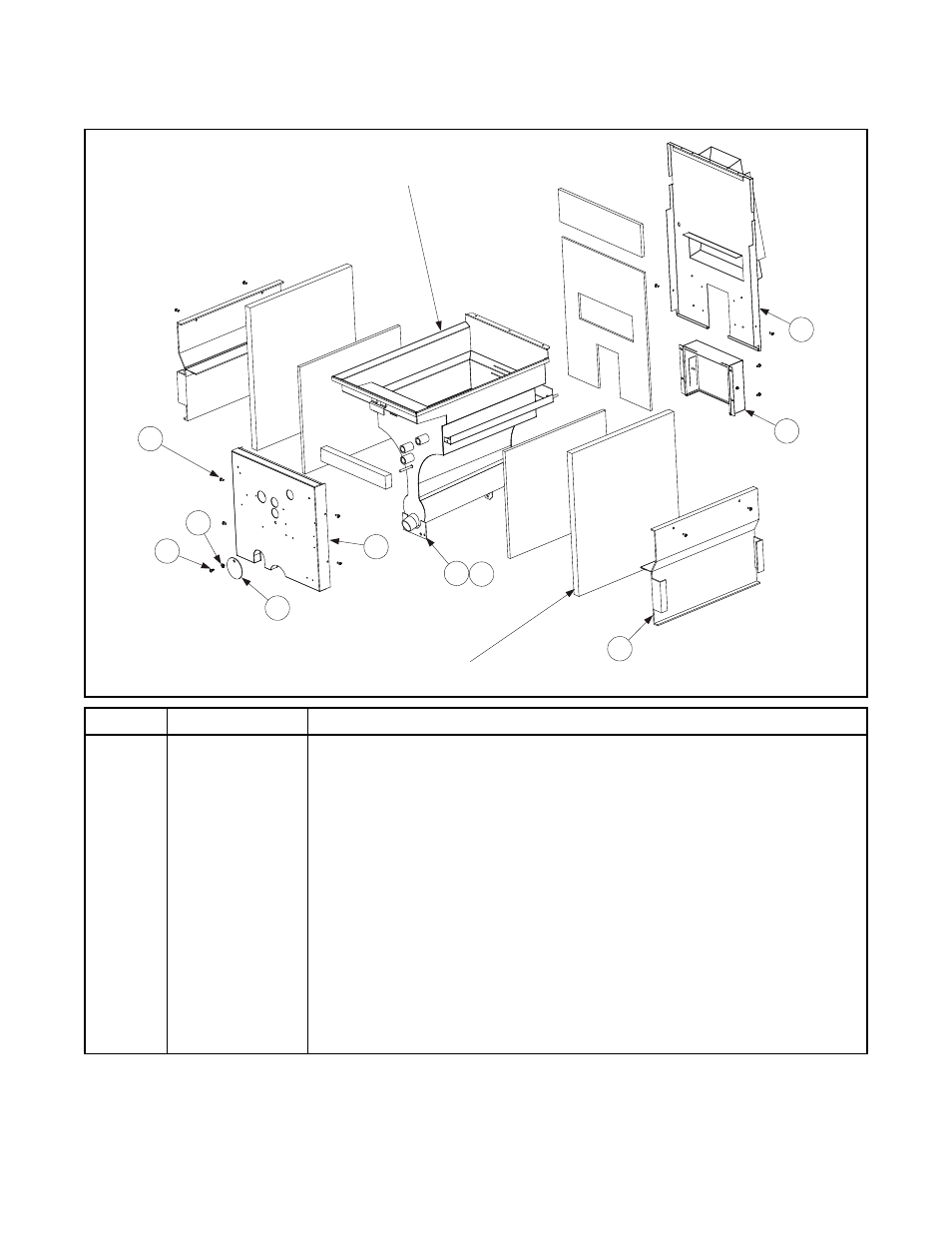

2.13.2 MJ35 Frypot Cabinetry
Frypot assemblies located in Section 2.12.
All insulation is included in 826-0861 and should be cut to fit.
7
10
4
3
9
5
6
8
2
1
