Swivel Bracket
Left Handlebar

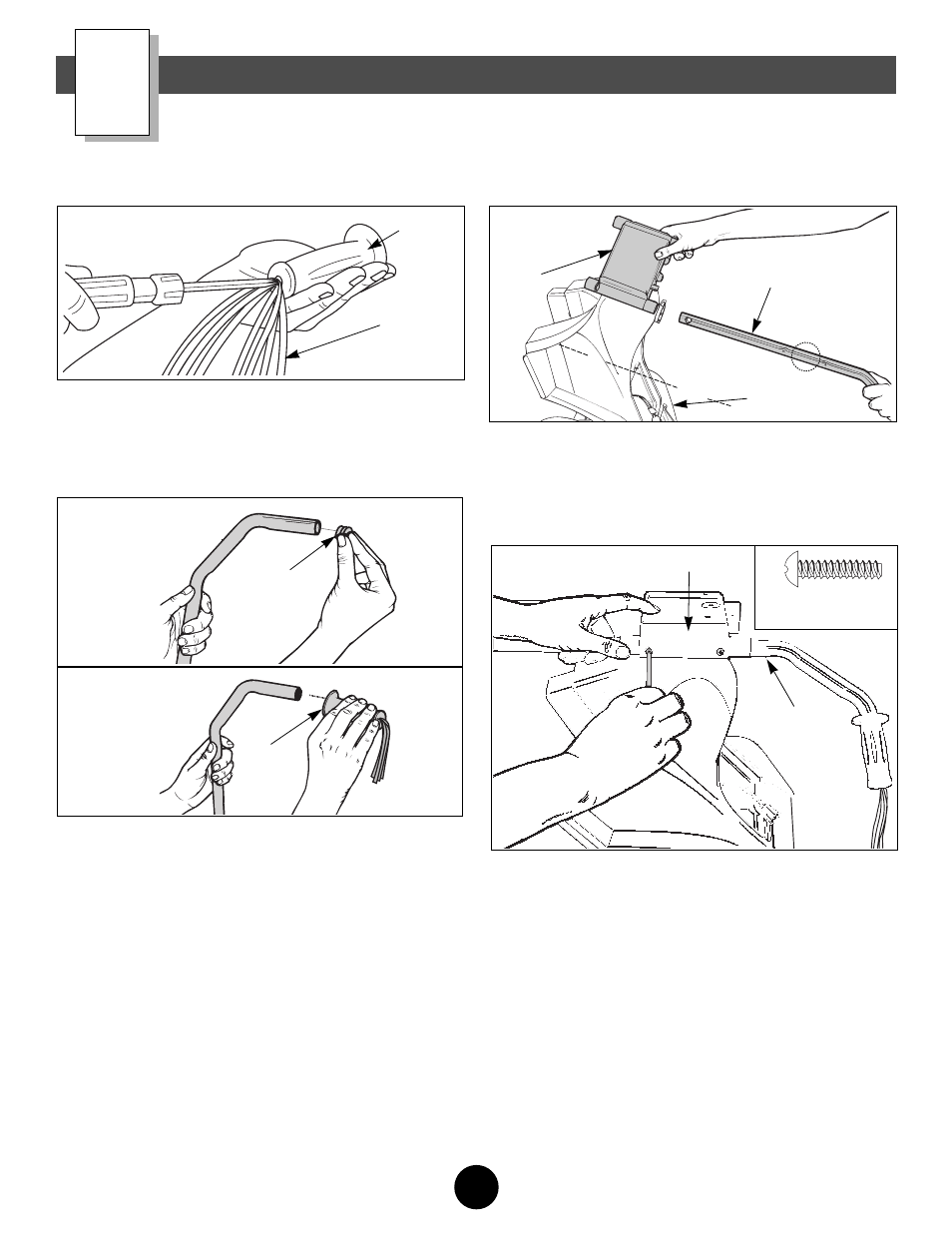

• Stand the vehicle body on its rear wheels.
• Slide the left handlebar through the holes in the left side
of the swivel bracket.
Note: The left handlebar is marked “L”; the right handlebar
is marked “R”.
• Position the ribbed end of a handlebar plug against the
top end of a handlebar.
• Push firmly to insert the handlebar plug into the end of
the handlebar.
• Moisten a handgrip with warm water.
• Slide the handgrip onto the end of the handlebar.
• Repeat this procedure to attach the other handlebar
plug and handgrip to the other handlebar.
Do not omit any steps. Please set aside at least 30 minutes for assembly.
9
2
• Using the tip of a slotted screwdriver, press the metal
retainer on a handgrip streamer into the hole in a
handgrip, as shown.
• Repeat this procedure to attach the other handgrip
streamer to the other handgrip.
• Align the screw holes in the left side of the swivel brack-
et with the screw holes in the left handlebar.
• Insert two #8 x 3 /
4
" screws into the left handlebar.
• Tighten each screw with a Phillips screwdriver. Do not
over-tighten.
• Repeat steps 3 and 4 to assemble the right handlebar
to the vehicle body.
4
1
Assembly
F
3 Handgrip
Handgrip
Streamer
Handlebar
Plug
Hand
Grip
L
Swivel
Bracket
Left Handlebar
Vehicle Body
#8 x 3 /
4
" Screw – 2
Shown Actual Size
