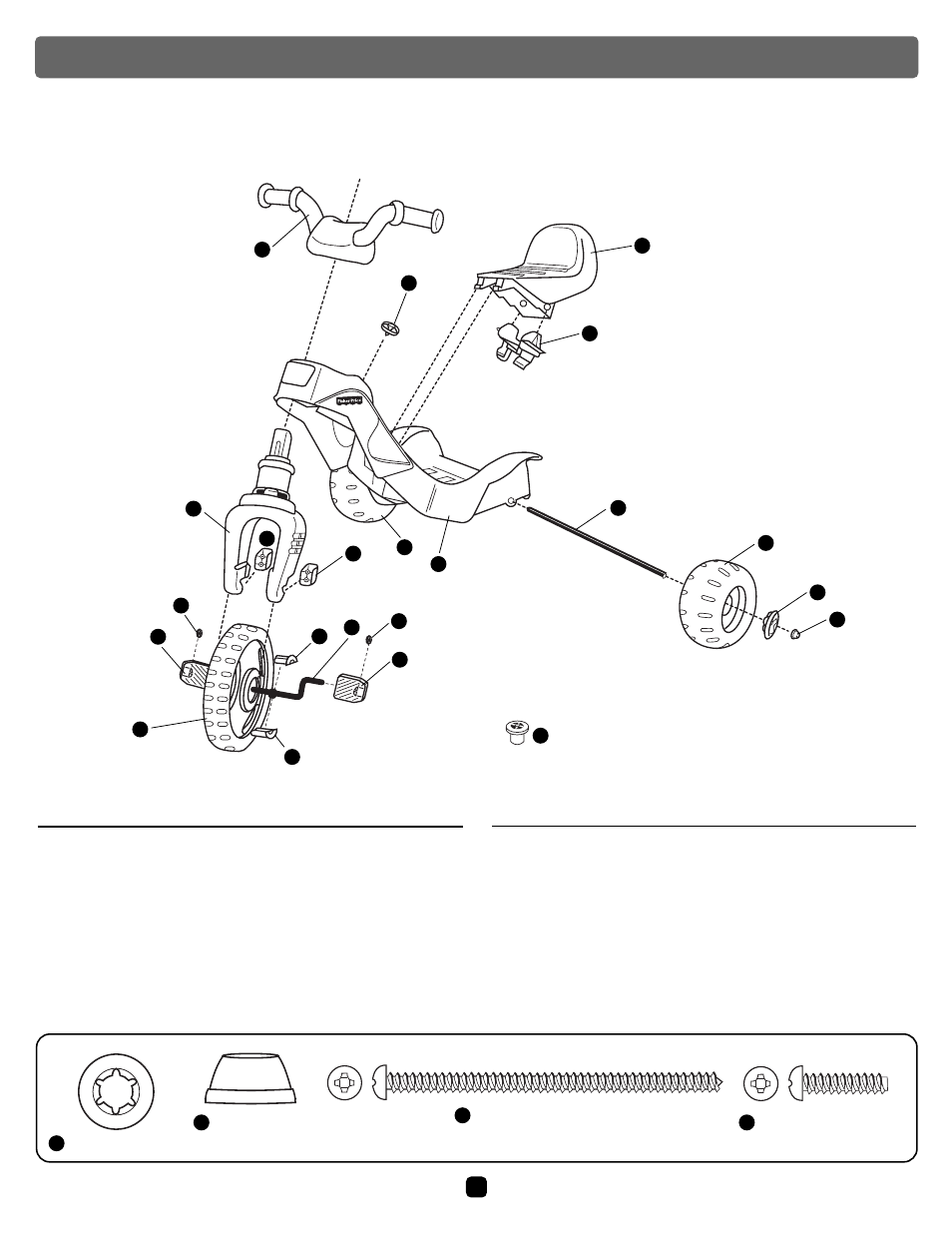

Illustration
Number Part Description Quantity
1 Front Wheel 1
2 Pedal Hub 4
3 Pedal Axle 1
4 Pedal 2
5 Lock Washer 2
6 Fork 1
7 Pedal Axle Cover 2
8 Frame 1
9 Handlebar 1
10 Gas Cap 1
Illustration
Number Part Description Quantity
11 Seat 1
12 Seat Retainer 1
13 Rear Wheel 2
14 Straight Axle 1
15 Hubcap 2
16 Cap Nut 2
17 Cap Nut Assembly Tool 1
18 #8 x 3" Screw 1
19 #8 x 3 /
4 " Screw 4
Label Sheet (not shown) 1
1
7
7
2
2
12
13
14
• Please save all packaging material until assembly is complete to ensure that no parts are discarded.
• If you are missing a part, please call us toll-free at 1-800-432-KIDS, rather than return this product to the store.
• Please wipe each part with a clean, dry cloth before assembly.
Parts
10
15
16
13
4
5
5
5
#8 x 3" Screw – 1 18
#8 x 3 /
4
" Screw – 4 19
(ALL SHOWN ACTUAL SIZE ) Lock Washer – 2
Cap Nut – 2 16
