FTP-641MCL101/102

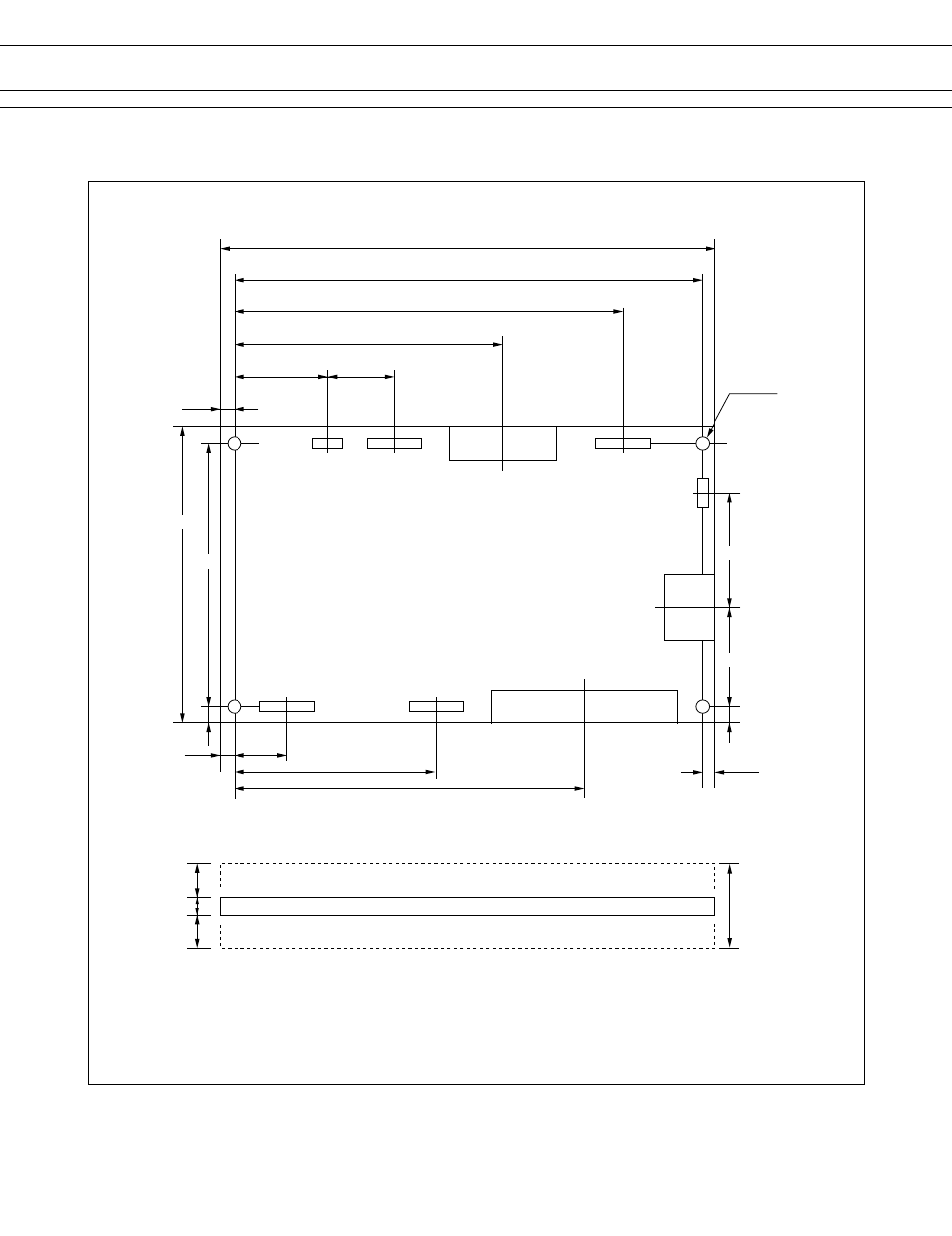

Interface board
Unit:mm
CN3 CN4
CN9
CN2
CN5 CN1
CN10
CN11
CN7
Height of devices side
Height of solder side
17
5
139.7
129.6
113.1
22.9
73.7
14.0
(5.1)
88.9
78.8
(5.1)
(5.1)
14.0
47.1
88.9
(5.1)
(5.1)
28.0
25.4
4—ø3.6
1.6 23.6
■ INTERFACE, COMMAND, OPTIONS
Please refer to the FTP-621DCL002/012 DATA SHEET for Interface, Command, and Options.
